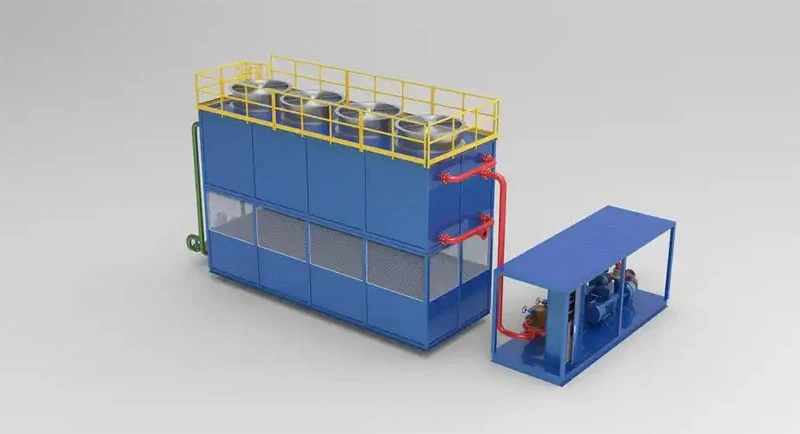

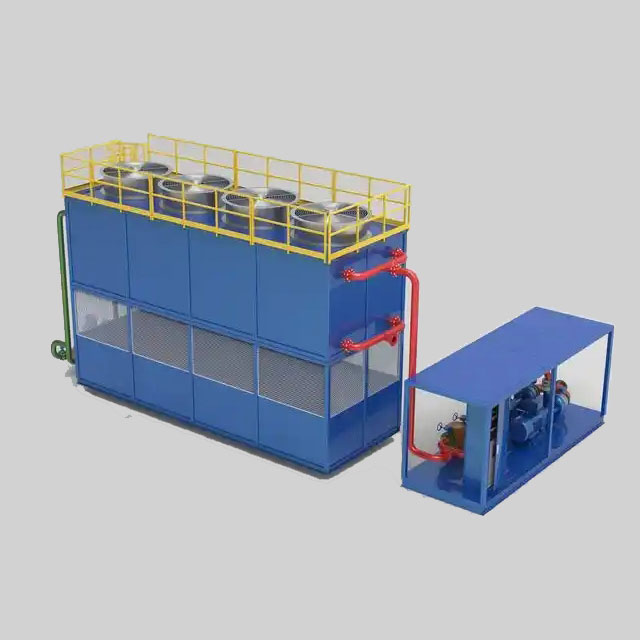

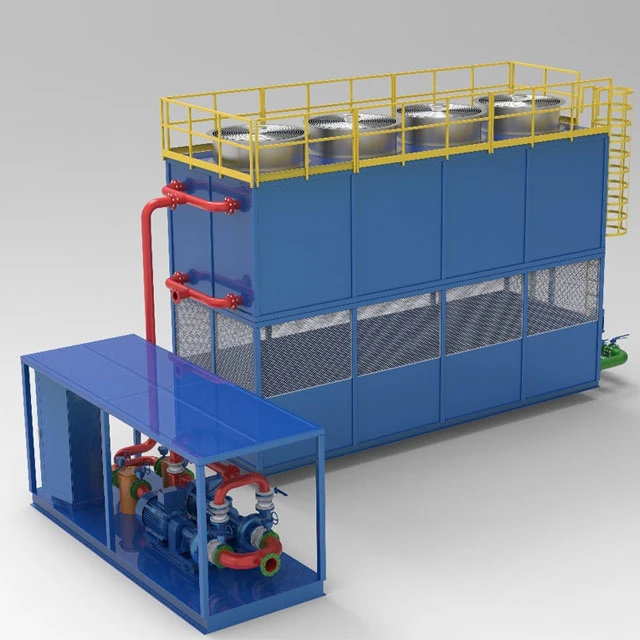

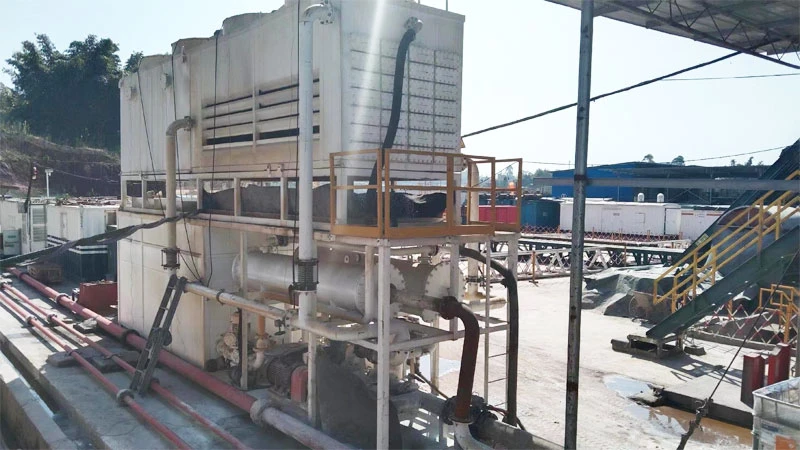

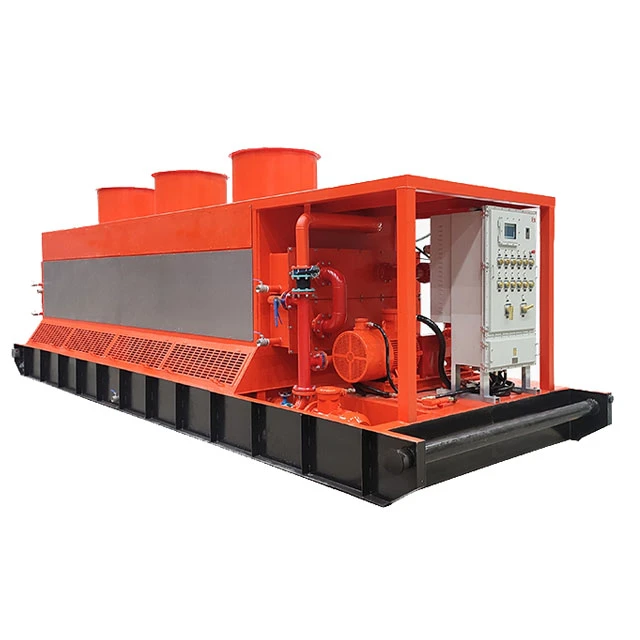

In deep high-temperature wells and directional well drilling operations, it is necessary to continuously cool down the bottom of the well with the circulation of mud. As the mud continues to circulate, the temperature of the mud will continue to rise. The mud cooling system, often referred to as a drilling mud cooler, provides an ideal solution for cooling the drilling mud.
Le refroidisseur de boue de forage available on the market generally adopts air-cooling, water-cooling, or a combination of both. Taking into account the specific conditions at the drilling site, our company customizes energy-efficient, autonomously developed cooling systems that feature automatic control for higher efficiency.
Mud Cooling System Technical Parameters
| Modèle | Processing Capacity | Temperature Drop | Puissance |
| HNJLQ120 | 120m³/h | 20-30° | 172Kw |
| HNJLQ200 | 200m³/h | 20-30° | 338Kw |
Technical advantages of the drilling mud cooler
1. The structure adopts a plate heat exchanger, which has high heat transfer efficiency and a small footprint.
2. Wide range of heat transfer temperature difference, capable of two-stage heat transfer.
3. Special materials with strong resistance to corrosion from sea salt are selected.
4. It has the advantages of compact structure, high heat transfer efficiency, low operating costs, and easy installation and maintenance.
5. Intelligent control is used to real-time collect data such as temperature, flow rate, and pressure.
