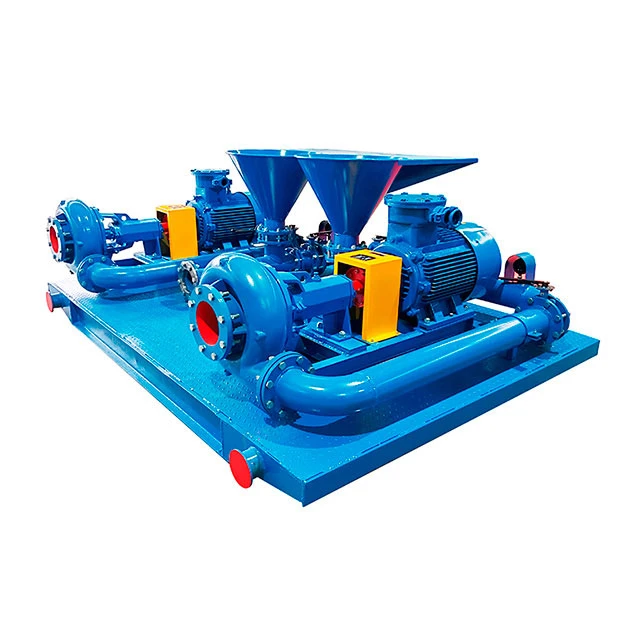

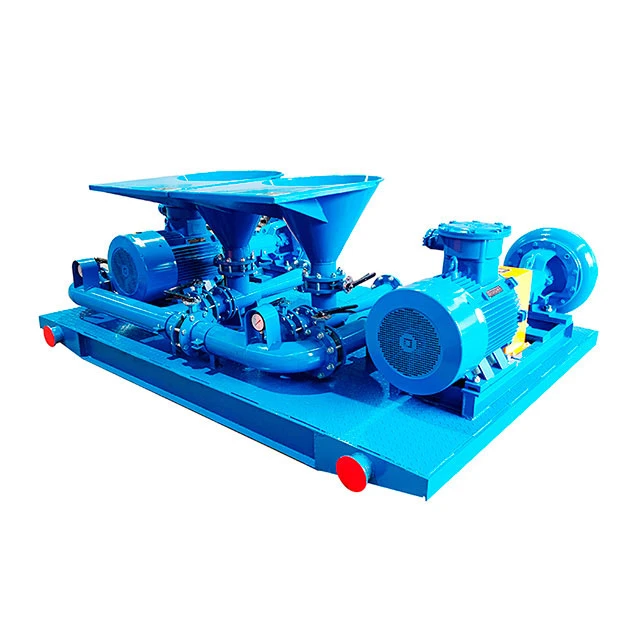

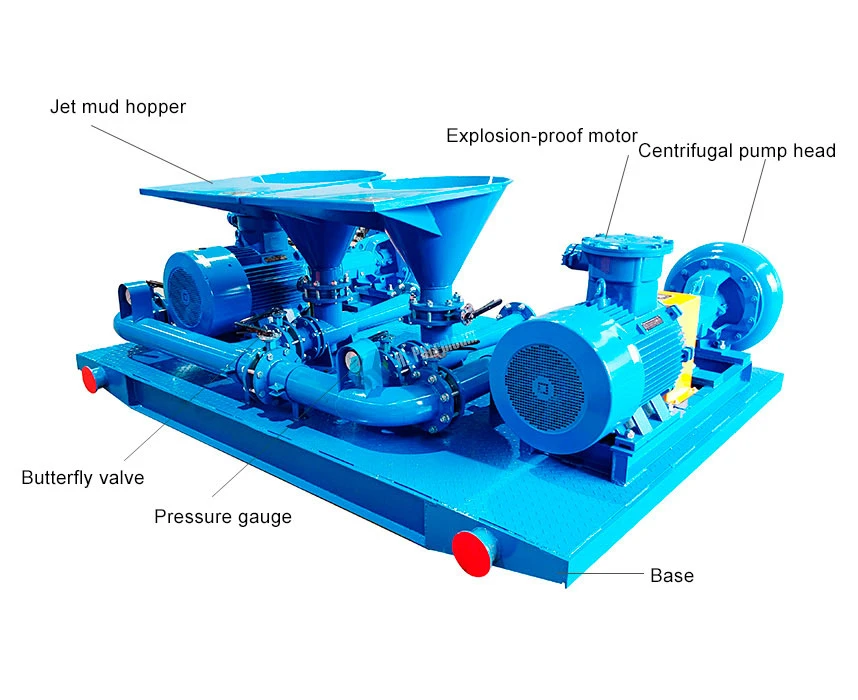

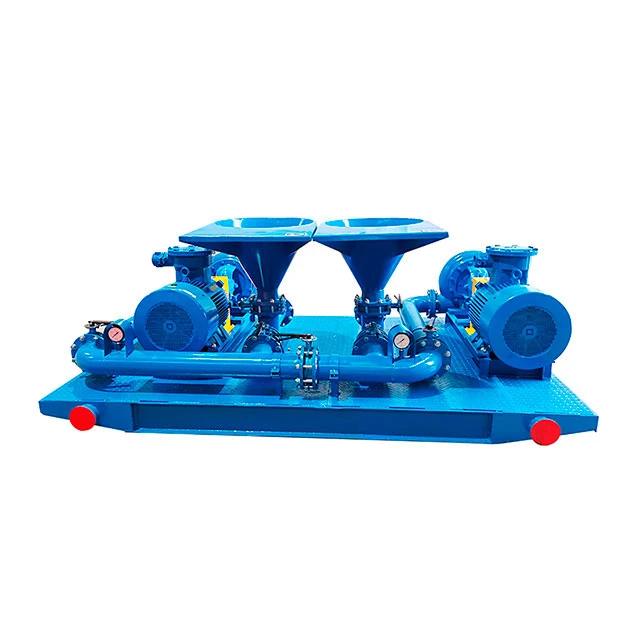

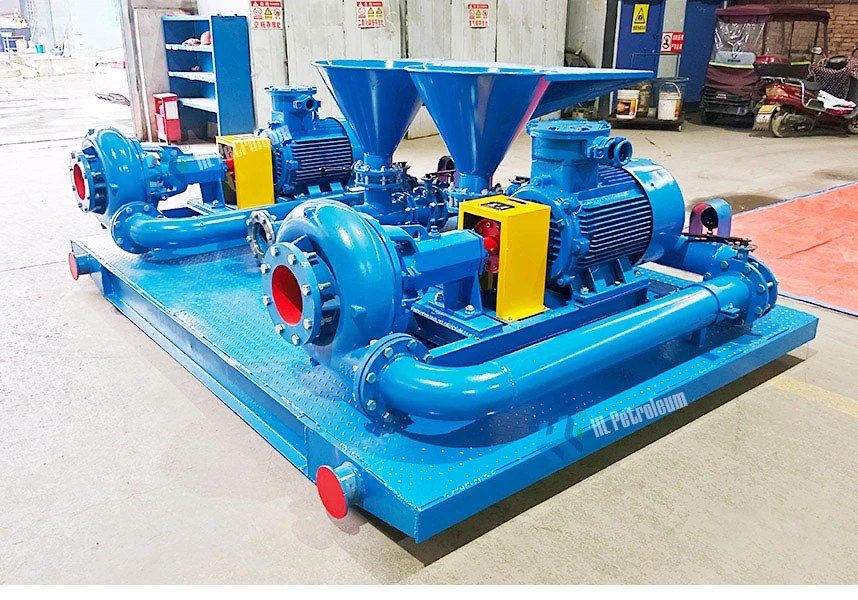

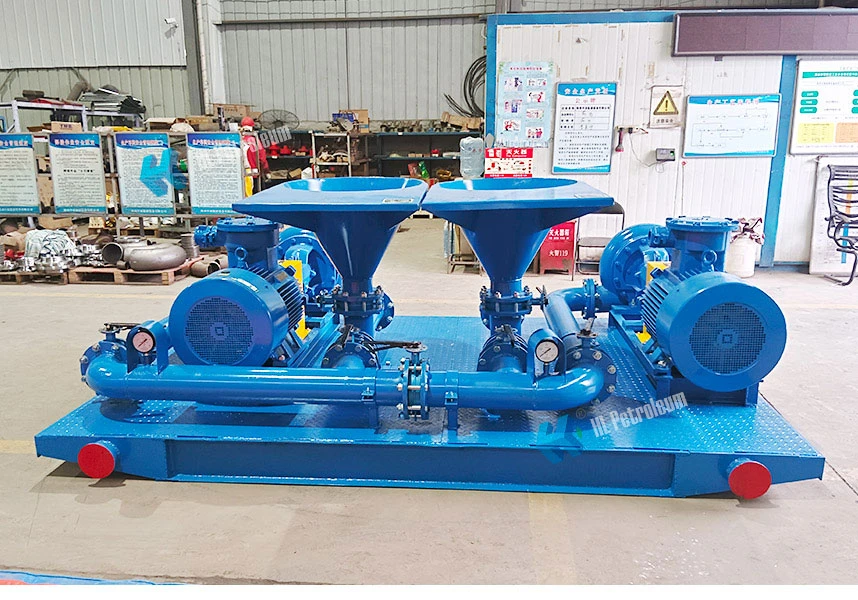

The 2HHQ150 dual mud mixing hopper unit consists of two centrifugal sand pumps and two jet mixing funnels and manifold valves. The two pumps can be switched and communicated through the valve group to ensure the continuous operation on site.
This mud mixing hopper unit is a special equipment for preparing or weighting drilling mud. It can disperse and evenly add drilling materials such as bentonite, barite, polymer, etc. into the drilling fluid, thereby changing important performance parameters such as mud density, viscosity, and water loss.
Advantages of drilling fluid mixer
1. The sand pump adopts mechanical seal, no leakage, and reduces environmental pollution.
2. The flow-through parts are made of thickened wear-resistant materials to extend the service life.
3. Strong climbing ability, high degree of automation, and labor cost saving.
4. The motor and electrical equipment are all outdoor explosion-proof, with explosion-proof grade BT4 and protection grade IP55, ensuring safety for on-site use.
Technical parameters of dual jet mud mixer
| Model | 2HHQ150 |
| Matched Sand Pump | SB8×6(55kw)×2 |
| Capacity | 500m3/h |
| Inlet Diameter | 200mm |
| Output Diameter | 150mm |
| Nozzle Diameter | 30mm |
| Dimension(mm) | 3105*2257*1178 |
| Weight(kg) | 2300 |
