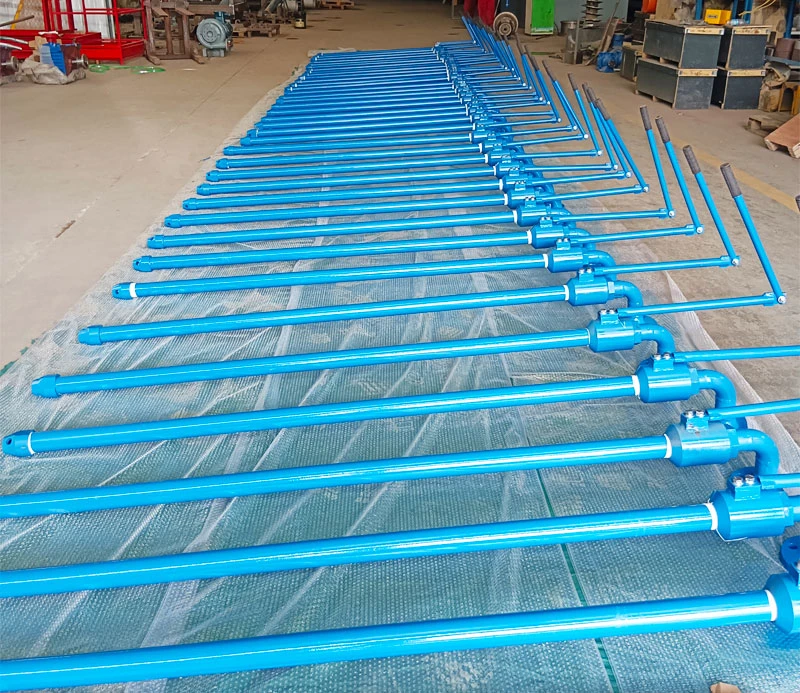

A batch of mud guns were sent to the UAE

A few days ago, a batch of mud guns were sent to the UAE.  The factory completed the work as scheduled and shipped the guns yesterday. This batch of mud guns has good spraying effect, large cleaning area, simple structure, flexible operation, easy use, and can work at 300° without dead angles.

The mud guns we shipped to the drilling team this time are 2 inches, and the technical parameters are as follows

A batch of mud guns were sent to the UAE technical parameters

Model: HNQ50

Working pressure:  <6.4MPa

Number of nozzles:  1~3

Rotation angle:  300°

Mud guns, also called drilling fluid guns, are special equipment to prevent mud from settling in mud tanks. They can flush and stir the dead angles in the mud tanks that the mud agitator cannot stir to prevent mud from settling in the mud tanks.

HL Petroleum specializes in the production of mud mixing equipment, mud agitators, mud guns, jet mixing devices, etc. Friends in need can contact us.

Installation, commissioning and operation of mud gun

1. The mud gun directly inserts into the drilling fluid tank, and it connects its inlet flange to the mud gun pipeline. The sand pump’s outlet should connect to the mud gun pipeline to provide drilling fluid to the mud gun.

2. The inlet of the mud gun connects with a 2″ flange.

3. After installation, turn the mud gun to check whether it is flexible.

4. Supply drilling fluid to the mud gun and check the sealing and rotation flexibility.

5. When it is necessary to sweep the bottom of the tank, supply drilling fluid to the mud gun through the pump and operate the rotation adjustment lever at the same time.
