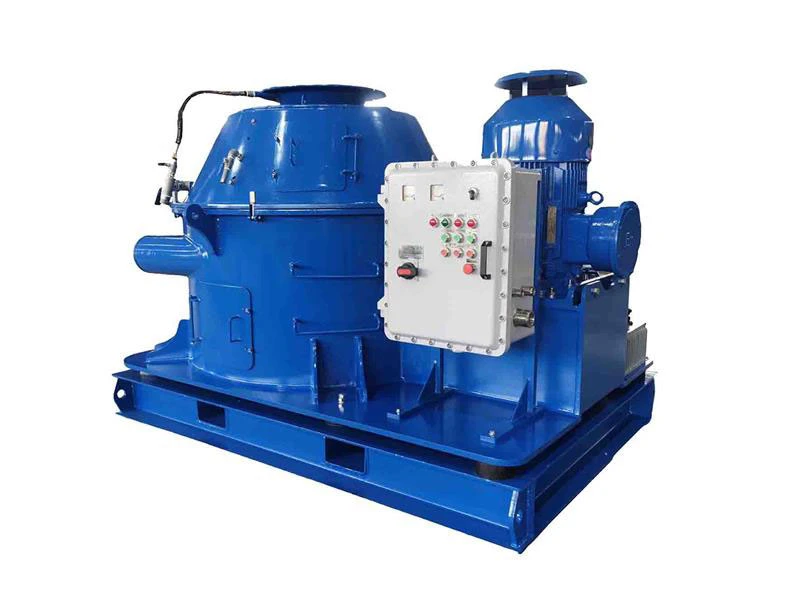

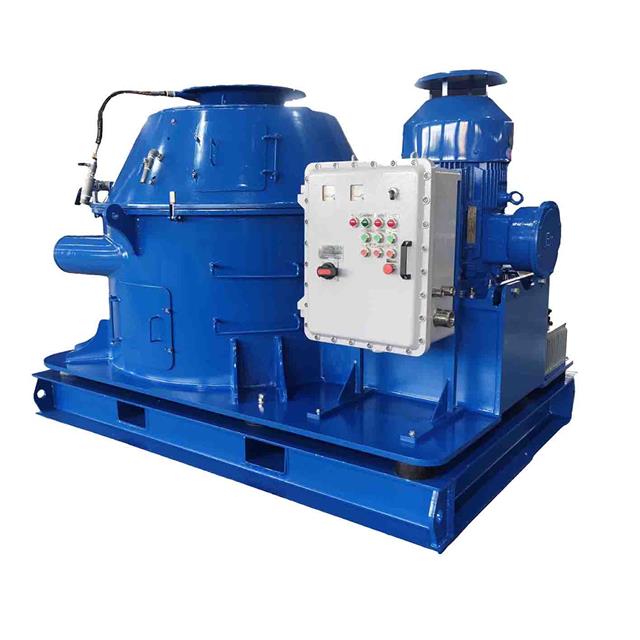

The cuttings dryer is a single-stage continuous working vertical scraper discharge centrifuge. The drill cuttings dryer mainly uses centrifugal force to separate the oil-based drill cuttings and the oil and water in the composite-base drill cuttings, so as to achieve the purpose of reducing harmful substances and recovering useful drilling fluid.
Cuttings Dryer Technical Parameters
Model | HSG700 | HSG1000 |
Capacity(Ton/h) | 5~15 | 30~50 |
Feeding particle size(mm) | 0~13 | 0~13 |
Screen diameter(mm) | 720 | 930 |
Rotation speed(rpm) | 700 | 900 |
G-Force(G) | 621 | 420 |
Motor power(KW) | 22 | 55 |
Drive mode | Soft starting | Soft starting |
Dimension (mm) | 2200×1690×2150 | 3420×2395×2620 |
Weight(KG) | 3500 | 4350 |
>>Send an Enquiry [email protected]<<
Drilling Cuttings Dryer Features
1. It features a large processing capacity and strong anti-clogging capabilities, and its integrated design makes installation and transportation easier.
2. The integrated lubrication station provides dual lubrication and heat dissipation, simplifying installation and maintenance.
3. The high-hardness spray-coated scraper and high-strength, wear-resistant screen basket ensure long service life.
4. The spindle speed control system features variable frequency (dual frequency conversion) with high adaptability, electronic logic control, and multiple safety features.
5. Marine anti-corrosion coating and process ensure it is suitable for use in harsh outdoor environments.
Delivered Cases

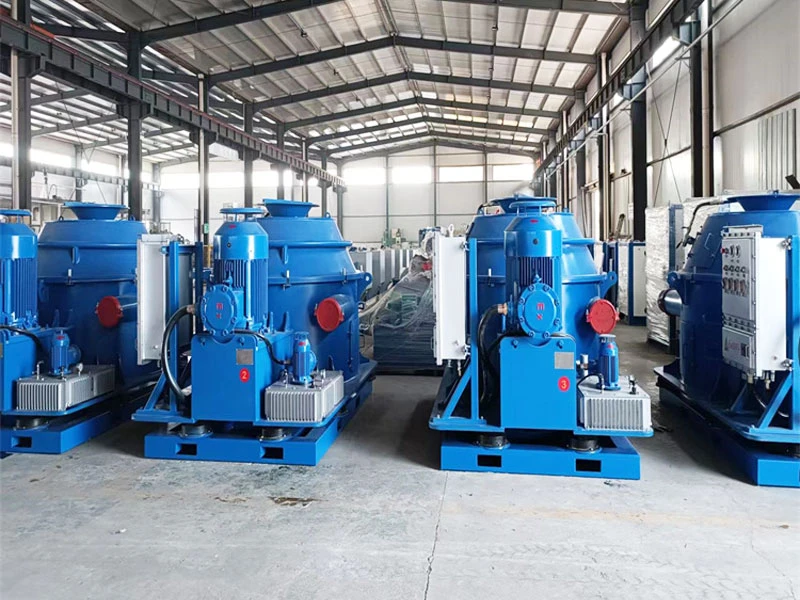

HL Petroleum actively provides reliable solutions for drilling waste treatment and environmental protection projects in the oil drilling industry. Here is an using site of our HSG700 drilling cuttings dryer.
The oil content of the mud after treatment is less than 10%.
