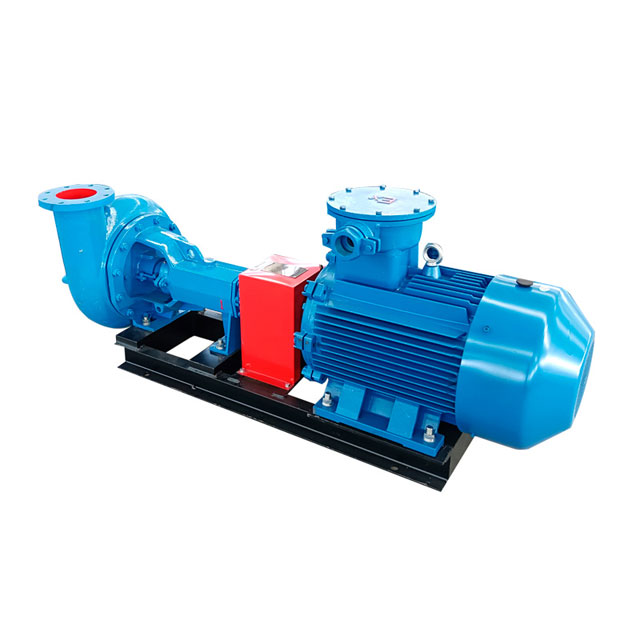

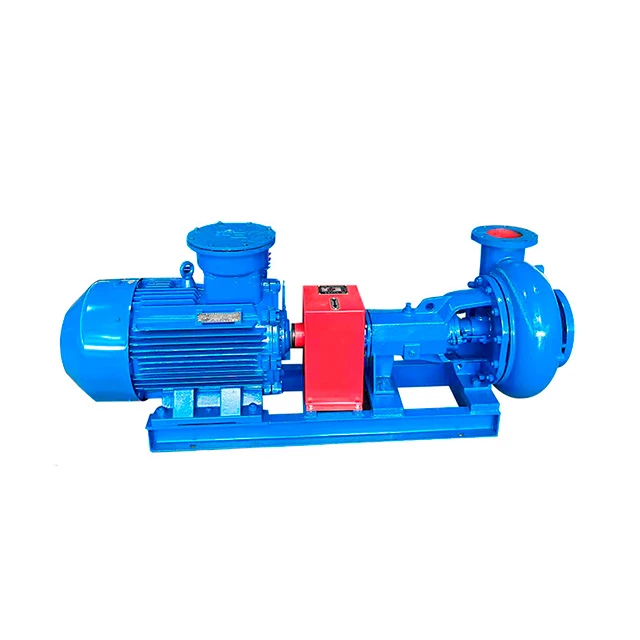

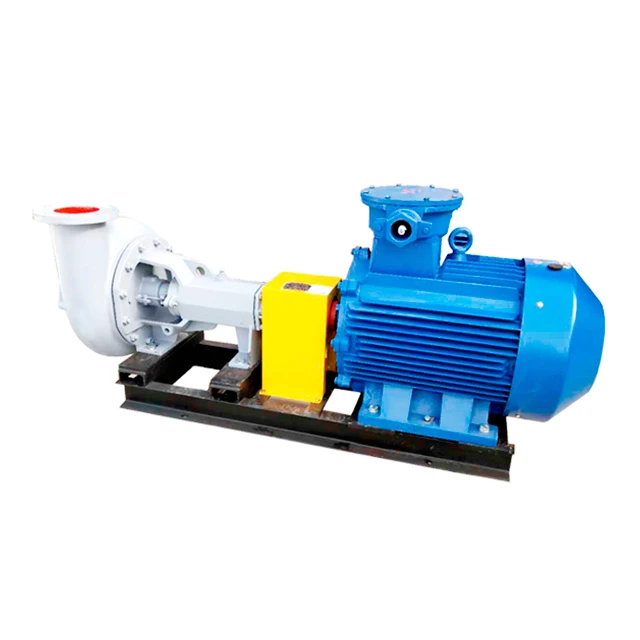

Desander Pump

The desander pump is a newly developed accessory pump specifically designed for oil and gas exploration equipment. It utilizes a mechanical seal and an open structural design, improving the pump’s flow rate and efficiency, while extending its service life.

Desander Pump Features

1. The manufacturer casts the pump casing from a wear-resistant ductile iron alloy with a coaxial, thickened design. This reduces vibration and wear, resulting in enhanced wear resistance.

2. The manufacturer casts the impeller from a wear-resistant ductile iron alloy with an open, anti-loosening design, effectively reducing the load on the shaft and bearings and extending the impeller’s service life.

3. We use bearings from internationally renowned brands, ensuring stable operation and a long service life. Replaceable sleeves prevent shaft wear.

4. A high-quality mechanical seal prevents leakage and reduces maintenance time.

5. The baseplate utilizes a one-piece cast baseplate for more stable operation and extended service life.

>>Send an Enquiry [email protected]<<

Desander Pump Technical Parameters

Model	Capacity (m³/h)	Head (m)	Speed(rpm)		Efficiency (%)	Power (kW)		Weight (kg)	Dimensions (mm)
/	/	/	50 Hz	60 Hz	/	Shaft power	Motor power	/	/
SB6 × 8J – 13	240	37	1480	1780	67	36	75	1130	2056×698×1022
SB6 × 8J-12½	200	36	1480	1780	66	29.7	55	1000	1996×698×972
SB6 × 8J – 12	200	33	1480	1780	64	28	45	850	1916×638×917
SB5 × 6J-12½	200	33	1480	1780	64	28	45	785	1806×528 ×884
SB5 × 6J – 12	180	31	1480	1780	63	24.1	37	760	1781×528×864
SB5 × 6J-11½	160	28	1470	1780	62	19.7	30	650	1746×528×844
SB5 × 6J – 11	140	22	1470	1780	62	13.5	22	545	1686×516×764
SB4 × 5J – 10	150	25	1470	1780	61	16.8	22	480	1600×510×705
SB4 × 5J – 9	93	20	1460	1760	58	8.8	15	400	1533×510×725
SB3 × 4J – 10	85	26	1460	1760	61	9.9	15	360	1405×443×682
SB3 × 4J-9½	80	23	1460	1760	61	8.2	11	340	1365×443×682
SB3 × 4J – 9	54	18	1440	1750	60	4.4	7.5	290	1245×443×650
SB2 × 3J – 10	55	22	1460	1760	60	5.5	11	320	1352×446×682
SB2 × 3J – 9	50	18	1440	1750	56	4.4	7.5	260	1232×446×650
SB2 × 3J – 8	40	16	1440	1750	54	3.2	5.5	245	1192×446×650
SB2 × 3J-7½	25	11	1440	1750	50	1.5	4	223	1161×446×600

Xi’an HL Petroleum Equipment specializes in the production of desander pumps. This desander pump is interchangeable with Western sand pumps and mission pumps. Customers with such requirements can contact us.
