The drilling fluid jet mixer is the most commonly used liquid mixing device in oilfield drilling. The slurry mixing device can reduce the risk of blowout and can mix a large amount of weighting materials evenly in a short time. If there is no drilling fluid mixing device with good performance, serious consequences may occur.

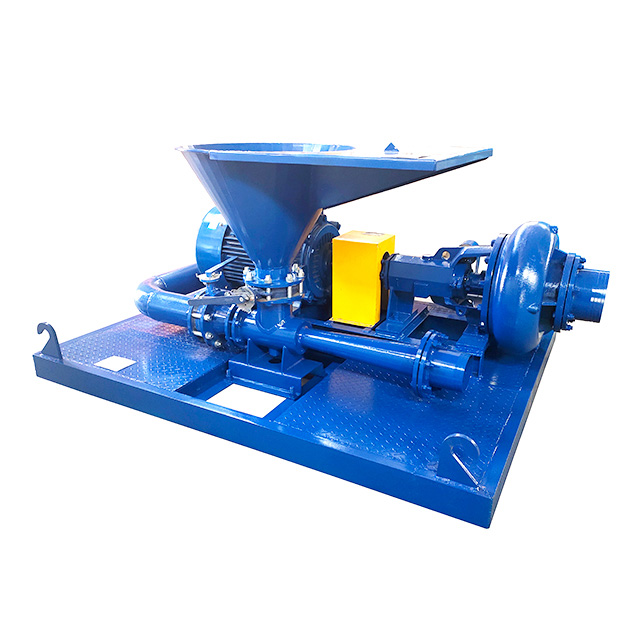

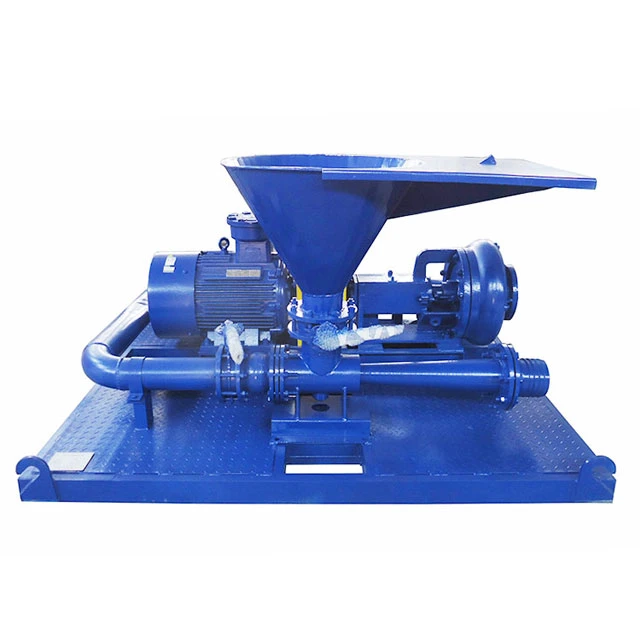

Xi’an HL drilling fluid jet mixer is mainly composed of nozzle, mixing chamber, Vendre pipe, feeding funnel and butterfly valve. After a lot of field practice research, the slurry mixing device developed by our company has the advantages of fast mixing speed, good mixing effect, simple operation and adaptability to more complex working environment.
HHQ125 drilling fluid mixer product parameters:
Matching sand pump: SB6×5 (45kW)
Processing capacity: 180m3/h
Slurry inlet diameter: 155mm
Slurry outlet diameter: 125mm
Nozzle diameter: 28mm
Overall dimensions: 2200*1700*1200mm
Total machine weight: 1200kg
