A drilling mud mixing equipment is a specialized device that prepares or increases the total volume of drilling fluid, and modifies its density, viscosity, and water loss. During oilfield drilling, you must add drilling fluid materials (such as bentonite and barite powder) and corresponding chemical additives (such as polymers) to a circulation tank. Direct addition of these materials and additives can cause significant precipitation or agglomeration, preventing a dispersed and uniform drilling fluid.

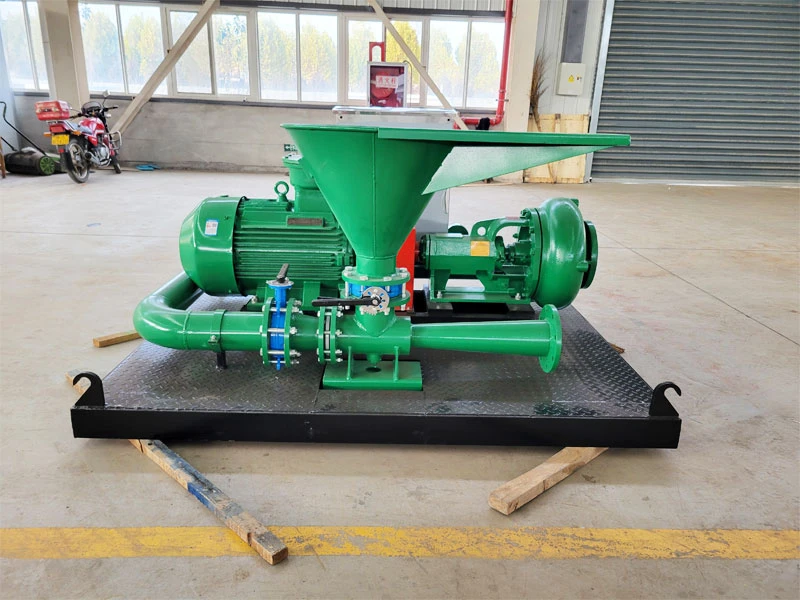

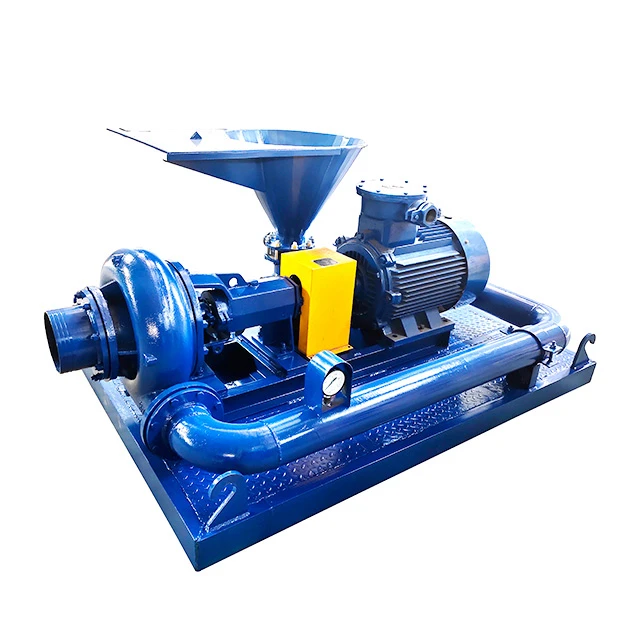

The drilling mud mixing equipment is used in conjunction with a solids control system for oil drilling. It can meet the requirements for adding weight and preparing drilling fluid for wells with depths ranging from 1,000 to 7,000 meters. The slurry mixer consists of a sand pump or shear pump and a jet mixing funnel connected by a manifold valve and mounted on a base. It offers reliable performance and easy transportation.>>Send an Enquiry [email protected]<<
HHQ150 Drilling Mud Mixing Equipment Product Specifications
| Model | HHQ150-50 | HHQ150-40 | HHQ150-30 | HHQ150-25 |
| Matched Sand Pump | SB6×8(55/75kW) | SB5×6(45kW) | SB5×6(37kW) | SB3×4(15kW) |
| Capacity | 240m3/h | 200m3/h | 120m3/h | 80m3/h |
| Work Pressure | 0.25~0.40MPa | 0.25~0.40MPa | 0.25~0.40MPa | 0.25~0.40MPa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 25mm |
| Dosing Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Dosing Density | ≤2.8g/cm3 | ≤2.4g/cm3 | ≤2.0g/cm3 | ≤1.5g/cm3 |
| Dosing Viscosity | ≤120s | ≤120s | ≤80s | ≤60s |
| Dimension(mm) | 2200*1700*1200 | 2200*1700*1200 | 2000*1650*1100 | 1800*1600*1000 |
| Weight(kg) | 1300/1500 | 1200 | 1100 | 700 |

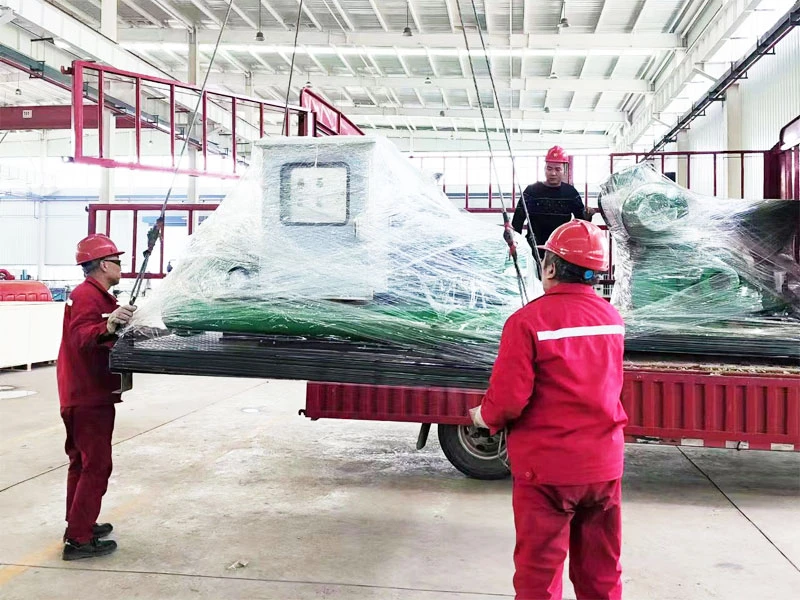

HHQ150 Jet Mud Mixer Shipping Images
