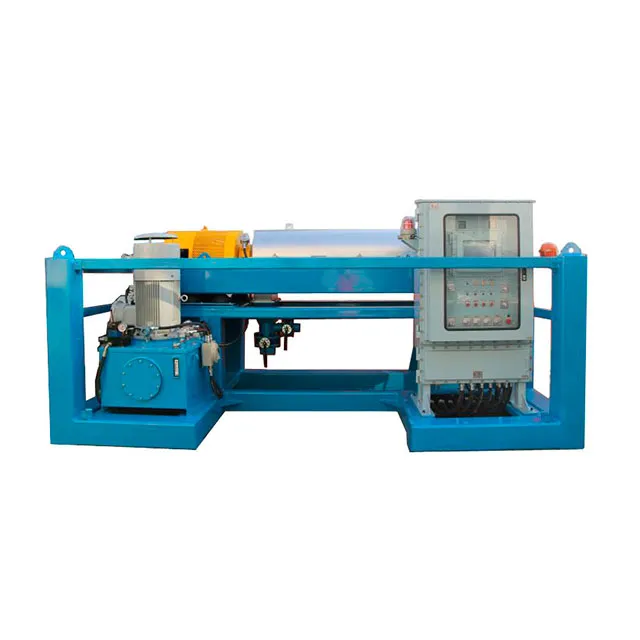

The drum and propeller hydraulic drive system of the full hydraulic centrifuge drives the oil pump through a motor to form two oil circuits to drive the hydraulic motor and the hydraulic differential. The advantages of the full hydraulic drive centrifuge make it suitable for aggravated mud under high temperature environment separate. The compact single skid-mounted structure of the fully hydraulic decanter centrifuge makes it easier to install on site.
Full Hydraulic Drive Centrifuge Features and Advantages
1. High-quality stainless steel raw materials
2. Wear-resistant protective treatment for the helical blades
3. High-precision machining
4. Convenient and reliable operation
5. Advanced dynamic balancing testing
6. Customization services available
Technical Specifications
| Model | LW355×1257Y-N |
| Bowl Diameter | 355mm |
| Bowl Length | 1257mm |
| Max Capacity | 946 L/min |
| Max Speed | 3200rpm |
| Operating Speed | 2900rpm |
| Max G-Force | 3180G |
| Drive Type | Hydraulic drive |
| Power Unit | 37kW |
Applications and Effects
1. The biggest advantage of a fully hydraulically driven centrifuge is its ability to separate weighted slurries in high-temperature environments.
2. The compact, single-skid-mounted structure of the fully hydraulic horizontal screw centrifuge makes it easier to operate and install in the field.
3. The hydraulic drive enables it to provide high power and high torque, making it particularly suitable for high-power applications.
