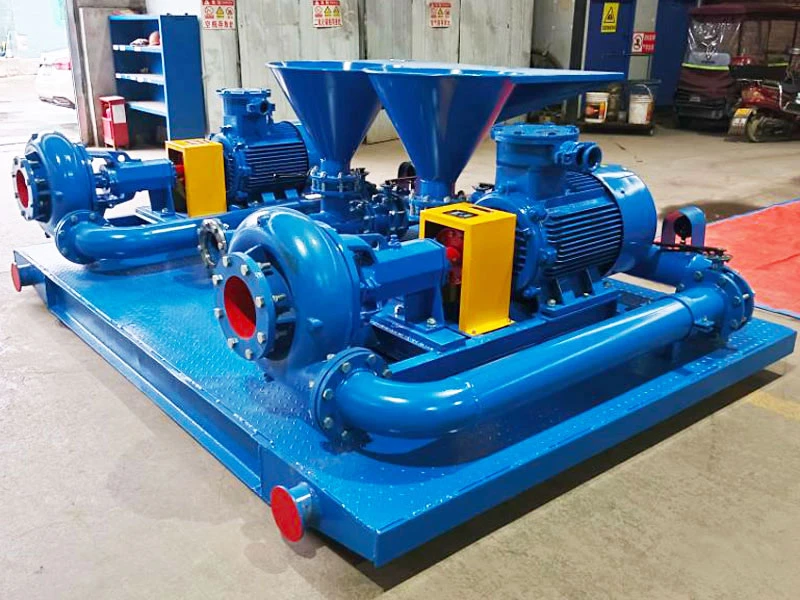

The HHQ series jet mud mixer works with oil drilling solids control equipment. It primarily configures and weights drilling fluid, adjusting its density, viscosity, and water loss. This equipment is particularly effective when used with a shear pump. While conventionally manufactured as a single-joint structure, we can design it as a double-joint jet mixing mixer for larger mud processing volumes.
Jet Mud Mixer Technical Parameters
| Model | HHQ-80 | HHQ-100 | HHQ-125 | HHQ-150 |
| Capacity | 80m³/h | 120m³/h | 180m³/h | 240m³/h |
| Motor Power | 15KW | 30KW | 45KW | 55KW |
| Inlet Diameter | 100mm | 125mm | 150mm | 200mm |
| Output Diameter | 80mm | 100mm | 125mm | 150mm |
| Nozzle Diameter | 25mm | 28mm | 32mm | 38mm |
| Dimension | 1800×1600×1000mm | 2000×1650×1100mm | 2200×1700×1200mm | 2200×1700×1200mm |
| Weight | 700kg | 1100kg | 1200kg | 1300kg |
The above are several models of jet mixers that we often produce for clients. In addition, if you have requirements for the size and motor power of the centrifugal pump, or the processing capacity of the jet mixing hopper, please let us know. HL Petroleum is an OEM manufacturer of jet mixing device,can produces as your demands.>>Send an Enquiry [email protected]<<

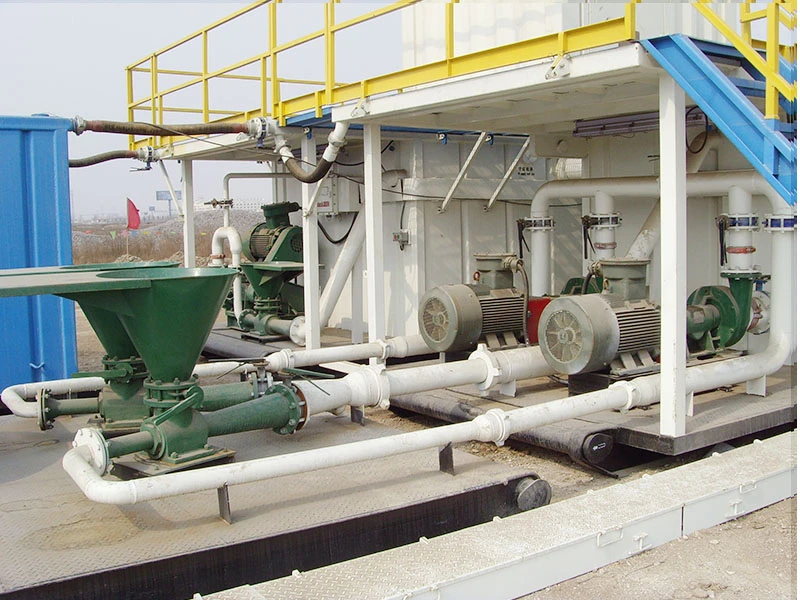

On-site effect of jet mixing device
We designed and produced this drilling fluid solid control system for a client’s ZJ70 drilling rig. HL Petroleum designed and manufactured all the mud handling equipment and mud tanks. As the figure shows, the jet mud mixer primarily configures and replenishes mud, playing an important role in stabilizing drilling fluid performance, saving drilling costs, and improving drilling efficiency.
Why work with HL Petroleum?
HL Petroleum is a professional and high-tech Chinese manufacturer specializing in drilling fluids solids control equipment. We’re a one-stop provider of solids control equipment and solutions. Therefore, our quality inspection team rigorously inspects each component. Then, once the equipment is complete, we debug the entire solids control system until it operates normally. Furthermore, our control systems have passed product quality certification from the Xi’an Bureau of Quality and Technical Supervision. We can also specifically design and match different drilling rigs and solids control equipment for horizontal directional drilling rigs, depending on customers’ actual needs and varying working conditions. Ultimately, this allows us to create a unified mud purification system. Finally, we provide regular maintenance, system modification, and installation services to help minimize drilling costs and improve your economic benefits.
