Jet Mud Mixing Pump

Jet Mud Mixing Pump Overview

The jet mud mixing pump is specialized equipment that prepares or increases the total volume of drilling fluid, and adjusts its density, viscosity, and water loss. In oilfield drilling, when you add drilling fluid materials (like bentonite and barite powder) and chemical additives (like polymers) directly to the circulation tank, they can precipitate or agglomerate in large quantities. This prevents you from obtaining a uniformly dispersed drilling fluid.

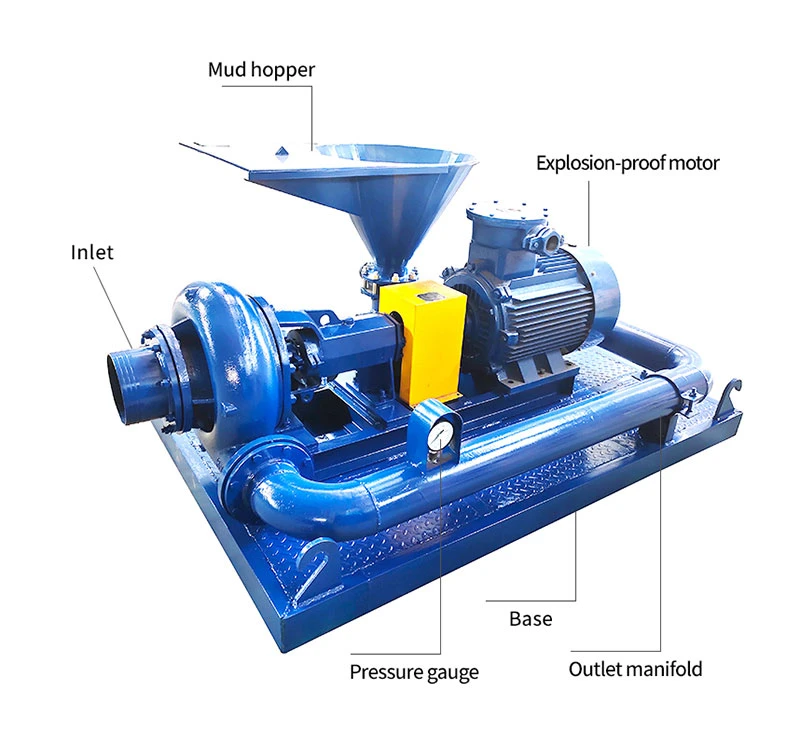

Jet mud mixing pump is a kind of equipment used in conjunction with the solid control system of oil drilling. It can meet the weighting and preparation of drilling fluid in the solid control system of 1000 meters to 7000 meters. The mixing device consists of a sand pump or shear pump and a jet mixing hopper connected by a manifold valve and installed on a base. Reliable performance and easy transportation.

Features of jet mixer

1. Automatic batching, saving labor costs

2. Mobile operation, flexible operation

3. Flexible operation, strong climbing ability, ground operation, eliminating hidden dangers

4. Interactive combination of jet and swirl, wide range of applications

Get a Quote

Technical parameters of jet mud mixer

Model	HHQ-80	HHQ-100	HHQ-125	HHQ-150
Capacity	80m³/h	120m³/h	180m³/h	240m³/h
Motor Power	15KW	30KW	45KW	55KW
Inlet Diameter	100mm	125mm	150mm	200mm
Output Diameter	80mm	100mm	125mm	150mm
Nozzle Diameter	25mm	28mm	32mm	38mm
Dimension	1800×1600×1000mm	2000×1650×1100mm	2200×1700×1200mm	2200×1700×1200mm
Weight	700kg	1100kg	1200kg	1300kg
