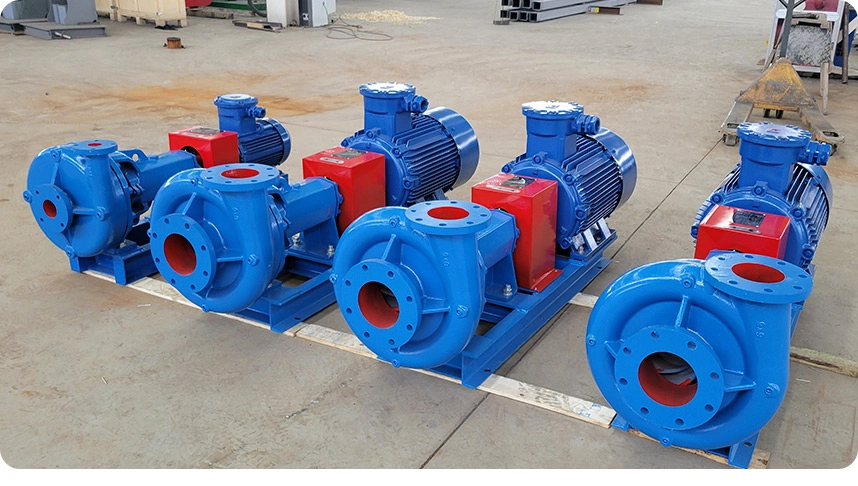

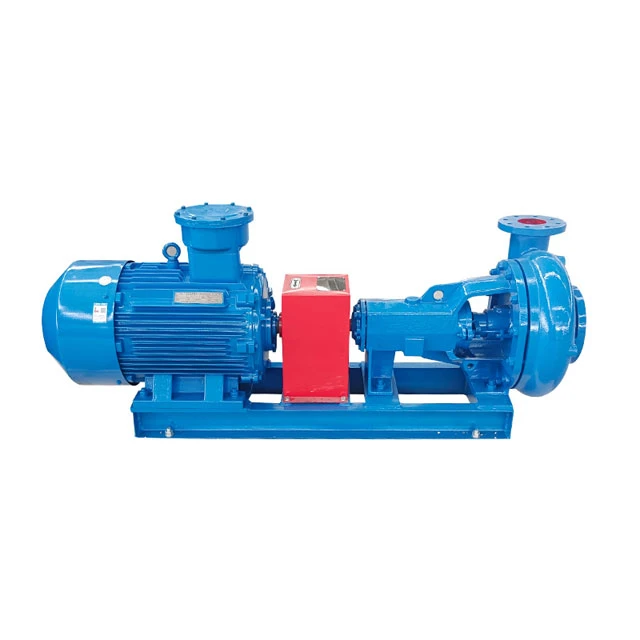

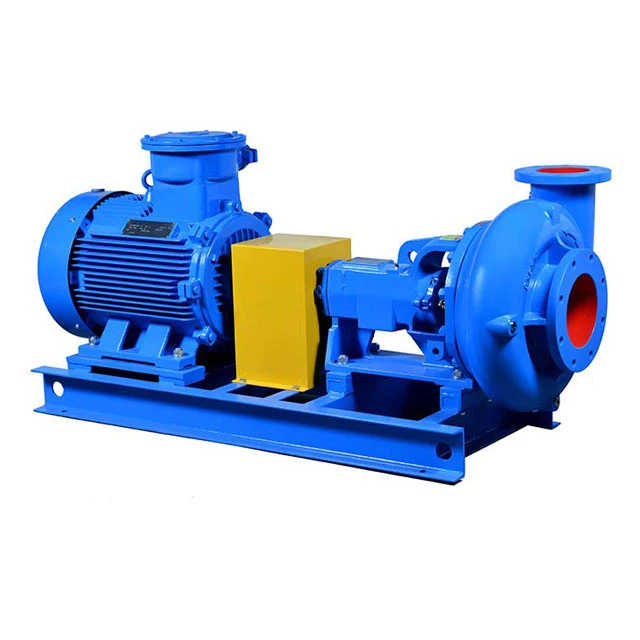

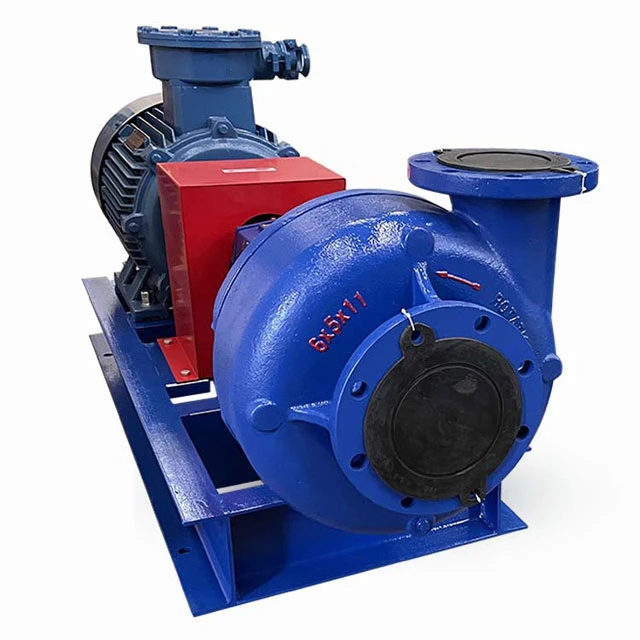

Mission Magnum Pump
Mission Magnum Pump - Image 2
Mission Magnum Pump - Image 3

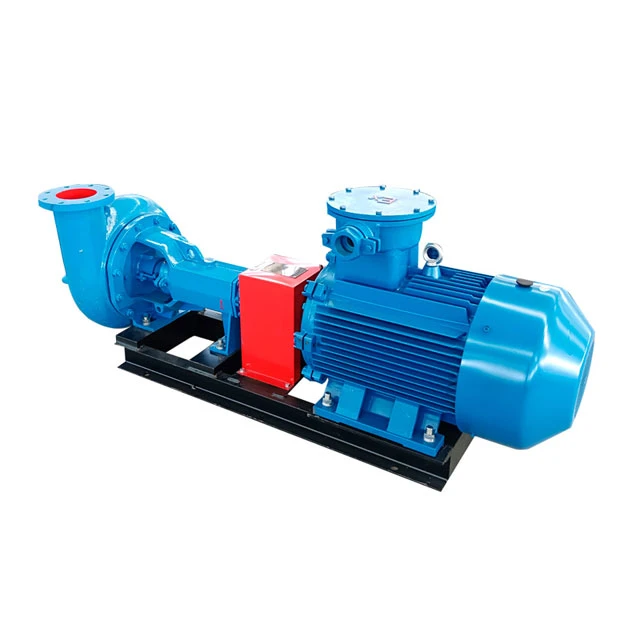

Mission Magnum Pump - Image 4

Mission Magnum Pump

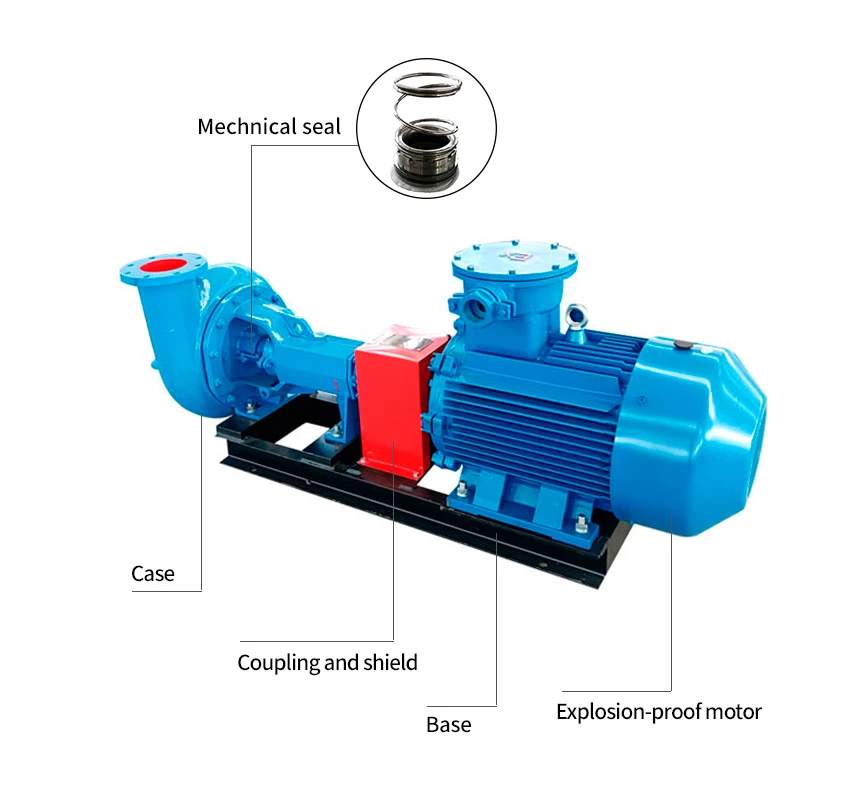

HL Petroleum Mission pump design features:

1. Large flow, fluid mechanics blade curve design.

2. Flow-through parts are made of wear-resistant and corrosion-resistant materials.

3. Mechanical seal and packing seal are used for double-stage sealing.

4. Open impeller structure, can convey high-density and high-viscosity fluid media.

5. External impeller adjustment structure, easy to adjust.

6. 6 series, 24 specifications, suitable for different industries.

7. Metric and imperial interfaces to meet different user needs.

As a professional centrifugal pump manufacturer in China, HL Petroleum brings over 28 years of experience in manufacturing and servicing mission magnum pumps and their parts. We specifically design our pumps to meet the needs of oil and gas drilling, mining, fluid pumping, horizontal directional drilling, and well stimulation fracking.

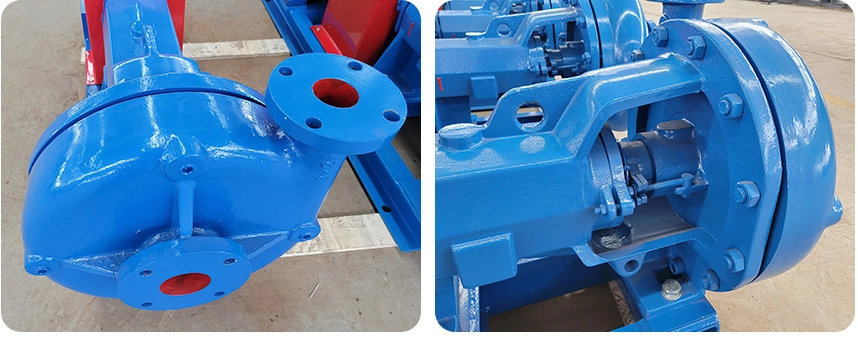

mission magnum pumps

HL Petroleum offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14 to 10x8x14. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450 to 1750RPM at 50Hz or 60Hz.

The Technical Parameters Of Mission Centrifugal Pump

Model Flow
(GPM)		 Head  (FEET) Speed

(RPM)

 Efficiency

(%)

 NPSH

(FEET)

 Shaft Power

(HP)

 Motor Power

(HP)
SB10×8-14 2000 95 1750 60 16 83 150
SB10×8-13 1550 88 1750 60 16 59 125
SB10×8-12 1320 82 1750 60 16 46 100
SB8×6-14 1320 131 1750 67 15 65 125
SB8×6-13 1050 121 1750 67 15 49 100
SB8×6-12 880 118 1750 66 15 42 75
SB8×6-11 880 108 1750 64 15 38 60
SB6×5-14 880 114 1750 64 15 40 75
SB6×5-13 880 108 1750 64 15 38 60
SB6×5-12 780 102 1750 61 13 34 50
SB6×5-11 700 92 1750 61 13 25 40
SB6×5-10 615 79 1750 61 13 22 30
SB5×4-14 395 130 1750 61 11 26 50
SB5×4-12 340 100 1750 60 11 16 30
SB4×3-12 375 100 1750 60 10 19 40
SB4×3-11 350 82 1750 58 10 12 25
SB4×3-10 350 75 1750 57 10 11 15
SB4×3-9 310 58 1750 57 10 7 10
SB3×2-13 350 110 1750 56 10 15 30
SB3×2-11 220 90 1750 56 10 9 15
SB3×2-10 200 70 1750 54 10 7.5 10
SB3×2-9 175 50 1750 54 10 4.4 7.5

HL SB series Mission pump have stable performance, high temperature resistance, large flow, easy maintenance and cost saving, and can provide the best customized options for the intended application according to the fluid conditions. They are currently widely used in land and offshore drilling platforms around the world, and are suitable for industry, construction, chemical industry, agriculture and other fields. >>Send an Enquiry [email protected]<<

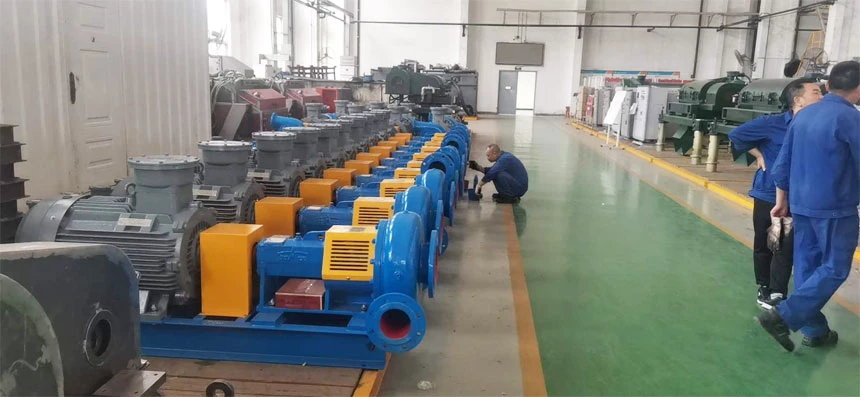

Mission centrifugal pump

For solids control systems on drilling rigs over 3000 meters, especially those with high-viscosity, heavy-specific-gravity drilling fluid, use the 10x8x14 and 8x6x14 centrifugal magnum pumps. The 8x6x11 centrifugal mud solids control feeding pump is suitable for drilling rigs under 3000 meters and can also serve as a filling pump for triplex mud pumps. For truck-mounted or pocket drilling rigs, the 6x5x11 centrifugal pump is ideal. Operators typically use the 4x3x13 drilling centrifugal pump as a metering or replenishment pump, while the 3x2x13 model pump usually functions as a clean water pump.

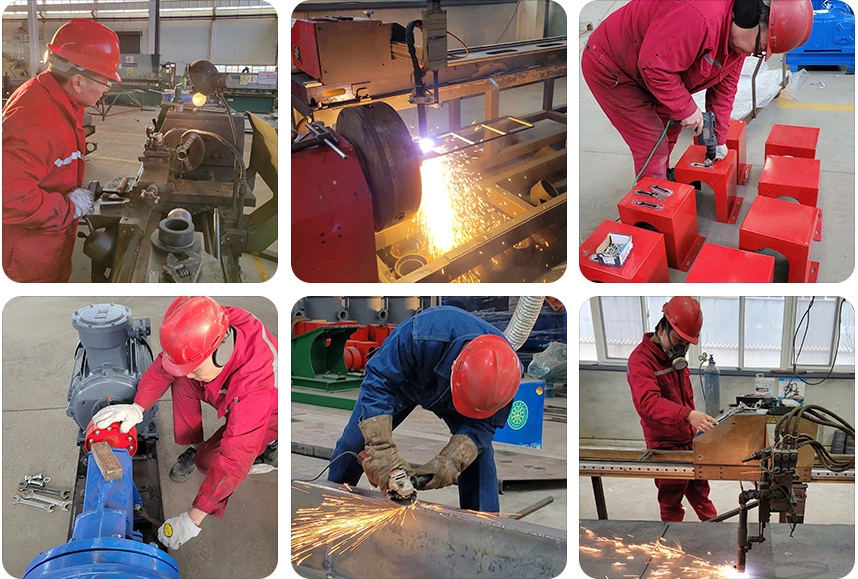

How does HL Petroleum Manufacture Mission Magnum Pump?

mission magnum pump processing pictures

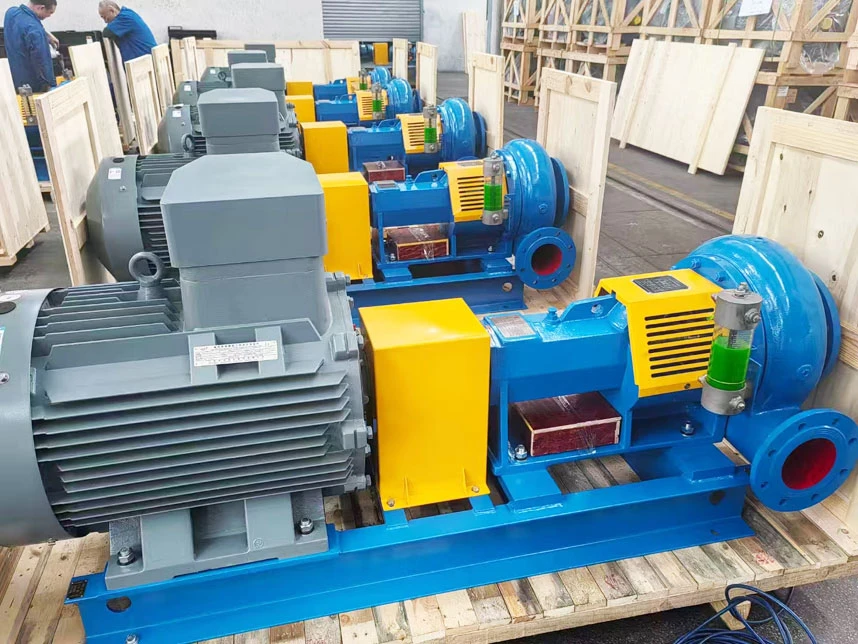

Mission Magnum Pump Delivery

>>Send an Enquiry [email protected]<<
