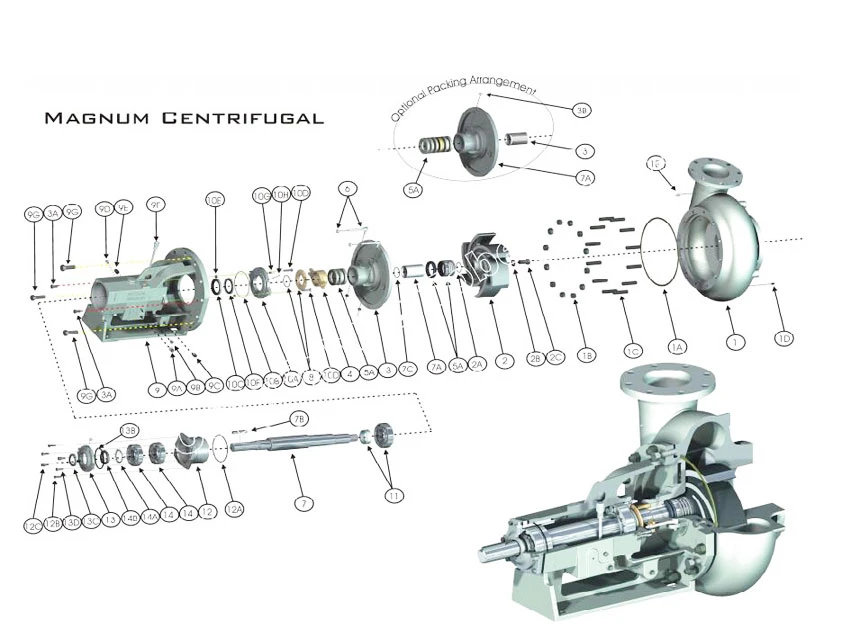

Mission Pump Parts

1*

1

See below

See below

Casing

1A

1

10399-46-1

648403012

Gasket,casing

1B

12

3932-61

648402014

Nut,casing

1C

12

3862-76

648401115

Stud,casing

1D

1

8505-04-01

86485503

Plug,Casing Drain

1E

1

8505-04-01

646400507

Plug,flush line

2*

1

See below

See below

Impeller

2A

1

19110-72

64845082

Seal,impeller

2B

1

7300239

Washer,impeller

2C

1

7415648

Bolt,impeller lock

3*

1

22223-01-30

641116157

Stuffing box,mech.seal

3*

1

20614-01-30

643365042

Stuffing box,packed

3A

2

3861-117

648401016

Bolt,stuffing box

3B

1

19368-01

601499403

Grease fitting

4

1

20622A

641103338

Gland assy,packing

5A#

1

22451-1

648414308

Seal,mechanical

5A#

3

25014-04M-B

661007005

Packing, Shaft

6

2

B3701A

601102494

Bolt assy,gland

7

1

20612-02-33

646490557

Shaft

7A

1

20943-21

641102182

Sleeve,shaft,M.S.

7A

1

20613-21G-7A

641102181

Sleeve,shaft,Pack

7B

1

4372-5-21

601212392

Key,shaft

7C

1

23444-01-72

648415156

Seal,shaft sleeve

8

1

22210-1A

641116108

Deflector assembly

9

1

20618-12-1

644302499

Frame,grease lubricated

9A

1

8505-05

601474737

Plug,oil drain

9B

3

2538-1H

648403608

Plug,oil fil

9C

1

8505-05

601474737

Plug, Frame Drain

10A

1

20626

644303109

Cover,inboard bearing

10B

1

20625

648408706

Gasket,I.B.Brg.Cover

10C

1

20619-01

648408300

Oil seal, I.B.Brg.Cover

10D

2

3861-1

601407505

Bolt, I.B.Brg.Cover

10E

2

3932-2

601408560

Nut, I.B.Brg.Cover

10F

1

21641-01

661010033

Grease fitting

11

1

20615-1

–

Bearing,inboard

12

1

20624-01-01

644308504

Housing,O.B.bearing

12A

1

7496-253

648402295

Seal, O.B.Brg.housing

12B

4

3861-138

648401057

Bolts, O.B.Brg.housing

12C

2

3932-62

658404702

Nut, O.B.Brg.housing jam

13

1

20617-01-01

641103296

Cover,O.B.Bearing

13A

1

19368-01

661010020

Grease zerk, O.B.Brg.Cover

13B

1

7496-26

72200017

O-ring, O.B.Brg.Cover

13C

1

20619-02

648408359

Oil seal, O.B.Brg.Cover

13D

2

3861-139

648401081

Bolt, O.B.Brg.Cover

14

2

20616-1

648408201s

Bearing, O.B.

14A

1

6124-4

648402105

Lockwasher,O.B.Bearing

14B

1

6123-4

648402055

Locknut, O.B.Bearing

Casing ( including studs, nuts and gaskets)

Item

Qty

Part No.

Processing#

Description

1*

1

19203-01-30A

641101753

Casing,3×2×13

1*

1

19205-01-30A

641101902

Casing,4×3×13

1*

1

19222-01-30A

641102058

Casing,5×4×14

1*

1

19122-01-30A

641101456

Casing,6×5×11

1*

1

19123-01-30A

641101605

Casing, 6×5×14

1*

1

19763-01-30A

641102157

Casing, 8×6×11

1*

1

19763-01-30A

641101308

Casing,8×6×14

1*

1

20937-01-30A

641102322

Casing,10×8×14

Impellers

Item

Qty

Part No.

Processing#

Description

2*

1

19204-XX-30

641215603

Impeller,3×2×13

2*

1

19206-XX-30

641217005

Impeller,4×3×13

2*

1

19224–XX-30

641217831

Impeller,5×4×14

2*

1

19121-XX-30

641211602

Impeller,6×5×11

2*

1

19121-XX-30

641212105

Impeller, 6×5×14

2*

1

19121-XX-30

641211602

Impeller, 8×6×11

2*

1

19116-XX-30

641209903

Impeller,8×6×14
