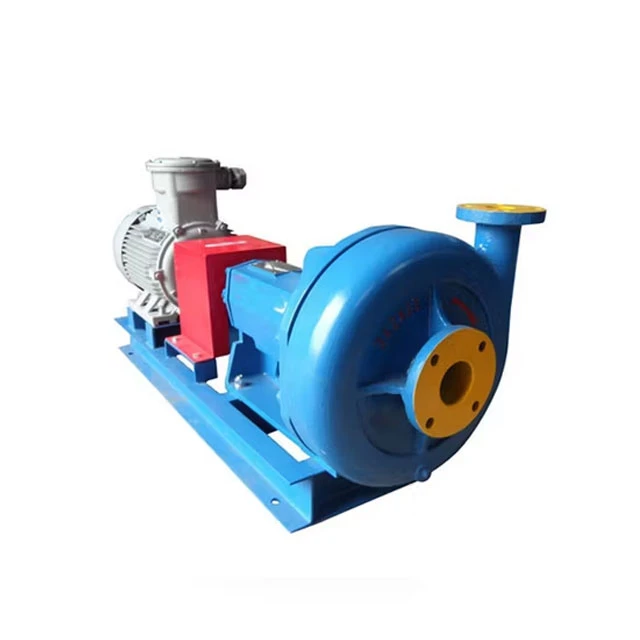

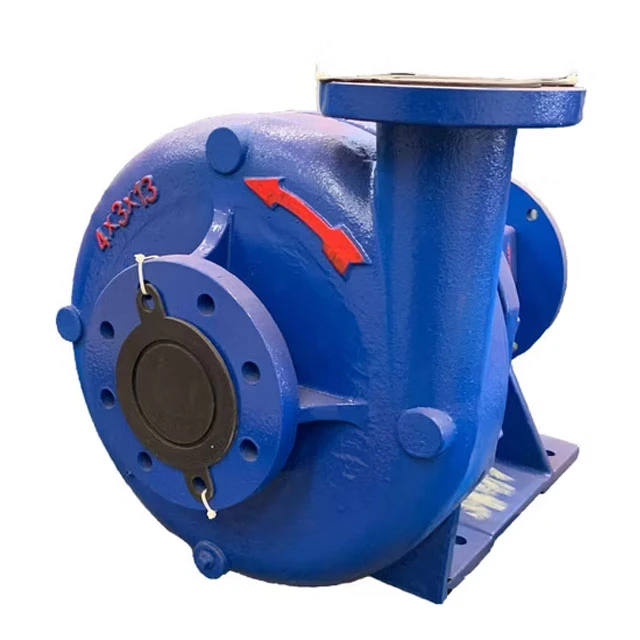

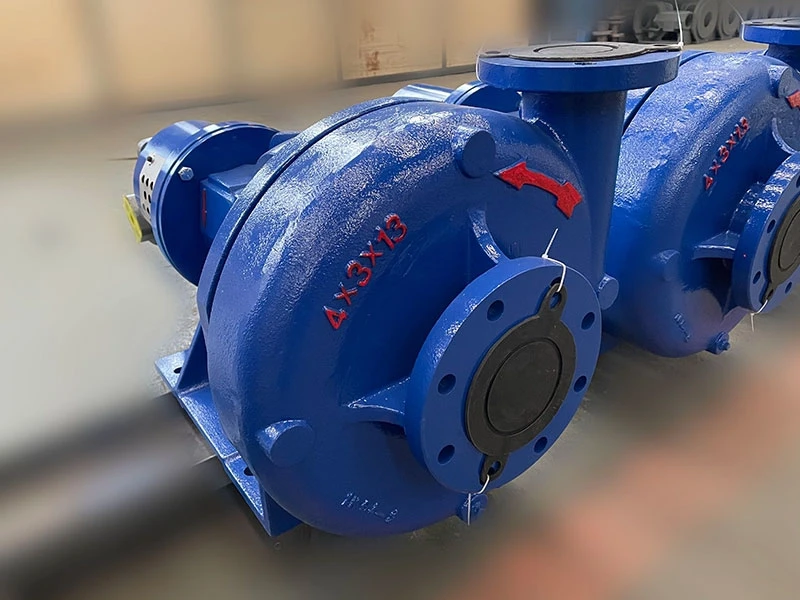

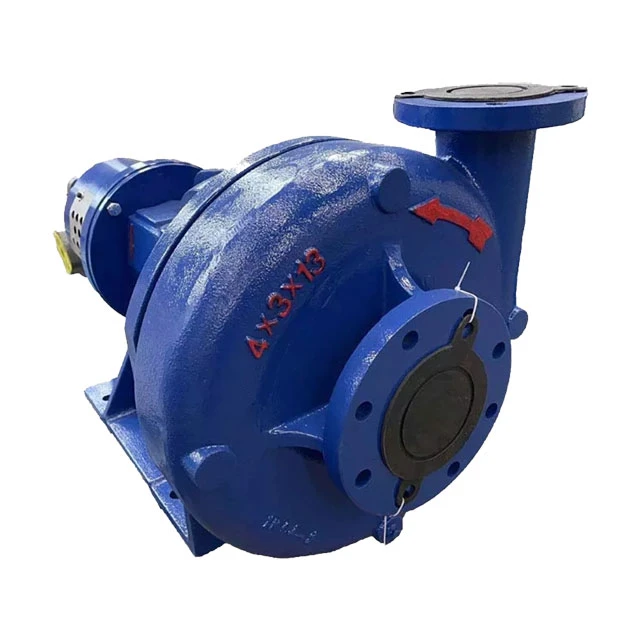

Mission Sandmaster Pump

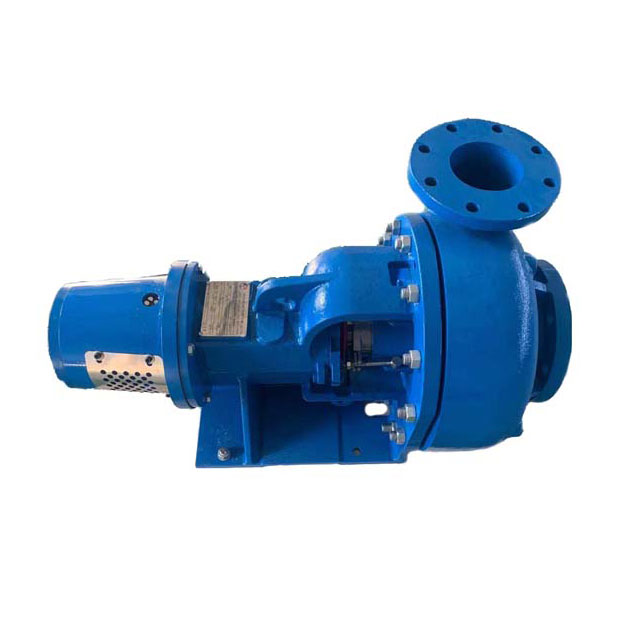

Mission Sandmaster Pump not only has the advantages of Magnum centrifugal pump, but also has a more compact design, stronger adaptability, and can be driven by a hydraulic motor. Therefore, it can also be used in oil field press trains and sand mixing cars. Except for the design shape and shaft, other parts are universal. Its overall dimensions and shaft are 4 inches shorter than ordinary pumps. When the equipment space is limited, Sandmaster Pump centrifugal pump is your ideal choice.

Mission Sandmaster Pump Main Technical Parameters

Type	Rotation speed (r/min)	Capacity (m3/h)	Pressure head/m	Efficiency (%)	Motor HP.(kw)
HCP3×2×13	1450/1750	40-60	24-35	65	7.5/11/15
HCP4×3×13	1450/1750	60-80	26-33	65	11/15
HCP5×4×14	1450/1750	120-150	28-33	65	22/30/37
HCP6×5×14	1450/1750	180-240	26-33	65	37/45/55
HCP6×5×11	1450/1750	160-170	24-26	65	30/37
HCP8×6×14	1450/1750	240-260	33-35	65	55/75
HCP8×6×11	1450/1750	220-240	24-26	65	37/45
HCP10×8×14	1450/1750	280-320	33-38	65	75/90

Get a Quote

Mission Sandmaster Pump Features

1. Open impeller, suitable for conveying high-viscosity drilling fluid

2. Combined seal, long service life

3. The bearing seat, shaft and other parts of all models of centrifugal pumps are universal, easy to maintain and cost-saving

4. The main parts are wear-resistant ductile iron, resin sand precision casting, long service life

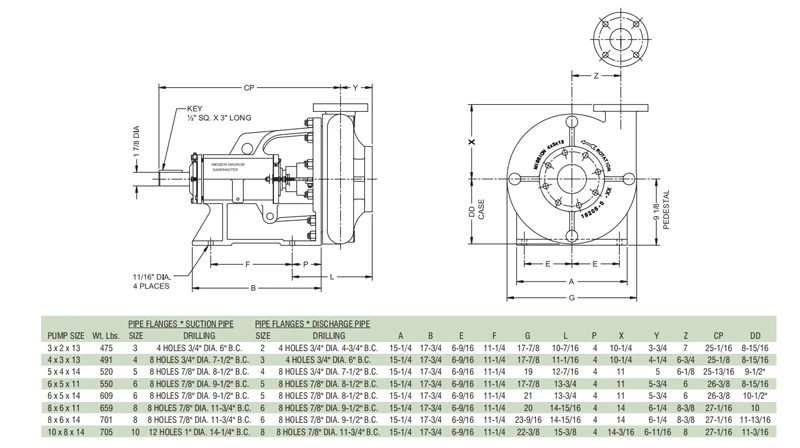

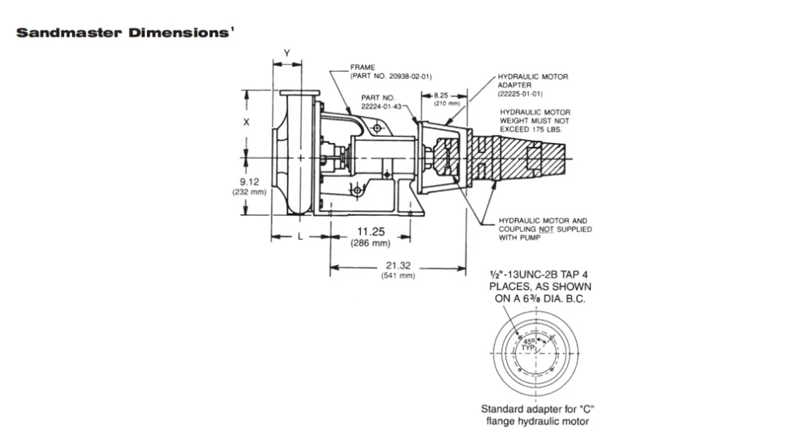

Dimensional Data

Get a Quote

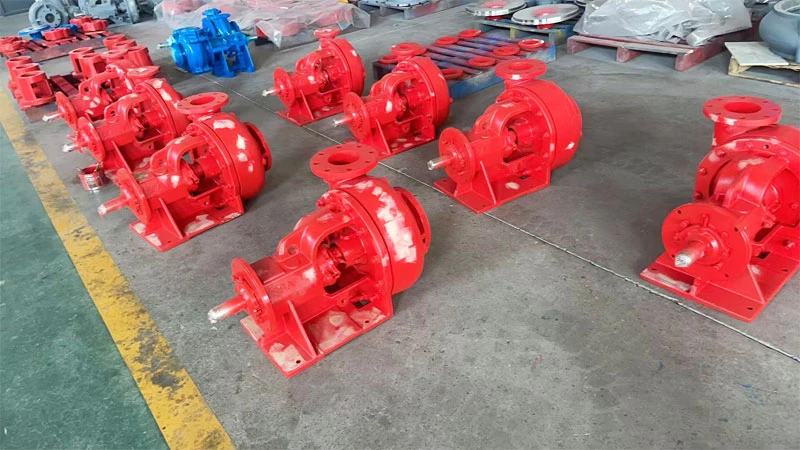

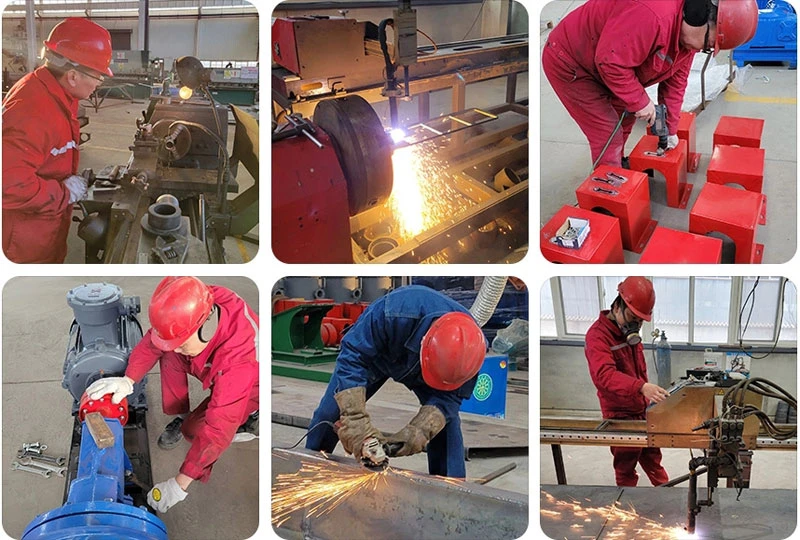

Mission Sandmaster Pump Processing

Why work with HL Petroleum?

HL Petroleum is a professional and high-tech Chinese manufacturer specializing in drilling fluids solids control equipment. We’re a one-stop provider of solids control equipment and solutions. Therefore, our quality inspection team rigorously inspects each component. Then, once the equipment is complete, we debug the entire solids control system until it operates normally. Furthermore, our control systems have passed product quality certification from the Xi’an Bureau of Quality and Technical Supervision. We can also specifically design and match different drilling rigs and solids control equipment for horizontal directional drilling rigs, depending on customers’ actual needs and varying working conditions. Ultimately, this allows us to create a unified mud purification system. Finally, we provide regular maintenance, system modification, and installation services to help minimize drilling costs and improve your economic benefits.
