The mud hopper is a new type of mixer with fast mixing speed, uniform mixing and low energy consumption. It has a simple structure and is easy to connect. Its main purpose is to quickly and evenly mix the drilling fluid and its additives.
Mud Hopper Technical Parameters
| Model | HLD150 | HLD150-Y | HLD150-X |
| Capacity(m3/h) | 180 | 240 | 150 |
| Working pressure (Mpa) | 0.32-0.42 | 0.32-0.42 | 0.32-0.42 |
| Hopper diameter (mm) | 700 | 700 | 700 |
| Inlet diameter(mm) | 125/150 | 150 | 125 |
| Outlet diameter (mm) | 150 | 150 | 150 |
| Weight (kg) | 145 | 180 | 200 |

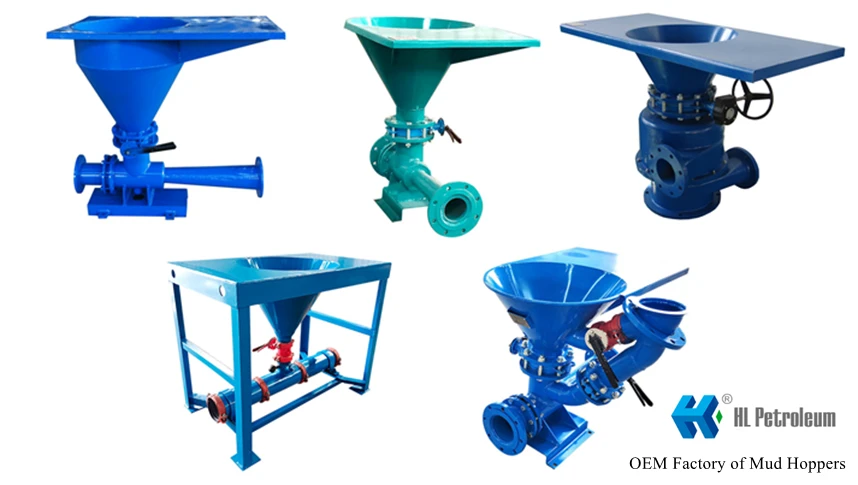

OEM Service
HL Petroleum is a leading OEM factory of mud hoppers. We customize the size, color, and mixing capacity,etc based on your demands.

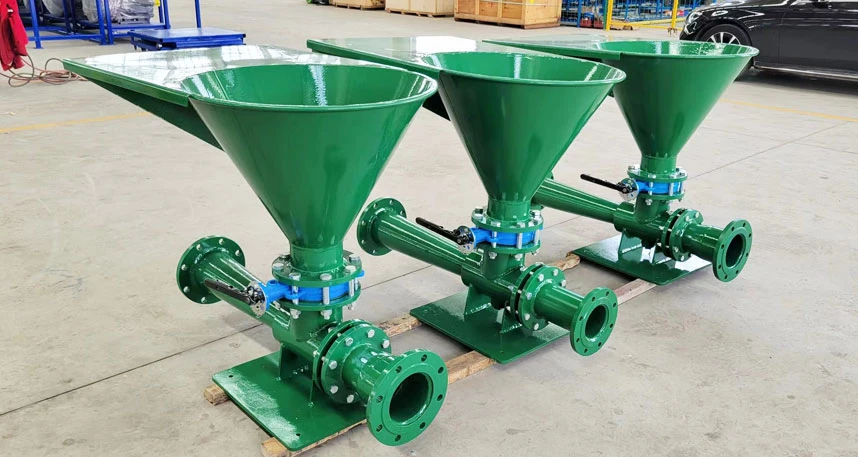

Here are some cases of the mud mixing hoppers what we produce for clients.>>Send an Enquiry [email protected]<<
Mud Hopper Features
1. Simple structure and strong feasibility
2. Safe and reliable performance, easy to transport
3. Fast mixing speed, uniform mixing, low energy consumption
Work Principle
According to the jet principle. The hopper is also used for medium pressure operation.

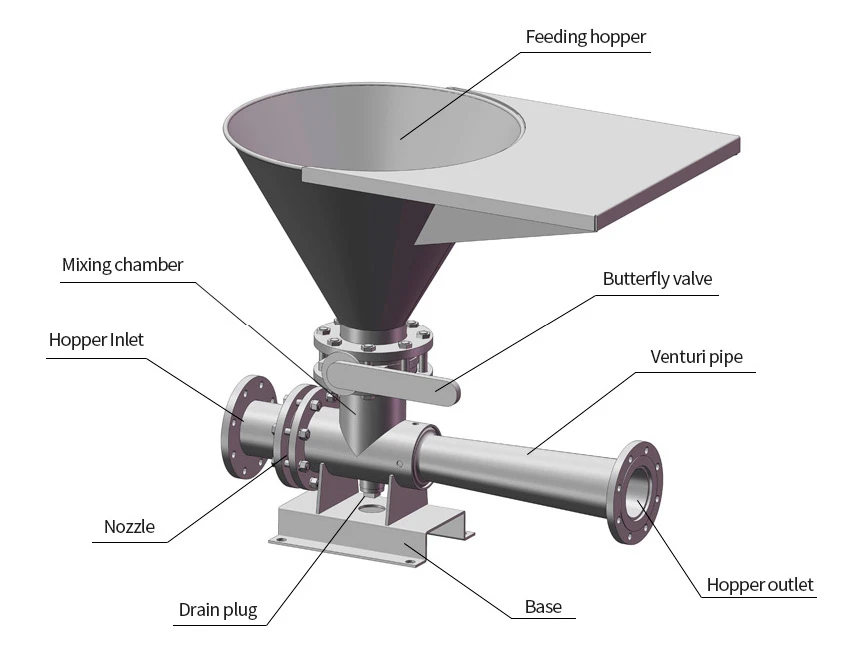

Hopper Structure
The jet hopper mainly consists of a feeding hopper, a butterfly valve, a venturi pipe, a mixing chamber and a nozzle.
