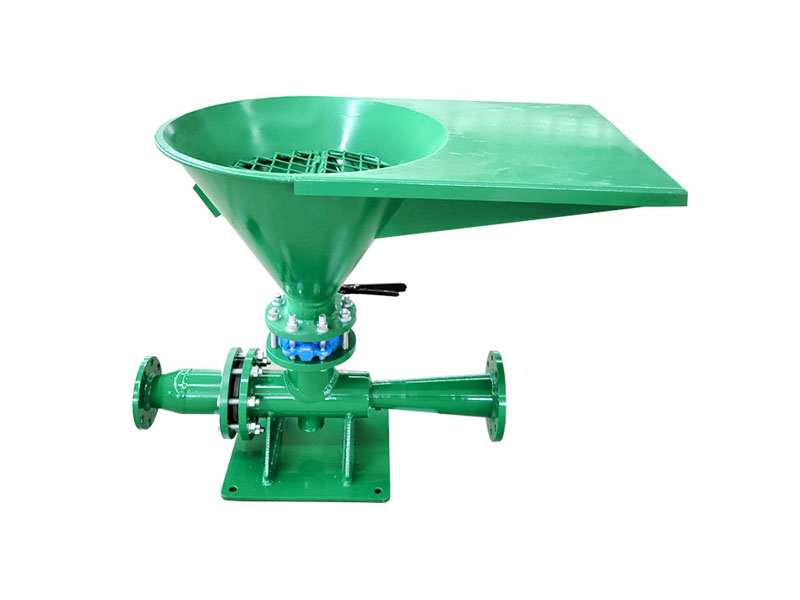

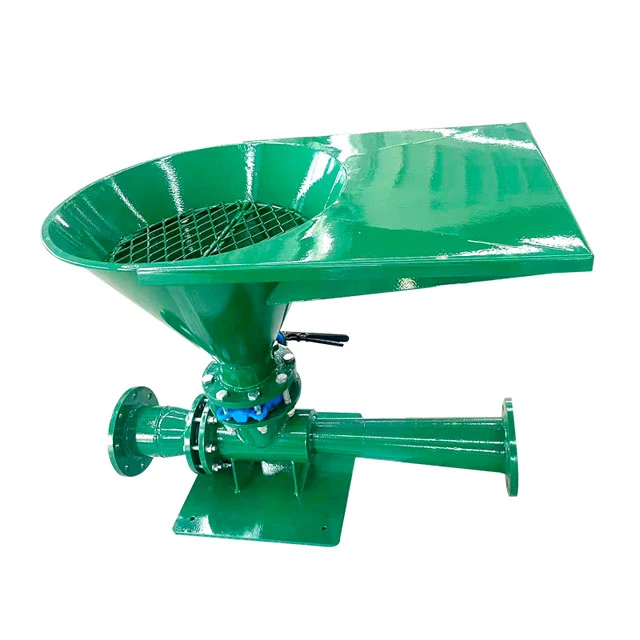

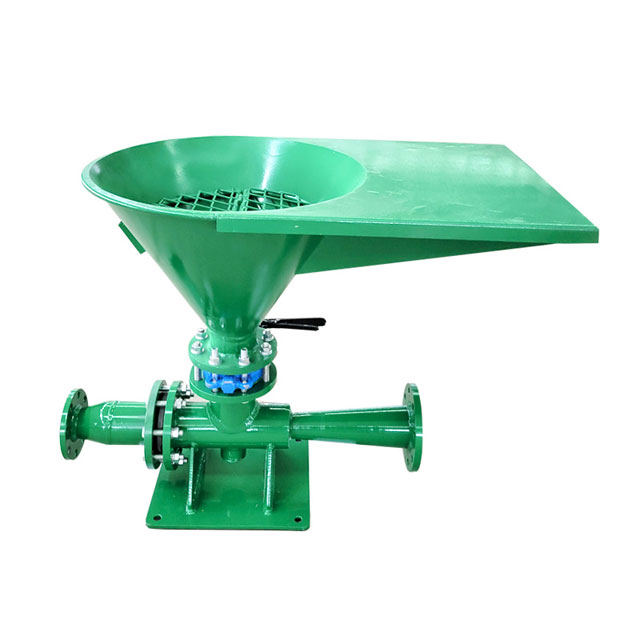

The mud mixing hopper is designed by combining the venturi tube with the original jet nozzle. It has a simple structure and strong feasibility. The mud mixing hopper is a commonly used liquid mixing device.
Mud hopper product features
1. Simple structure and strong feasibility
2. Safe and reliable performance, easy to move
3. Fast mixing speed, uniform mixing and low energy consumption
Mud mixing hopper technical parameters
| Model | HLD150 | HLD150-Y | HLD150-X |
| Capacity(m3/h) | 180 | 240 | 150 |
| Working pressure (Mpa) | 0.32-0.42 | 0.32-0.42 | 0.32-0.42 |
| Hopper diameter (mm) | 700 | 700 | 700 |
| Inlet diameter(mm) | 125/150 | 150 | 125 |
| Outlet diameter (mm) | 150 | 150 | 150 |
| Weight (kg) | 145 | 180 | 200 |

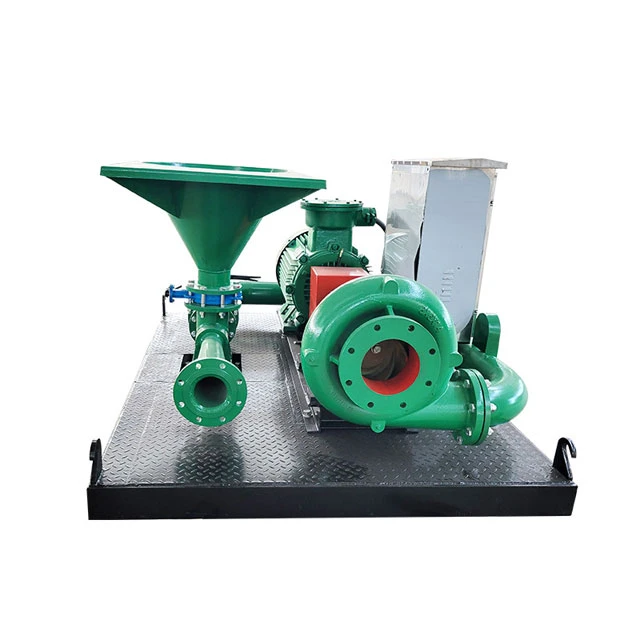

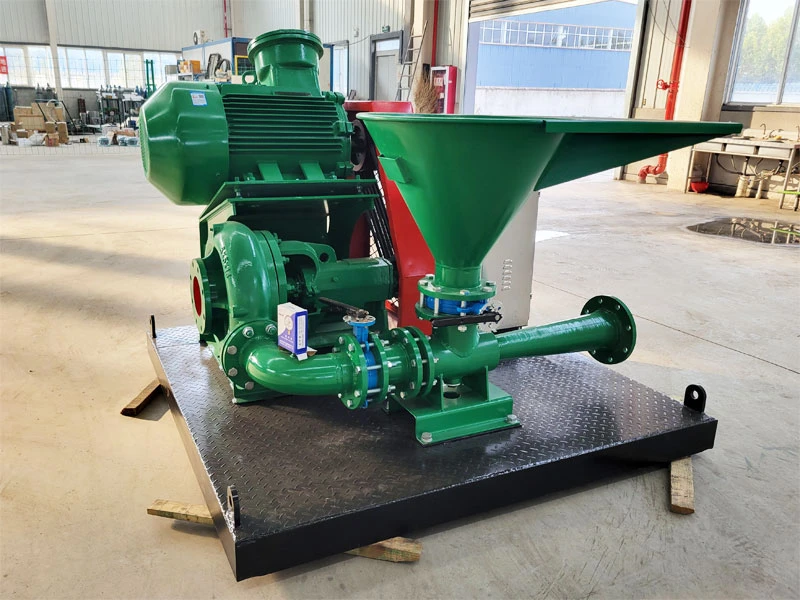

Jet mud mixer
Jet hopper is combined with a sand pump to form a jet mud mixer
Automatic batching, saving labor costs, interactive combination of injection and swirl, wide range of applications

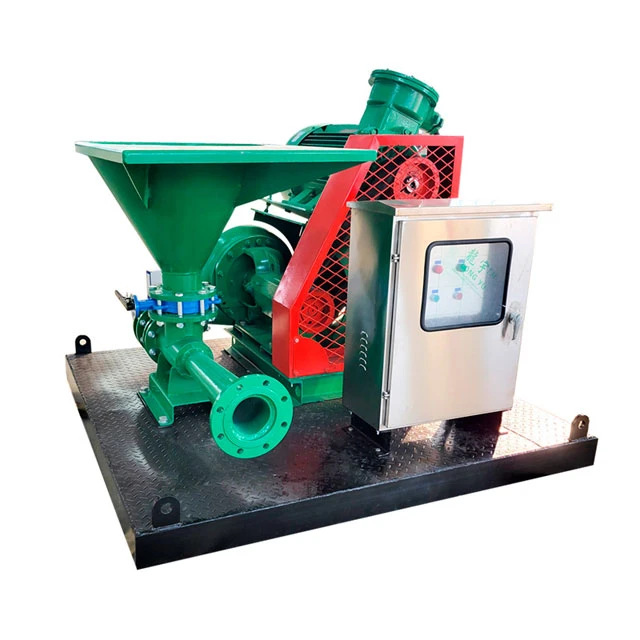

Shear mud mixer
Mixing hopper is combined with a shear pump to form a shear mixing mixer
Provide high shear for rapid hydration of high molecular polymers (clay) to save the use of mud materials and shorten the mud configuration time
