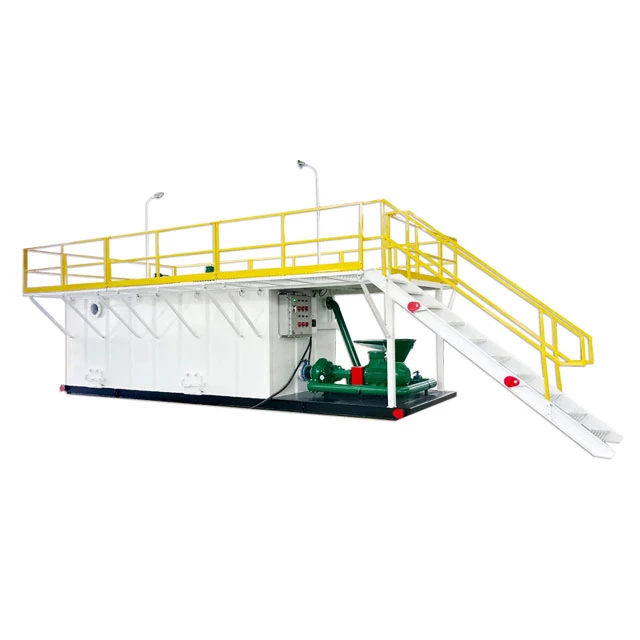

Mud Mixing System

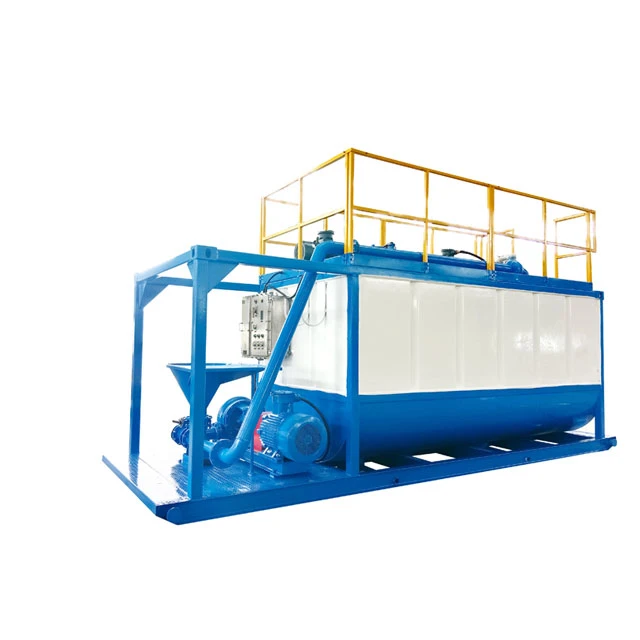

Mud Mixing System - Image 2
Mud Mixing System - Image 3
Mud Mixing System - Image 4

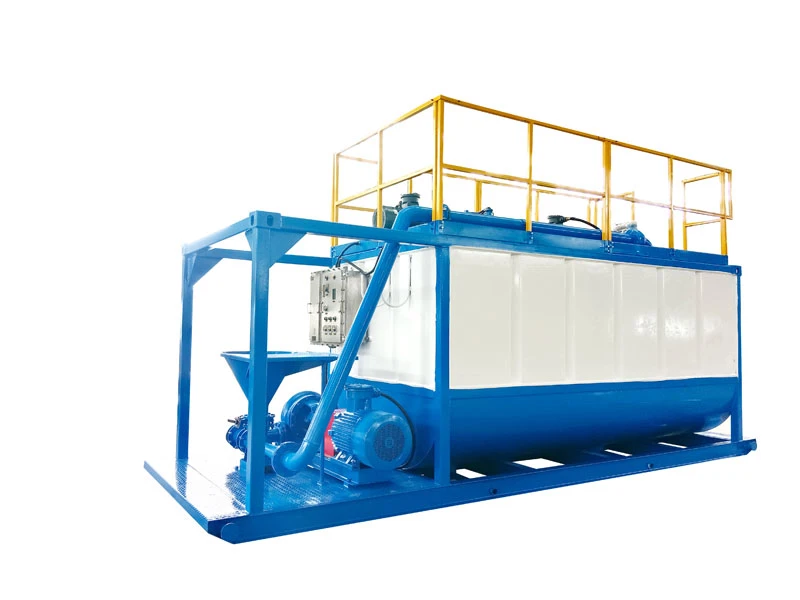

Mud Mixing System

Mud Mixing System Features

1. Combination of Venturi tube and jet nozzle, high mixing efficiency and sufficient mixing

2. Large processing capacity, fast time, saving labor

3. Safe and reliable performance, easy to move

4. The tank body adopts corrugated structure, high strength, strong and durable

The HMM mud mixing system primarily functions to mix mud. It operates on the principle of simultaneous jet and impeller mixing, ensuring thorough and rapid mixing. Each mud preparation cycle completes within 15 minutes. This system sees wide application in geological drilling, oil drilling, and trenchless pipeline construction.

During the drilling process, mud mixing and reuse are key links to ensure drilling efficiency and safety. The mixing device and mud mixing tank can quickly and evenly mix the mud, and effectively adjust the mud viscosity and ratio to meet customers’ needs for drilling technology and improve drilling efficiency and engineering quality. At the same time, the configuration of explosion-proof electrical control system and lighting system provides a safe and comfortable working environment for on-site operators.

mud mixing system

HDD Mud Mixing System Technical Parameters

Model HHX-20 HHX-50 HHX-100 HHX-200 HHX-500
Mixing Capacity 80m³/h 120m³/h 200m³/h 400m³/h 720m³/h
Tank Volume 20m³ 50m³ 100m³ 200m³ 500m³
Agitator Power 7.5KW×2 15KW×3 15KW×6 15KW×12 15KW×30
Jet Mixer Power 15KW 37KW 55KW 55KW×2 75KW×3

As a professional manufacturer of complete mud equipment systems, HL Petroleum has been committed to providing high-quality and efficient mud handling equipment to global clients.Here are some delivered cases of HL Petroleum mud mixing system。

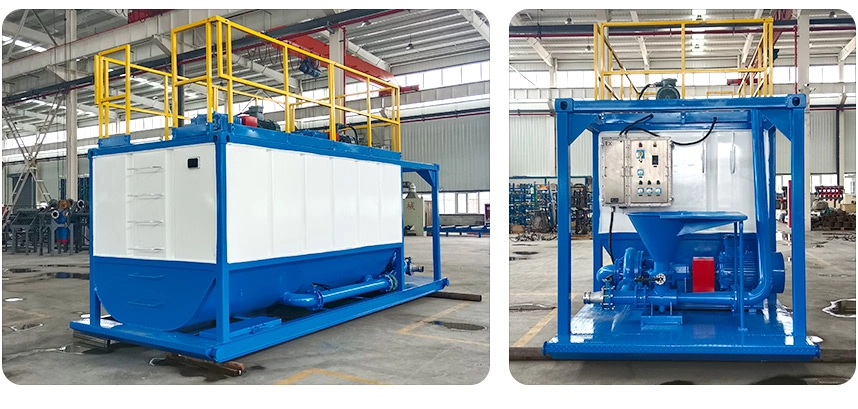

Electric-driven mud mixing system Delivered on 2024,Apr.
Electric-driven mud mixing system
with 18m³ mud tank,
For oil offshore well cementing project.
Delivered on 2023,July,
Gasoline engine mud mixing system,
For HDD project.		 Gasoline engine mud mixing system

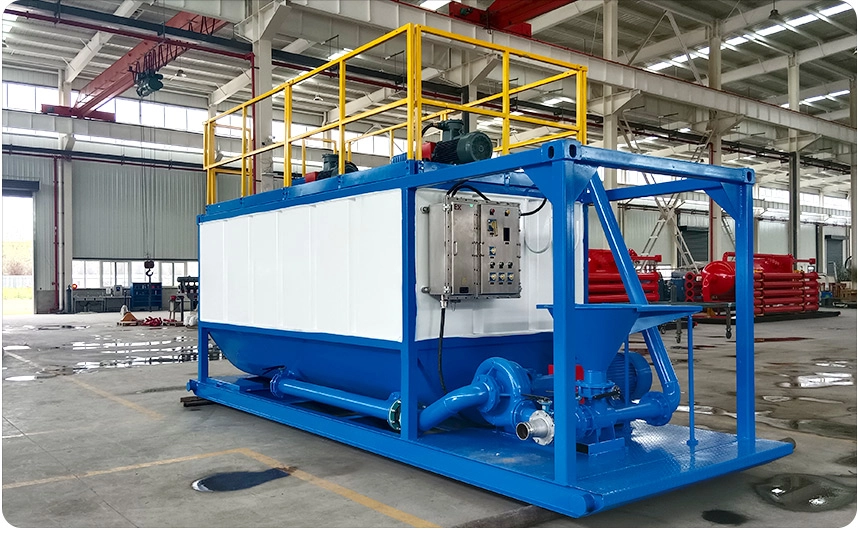

shear mud mixing system Delivered on 2024,Apr.

Small shear mud mixing system with 15m³ mud tank,

For HDD project
Delivered on 2023,Oct.

Small Gasoline engine mud mixing system with

3m³ mud tank,

for geothermal drilling and water well projects

 Small Gasoline engine mud mixing system

The mud mixing system supplied by HL Petroleum

* Meets the relevant requirements of your country for this industry.

* Reasonable design and reliable performance. We listen carefully to your requirements and design the tank structure and lifting device according to the needs to facilitate transportation and movement; according to the working conditions, we equip the insulation shed and insulation pipelines, so that the mixing system can mix the slurry evenly and fully in a low temperature environment.

* Anti-corrosion and durable. Mainly reflected in the production process: high-quality steel is selected,sandblasting and rust removal treatment is carried out, and high-efficiency anti-corrosion paint is sprayed.

* One-stop procurement. All functional units and related accessories required for the mud mixing system can be directly supplied by us.
