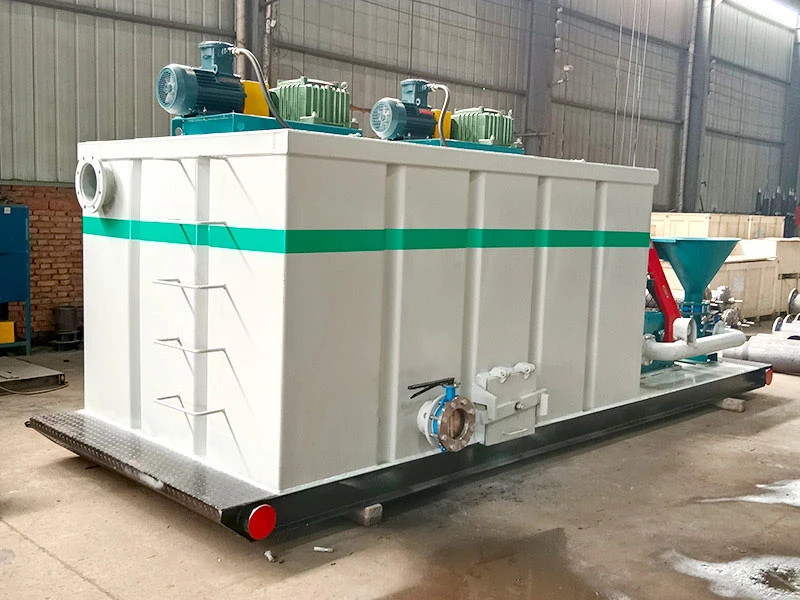

There is a mud mixing systems for directional drilling called shear mixing system.

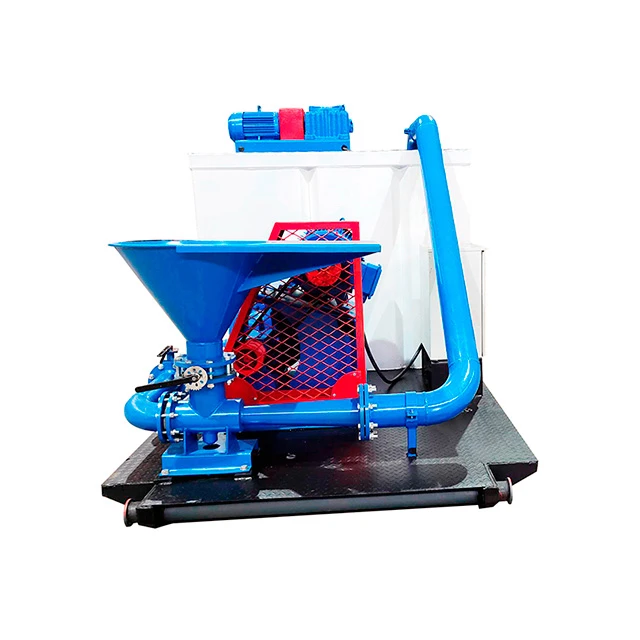

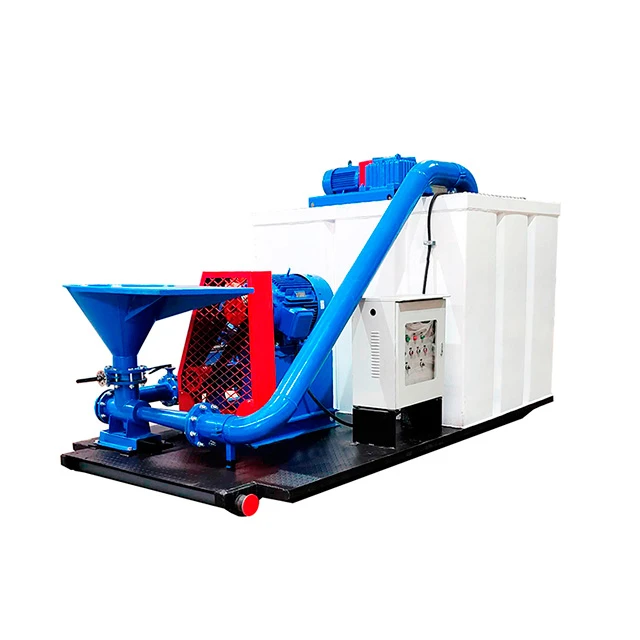

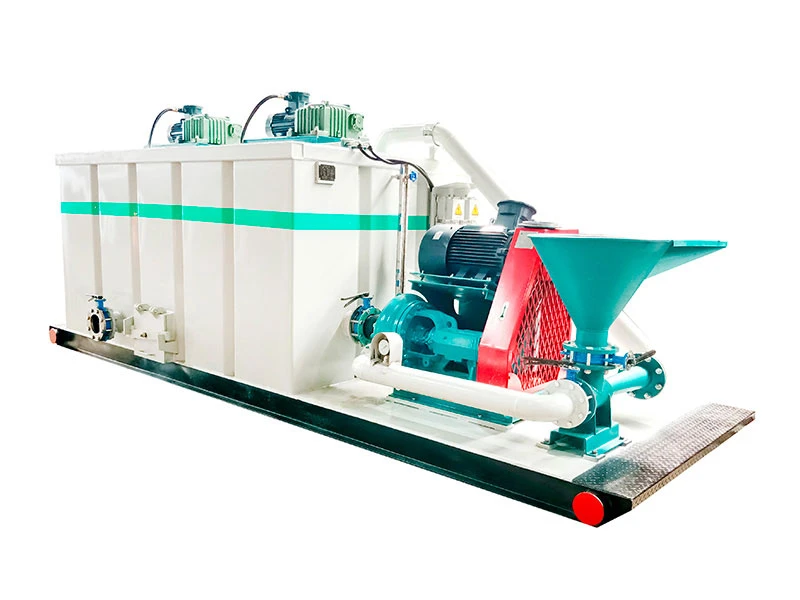

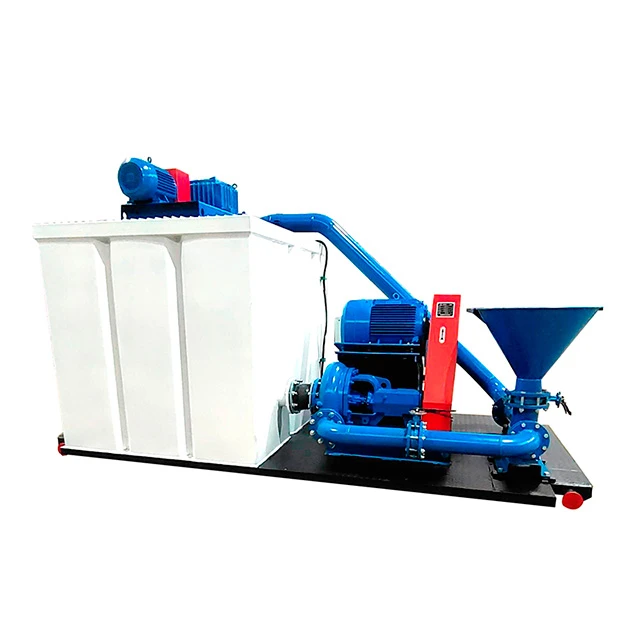

The shear mixing system is a straightforward setup, comprising a shear mixing device, a mud agitator, and a mud tank. The shear mixing device itself consists of a shear pump and a jet funnel. This system boasts a simple structure, requires minimal space, ensures uniform mixing, and achieves excellent treatment results.
This shear mixing system is a relatively simple one among many mixing systems of our company!
Our company independently developed and produced a mud mixing system specially designed for drilling and trenchless construction. Since the system was developed and put into the market, it has been used by many construction units and has received unanimous praise, highlighting its characteristics: small input power, large output torque, large volume and uniform mixing, good effect, beautiful appearance and convenient transportation. It is an ideal construction supporting equipment.
HL Petroleum has dedicated years to researching mud in various fields, including oil and gas, and coalbed methane horizontal directional drilling. Over this time, we’ve earned the recognition and trust of both domestic and international customers through our reliable product quality and excellent after-sales service. We also customize our shear mixing systems to meet specific customer requirements.
Mud Mixing Systems for Directional Drilling Technical Parameters
| Model | HHX-20 | HHX-50 | HHX-100 | HHX-200 | HHX-500 |
| Mixing Capacity | 80m³/h | 120m³/h | 200m³/h | 400m³/h | 720m³/h |
| Tank Volume | 20m³ | 50m³ | 100m³ | 200m³ | 500m³ |
| Agitator Power | 7.5KW×2 | 15KW×3 | 15KW×6 | 15KW×12 | 15KW×30 |
| Jet Mixer Power | 15KW | 37KW | 55KW | 55KW×2 | 75KW×3 |
As a professional manufacturer of complete mud equipment systems, HL Petroleum has been committed to providing high-quality and efficient mud handling equipment to global clients.Here are some delivered cases of HL Petroleum mud mixing system。
 |

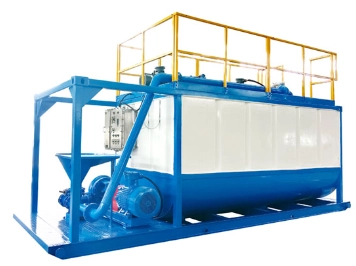

Delivered on 2024,Apr. Electric-driven mud mixing system with 18m³ mud tank, For oil offshore well cementing project. |

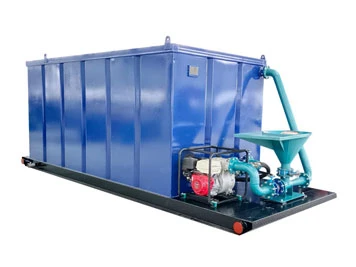

| Delivered on 2023,July, Gasoline engine mud mixing system, For HDD project. |
 |
 |

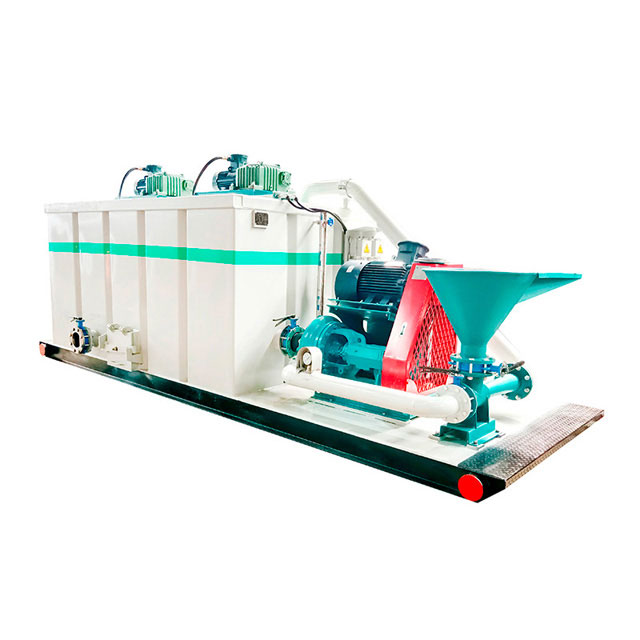

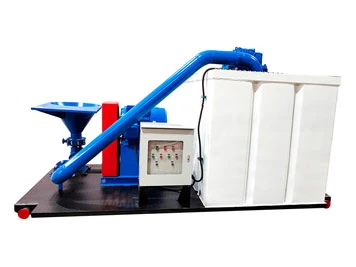

Delivered on 2024,Apr.
Small shear mud mixing system with 15m³ mud tank, For HDD project |

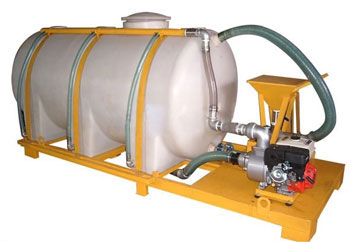

| Delivered on 2023,Oct.
Small Gasoline engine mud mixing system with 3m³ mud tank, for geothermal drilling and water well projects |
 |
