Mud Mixing Unit Overview

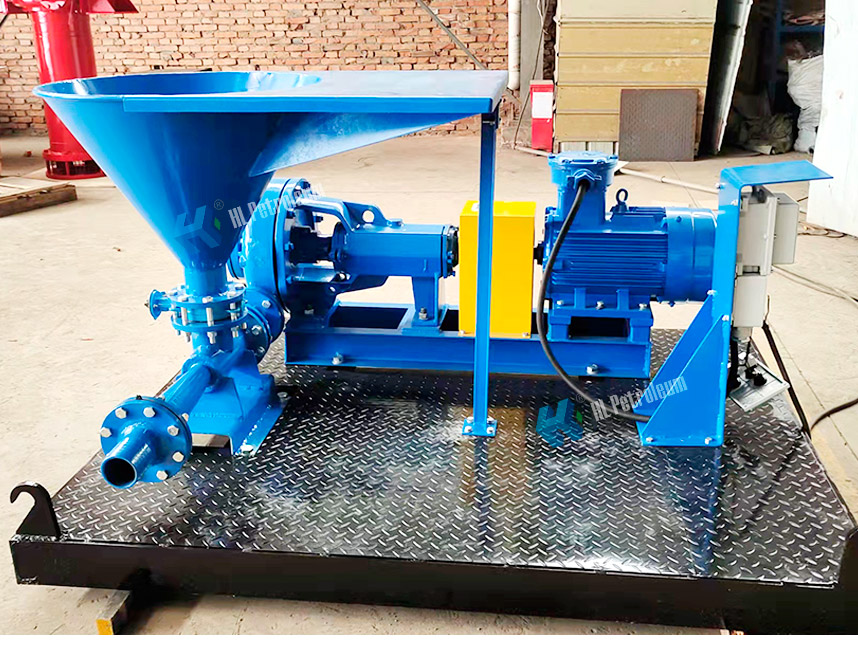

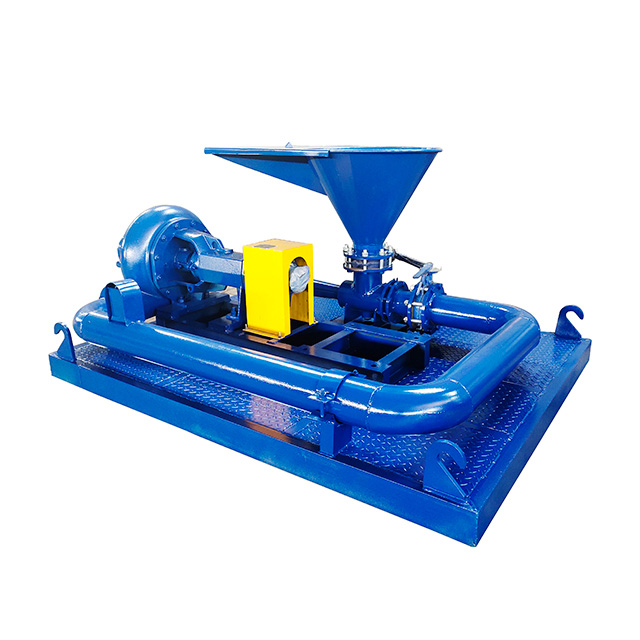

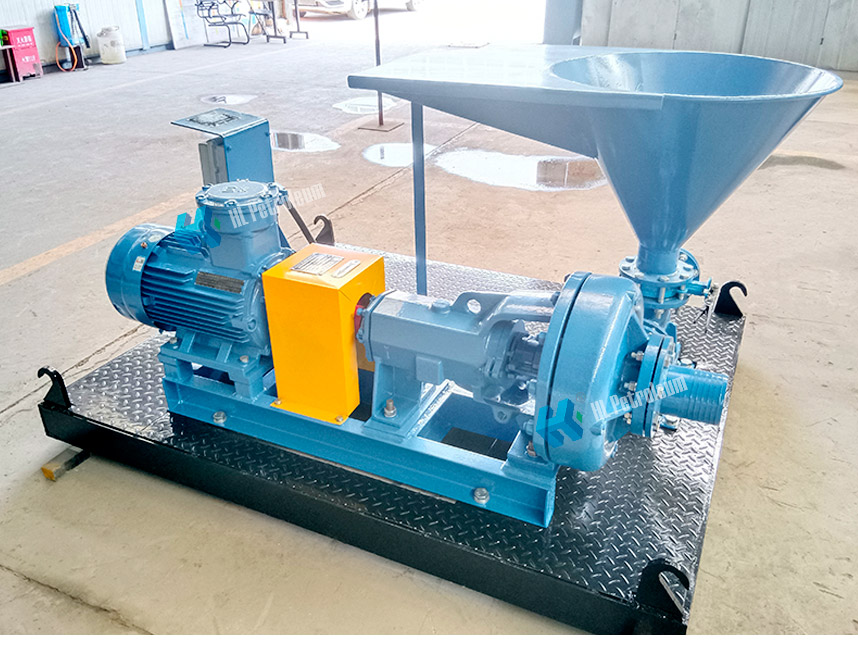

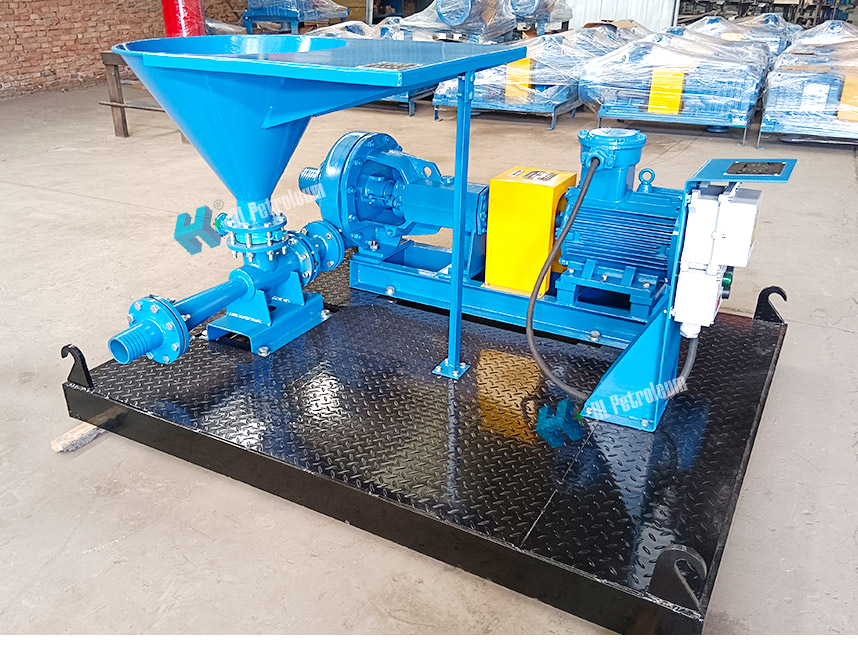

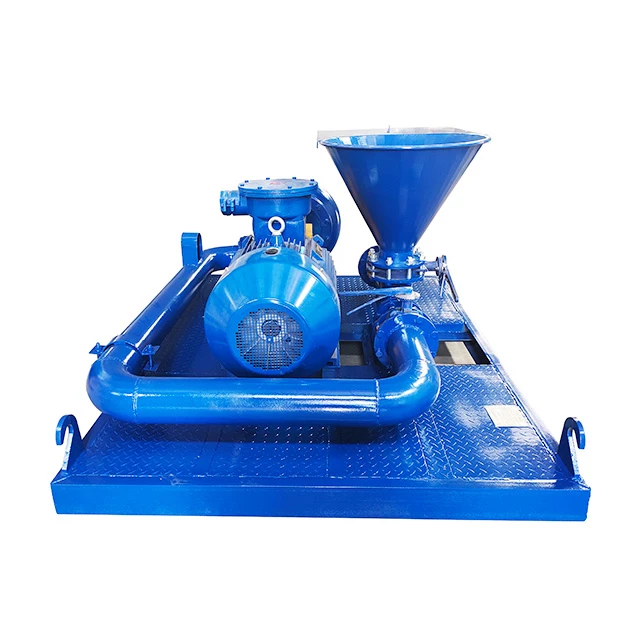

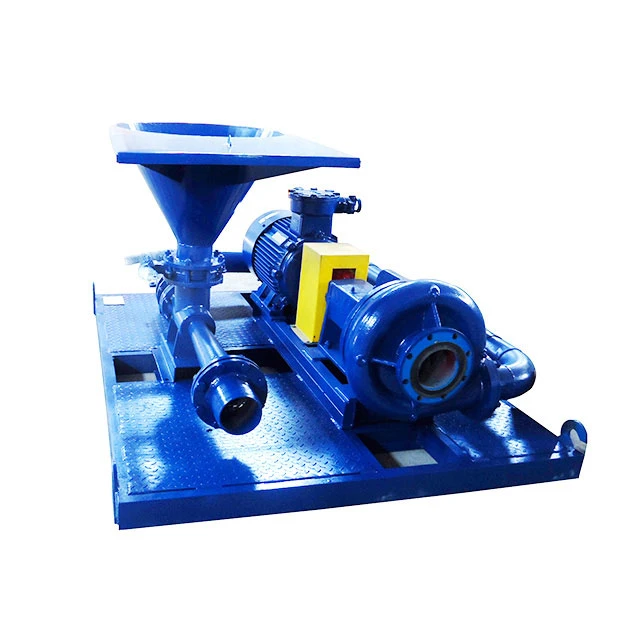

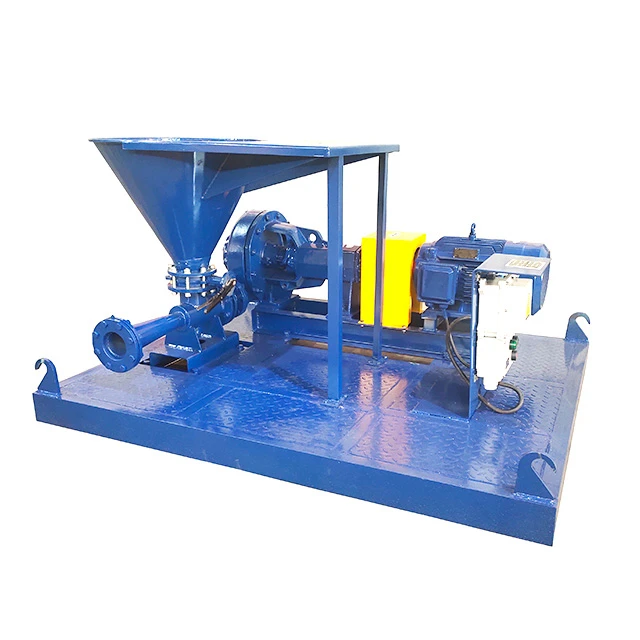

The mud mixing unit is a supporting device for drilling rig solids control systems and trenchless mud systems. It can meet the needs of mud weighting and preparation for drilling rigs with depths from 1,000 to 9,000 meters. The mixer consists of a centrifugal sand pump and a jet mixing funnel, connected by a manifold and valves, and mounted on a skid-mounted base. The system features a rational structure, reliable performance, and easy mobility. It is available in single-unit and double-unit configurations.
Mud Mixing Unit Features
1. Optimized, compact design, small footprint, and excellent performance.
2. The mixing funnel utilizes feedback from multiple drilling crews, resulting in excellent jet flow and high mixing capacity.
3. The funnel and sand pump can be installed either separately or in combination. The mixing hopper and sand pump are connected by a manifold and valve assembly. The seals utilize both packing and mechanical double seals, ensuring excellent sealing performance.
HHQ80 Mud Mixer Technical Parameters
Matched Sand Pump: SB4×3 (15kW)
Processing Capacity: 80m³/h
Slurry Inlet Diameter: 100mm
Slurry Outlet Diameter: 80mm
Nozzle Diameter: 20mm
External Dimensions: 1800*1600*1000mm
Unit Weight: 700kg
Mud Mixing Unit Installation
Depending on the site conditions, level the foundation on the side or end of the mud tank. The foundation should be level with the tank foundation. Once the equipment is in place, connect the pump intake to the tank using piping (preferably, avoid using hoses). Connect the power cord and jog the sand pump to verify that it is rotating correctly.
