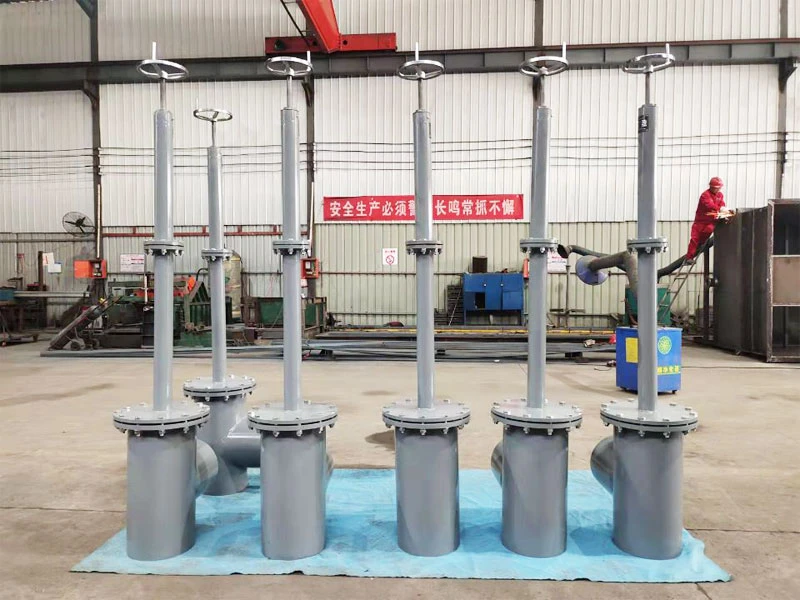

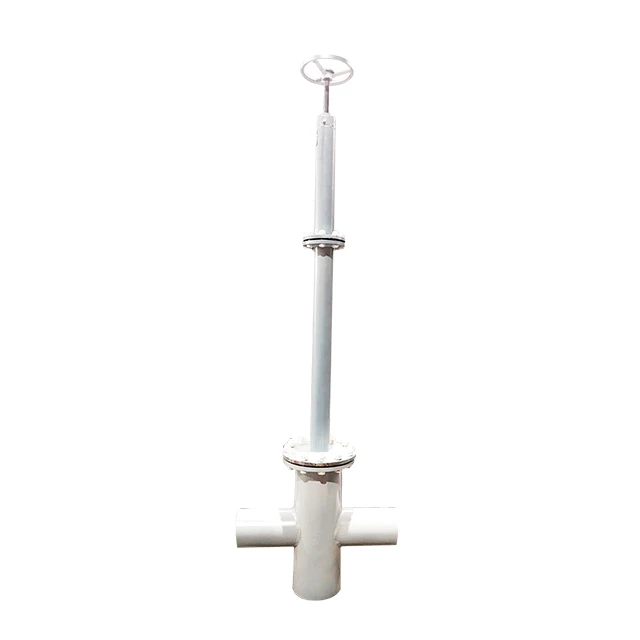

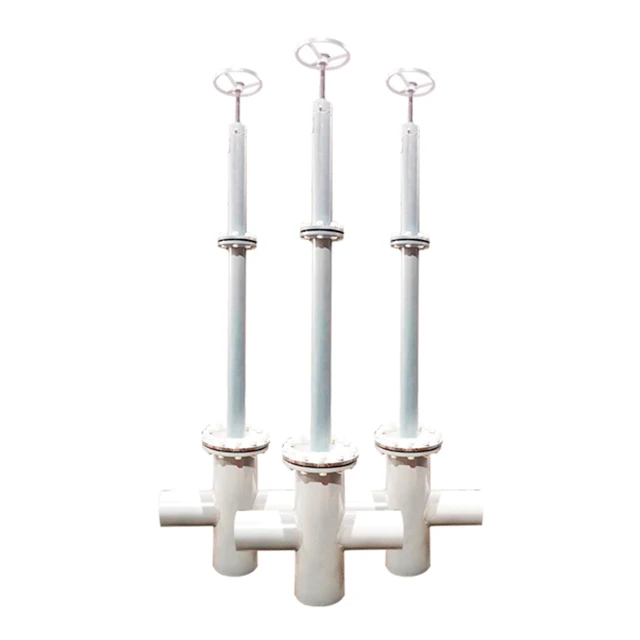

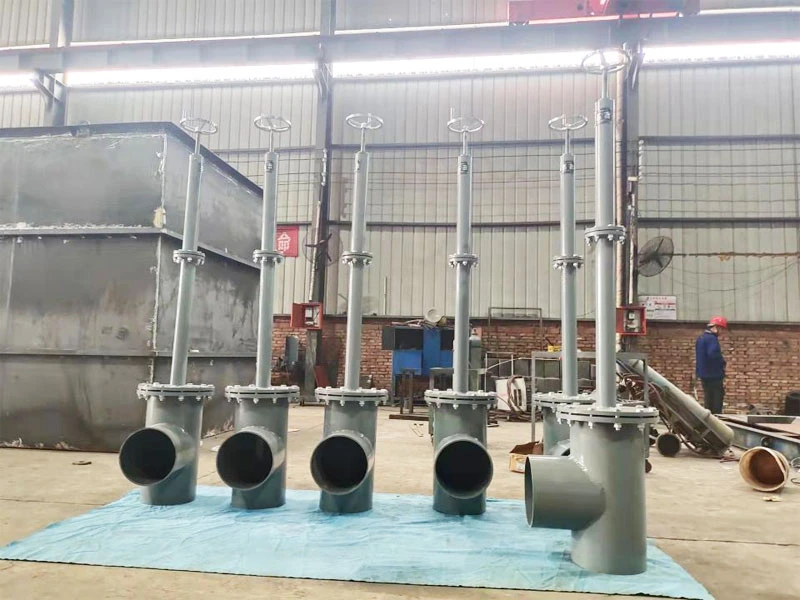

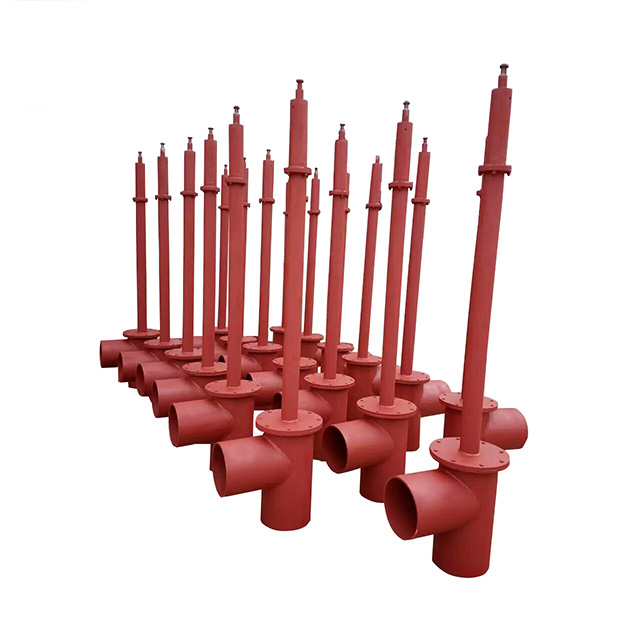

The mud tank suction valve is suitable for the pipeline and warehouse of a mud circulation tank with mud as the medium. It serves as a control valve for suction and discharge and also functions as a switch for balance control between warehouses. This valve has a compact structure and a reasonable design. Based on many years of experience, its design uses a Vale-type seal, which provides a longer service life and more stable performance.
Mud Tank Suction Valve Parameters
| Product name | Mud tank valve | |||
| Nominal pressure | 1.1MPa | |||
| Distance between tank surface and pipeline | 2070mm | |||
| Dimensions | Customized according to user needs | |||
| Model | DN150（6″） | DN200（8″） | DN250（10″） | DN300（12″） |
| Valve body diameter | 219mm | 273 mm | 325 mm | 377 mm |
| External dimensions | 159 mm | 219mm | 273 mm | 325 mm |
Mud Tank Suction Valve Advantages
1. The operation interface is located on the top of the mud tank, making control and operation convenient and easy.
2. The valve plate features a tapered surface, and the screw comes equipped with a bearing, both of which reduce effort.
3. A sealed container houses the screw nut and bearings of the valve body. This protects them from mud and rust, making them more durable and providing stable performance.
4. The valve body and housing are connected in multiple sealed sections, making disassembly and maintenance easy.
