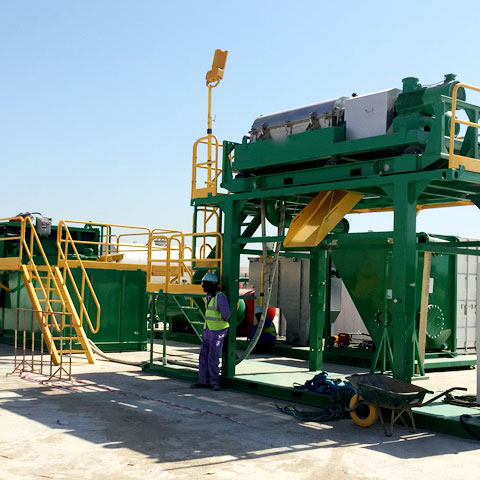

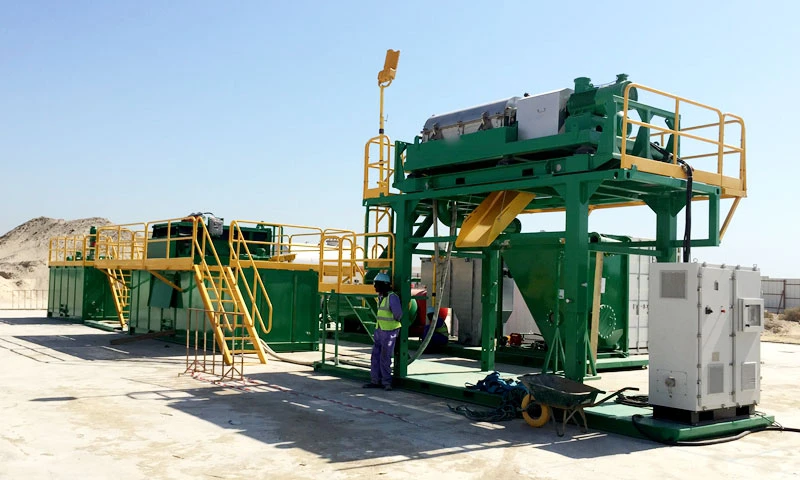

The oily sludge treatment system is a specialized system for treating spilled oily sludge, tank cleaning sludge, and contaminated soil. This system primarily uses a combination of physical, chemical, and biological methods to treat oily sludge, achieving the goals of reducing sludge volume, lowering oil content, and removing harmful substances. The entire system is skid-mounted, offering flexibility and mobility, making it suitable for field operations and emergency response to sudden pollution incidents.
Equipment Features and Advantages:
1. The system is flexible and adaptable, employing skid-mounted or vehicle-mounted designs.
2. The system uses PLC intelligent control.
3. Skid-mounted systems require less investment and offer higher returns.
4. The system can be upgraded to a larger processing station, increasing capacity.
5. The treated water is reused, with no wastewater discharge.
6. The system offers three heating methods: electric, steam, and thermal oil.
7. The treated petroleum solids content is ≤2%, achieving volume reduction.
8. The system uses an insulated container design, resulting in a beautiful and simple appearance.
9. The system is easy to operate and maintain, requiring only two operators per shift.
10. Systems are connected via quick-connect couplings and flexible hoses for easy installation.
11. The system requires less reagent dosage and has low operating costs.
Technical Parameters
| model | Processing volume | power | Heating method | Skid-mounted quantity | form | Implementation Standards | Operating temperature | Oil | water |
| HY5 | 5m³/h | 300kw |
Electric/Steam/Oil |
4 |
Skid-mounted / Vehicle-mounted |
HJ607-2011 |
70-90℃ |
Recycle |
reuse |
| HY10 | 10m³/h | 360kw | 5 | ||||||
| HY20 | 20m³/h | 400kw | 6 | ||||||
| HY30 | 30m³/h | 420kw | 6 | Website building |
