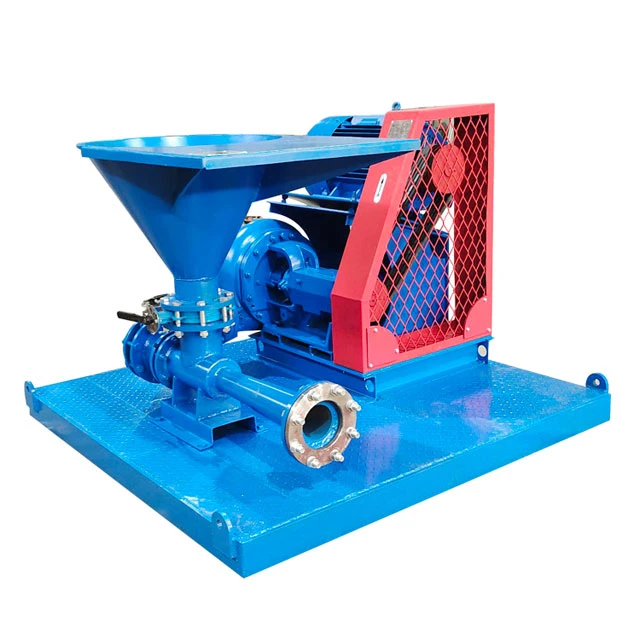

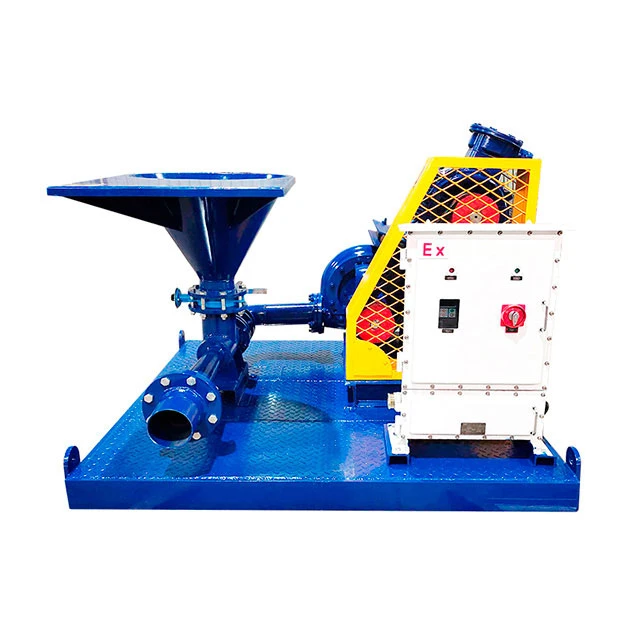

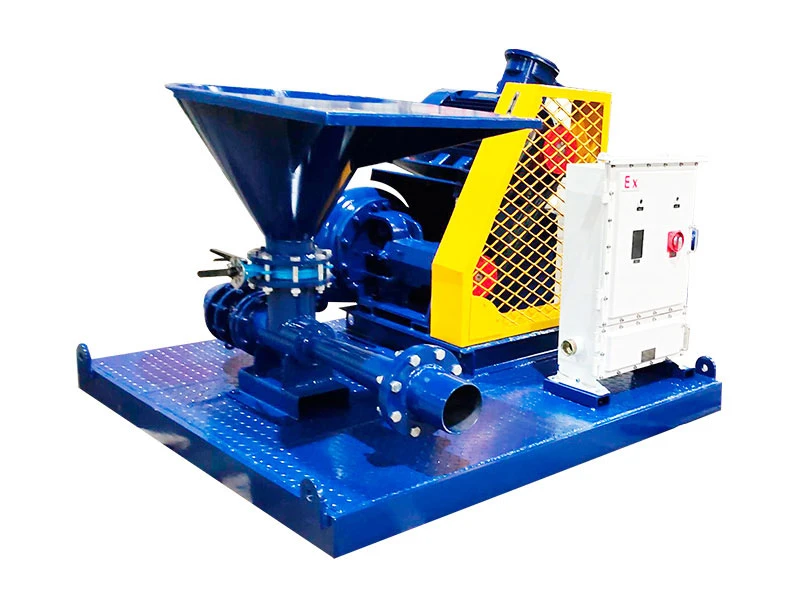

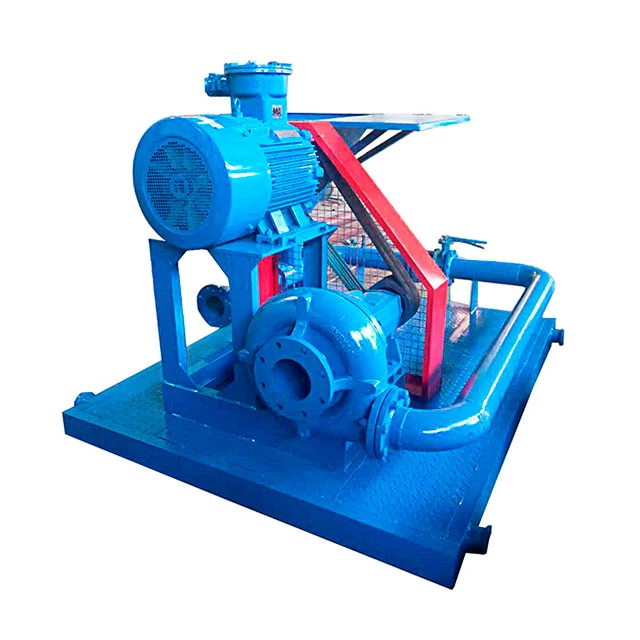

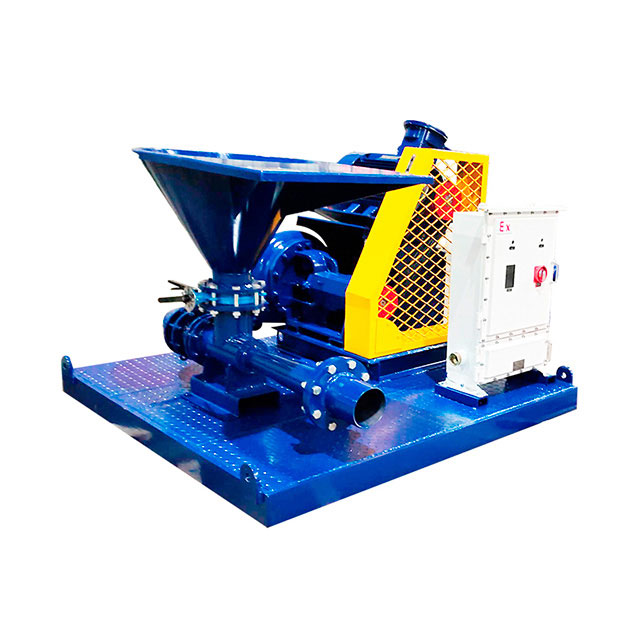

The shear mud mixer consists of a shear pump and a jet mixing hopper connected by a manifold valve and mounted on a base.
Shear Mud Mixer Technical Parameters
Model HHQ125-J
Supplied Shear Pump HJB6*5-37
Processing Capacity 105m³/h
Inlet Diameter 150mm
Outlet Diameter 125mm
Nozzle Diameter 28mm
Dimensions 2200*1700*1200mm
Unit Weight 1350kg

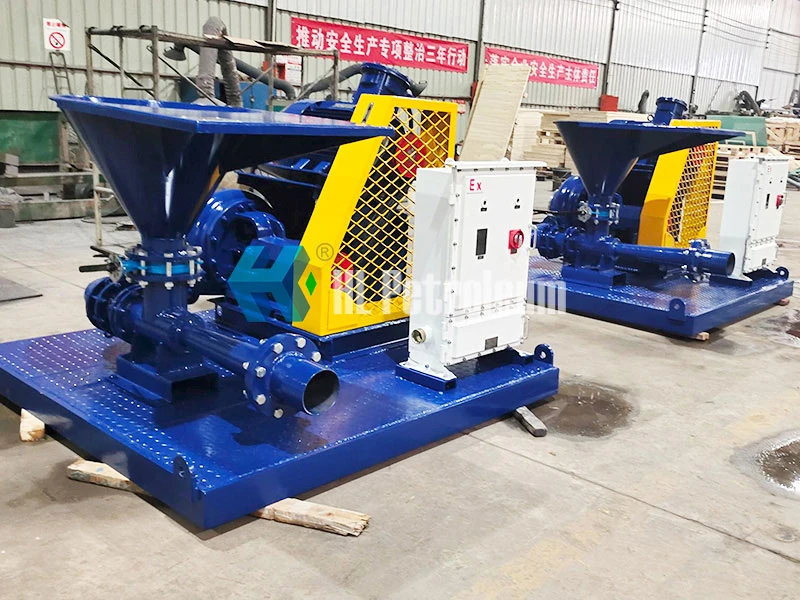

Shear Mixer Shipping Image
Contact Us
Sales: HL
E-mail: [email protected]
Early winter is approaching, bringing a chill. While the factory outside appears bleak, the interior is bustling with activity. This is the strength of Henglian Petroleum, with orders and shipments arriving monthly. Today, a Xi’an Henglian shear-mixing unit was delivered to a subway tunnel boring machine site. It will primarily assist China Railway Construction Corporation in tunneling the subway, processing the shield slurry and meeting environmental protection regulations.
This shear-mixing unit is primarily used for mixing and adding chemicals to shield slurry, as well as for shearing and shredding large particles and flocs. It features a simple structure, a well-designed layout, and easy operation.
