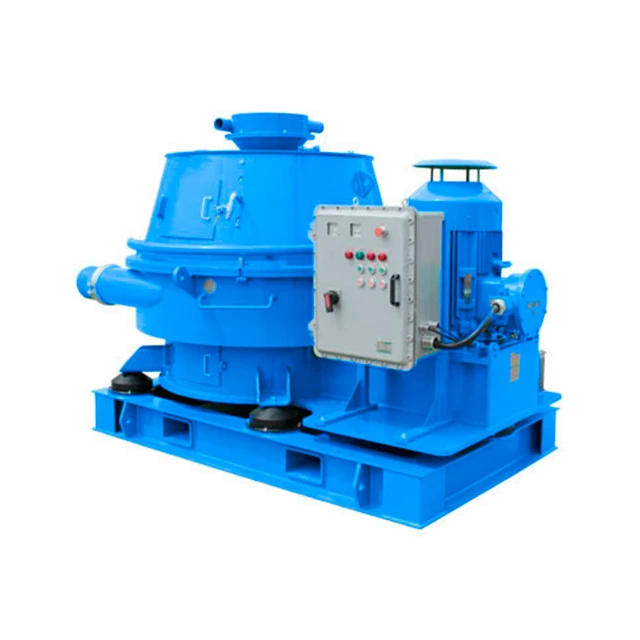

Vertical cuttings dryer is an important equipment in drilling waste management projects, mainly used for treating oil-based mud(OBM) and composite base mud (SBM). HL Petroleum mainly produces 2 models of vertical drilling cuttings dryers with different processing capacities, HSG700 and HSG1000. The dryer uses the centrifugal force generated by high-speed rotation as the filtering driving force to separate the liquid phase from the solid phase separated by the vibrating screen. The separated liquid phase is further separated and treated to meet the requirements and purposes of reuse, thereby achieving the reduction of drilling fluid waste.
Vertical Cuttings Dryer Technical Parameters
Model | HSG700 | HSG1000 |
Capacity(Ton/h) | 5~15 | 30~50 |
Feeding particle size(mm) | 0~13 | 0~13 |
Screen diameter(mm) | 720 | 930 |
Rotation speed(rpm) | 700 | 900 |
G-Force(G) | 621 | 420 |
Motor power(KW) | 22 | 55 |
Drive mode | Soft starting | Soft starting |
Dimension (mm) | 2200×1690×2150 | 3420×2395×2620 |
Weight(KG) | 3500 | 4350 |
>>Send an Enquiry [email protected]<<
The Features of cuttings dryer
1. The speed can reach 900 RPM, generating a separation factor of 420G, effectively separating liquid from drill cuttings.
2. Solid-liquid separation reduces the mud content in drill cuttings, which in turn reduces the amount of waste that needs to be disposed of.
3. The manufacturer makes the discharge scraper from carbide, giving it a long service life.
4. The equipment effectively separates and recovers a large proportion of mud, which allows workers to reuse it in the mud circulation system. This process recovers mud lost due to screen runout, mobile derrick, and screen blockage.
5. The manufacturer makes the dryer drum from a corrosion-resistant alloy.
6. You can equip the discharge port with a screw conveyor to facilitate the transportation of dry drill cuttings and ensure continuous operation of the equipment.
7. It is easy and fast to use, reducing product costs.
Drill cuttings dryer applicable industries

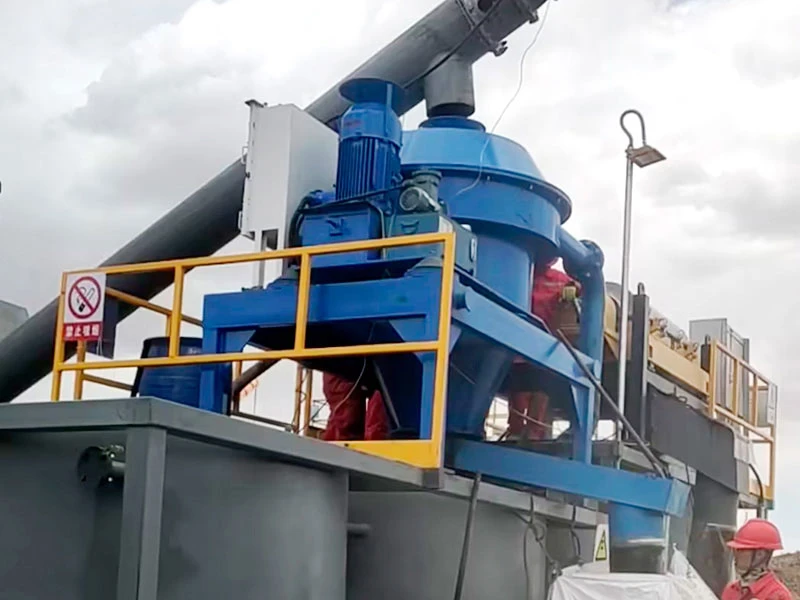

Vertical Cuttings Dryers are suitable for a variety of applications, including onshore and offshore oil and gas drilling, coalbed methane excavation, trenchless directional drilling, piling, and wastewater and mud treatment.
Drill cuttings dryers are primarily used in oil-based mud systems where the mud remains on the ground.
