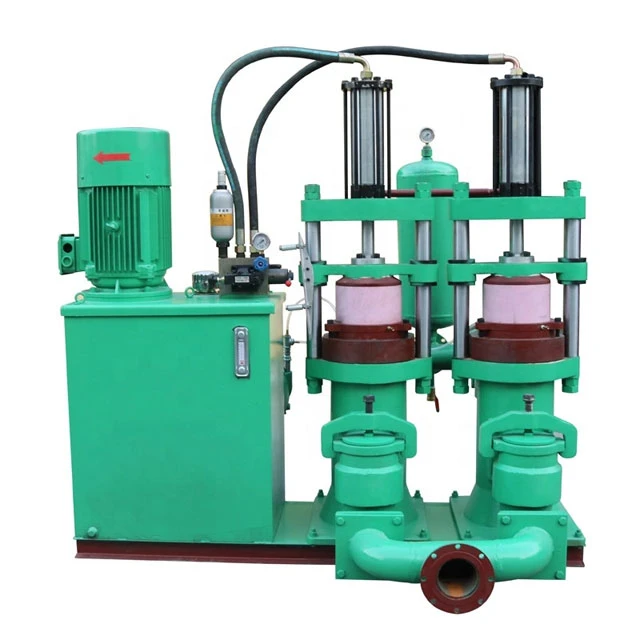

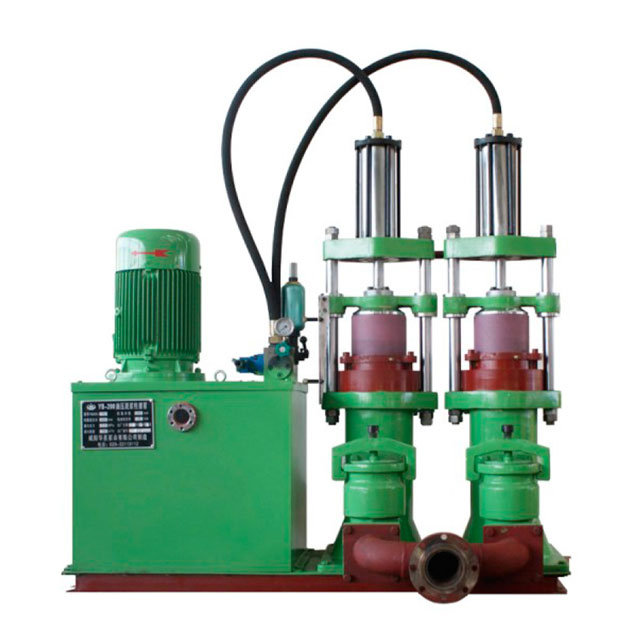

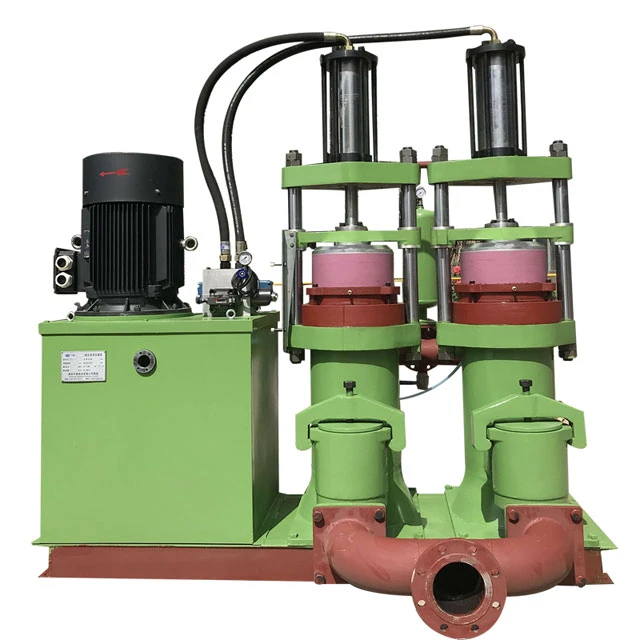

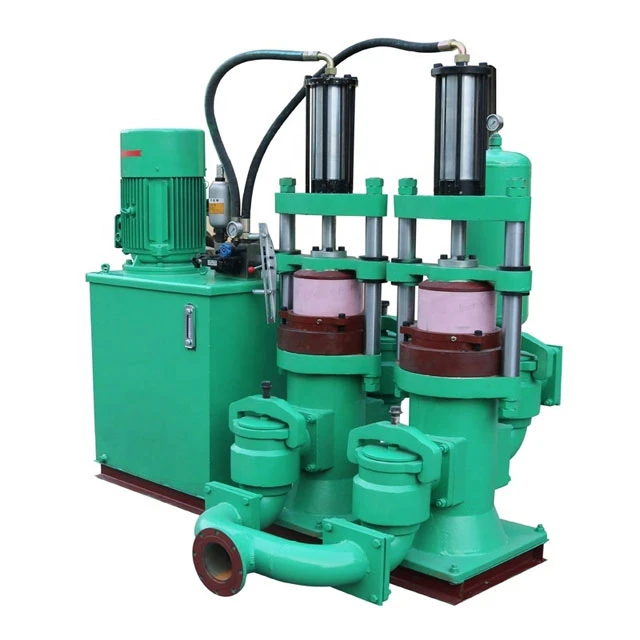

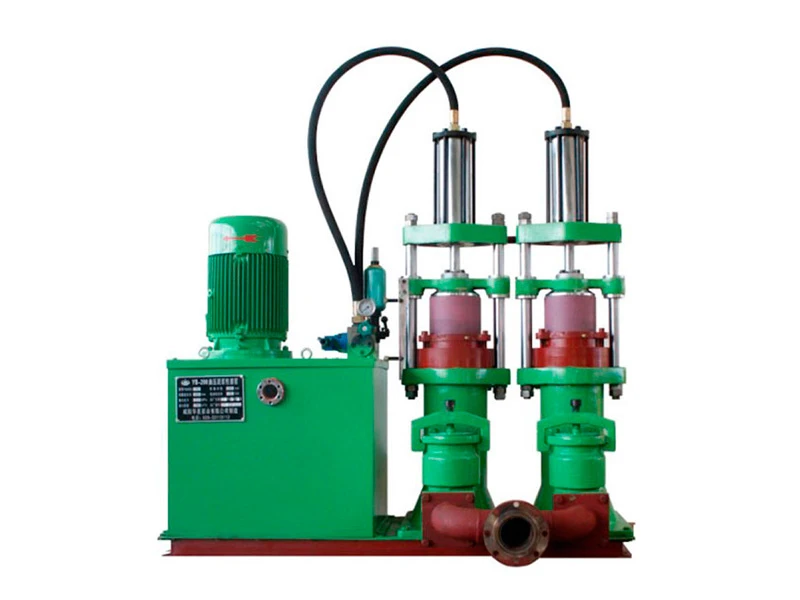

Ceramic plunger pumps can automatically control the output flow rate and ensure that the set pressure remains constant. A pressure value is set according to the actual working conditions, and the pressure stops rising when it reaches the set value. At this time, the flow rate of the ceramic plunger mud pump can automatically change the operating speed and maintain the set pressure between zero and a large flow rate as needed.
Advantages of Ceramic Plunger Pumps
1. Hydraulic Drive
Hydraulic drive, double-cylinder double-acting, high flow rate, high head, long delivery distance, and low energy consumption.
2. Continuous Operation
Balanced operation, long-term continuous operation, and high reliability.
3. Wide Pressure Range
Low noise, wide adjustable pressure range, and minimal pressure fluctuation.
4. Corrosion Resistance
Suitable for high wear-resistant and corrosion-resistant industries.
5. Low Operating Costs and Long Service Life
Utilizing α-type alumina ceramic plungers, wear is minimal, operation, installation, and maintenance are convenient, resulting in low operating costs and a long service life.
Ceramic Plunger Pump Technical Parameters
| Model | Rated Flow Rate (m3/h) | Pressure Range (Mpa) | Rated Pressure (Mpa) | Stroke (mm) | Compatible Motor (kw) | Dimensions (L*W*H) mm | Inlet/Outlet Flange PN16 |
| HYB85-2.8 | 2.8 | 0-2.5 | 2 | 220 | 4 | 1200*850*1500 | ∅57/∅48 |
| HYB120-7.1 | 7.1 | 0-2.5 | 2 | 250 | 7.5 | 1600*1000*1600 | DN80/G2″ |
| HYB140-10 | 10 | 0-2.5 | 2 | 250 | 11 | 1600*1000*1600 | DN80/G2″ |
| HYB200D-24 | 24 | 0-1.5 | 1.2 | 250 | 15 | 1700*1200*1900 | DN100/DN80 |
| HYB200-19 | 19 | 0-2.0 | 1.8 | 250 | 18.5 | 1700*1200*1900 | DN100/DN80 |
| HYB250D-35 | 35 | 0-1.2 | 1.0 | 250 | 18.5 | 1900*1300*2200 | DN125/DN100 |
| HYB250-25 | 25 | 0-2.0 | 1.8 | 250 | 22 | 1900*1300*2200 | DN125/DN100 |
| HYB300D-45 | 45 | 0-1.8 | 1.5 | 250 | 30 | 2000*1300*2200 | DN125/DN125 |
| HYB300-40 | 40 | 0-2.0 | 1.8 | 250 | 30 | 2000*1300*2200 | DN125/DN125 |
| HYB300J-60 | 60 | 1.5/2.0 | 1.2/1.8 | 350 | 37/45 | 2000*1300*2400 | DN150/DN150 |
| HYB400-80/100/120 | 80/100/120 | 0-1.5 | 1.2 | 350 | 55 | 2600*2500*2600 | DN150/DN150 |
| HYB500-150 | 150 | 2 | 1.8 | 450 | 110 | 3800*2200*3000 | DN200/DN200 |
The above are basic models; customization is available upon request.
Applications of Ceramic Plunger Slurry Pumps

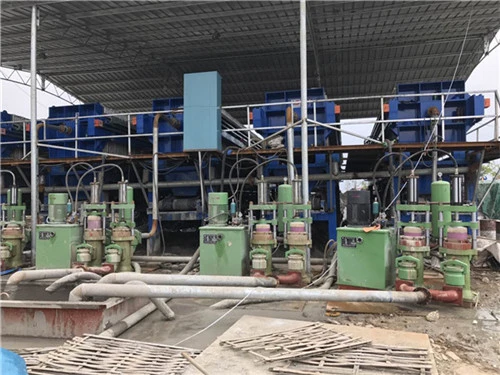

Used for ceramic slurry spray drying, high-pressure spray combustion of coal-water slurry, long-distance transportation of clean and wastewater, various suspensions, slurries, and sand-containing liquids; also suitable for filter press feeding.
