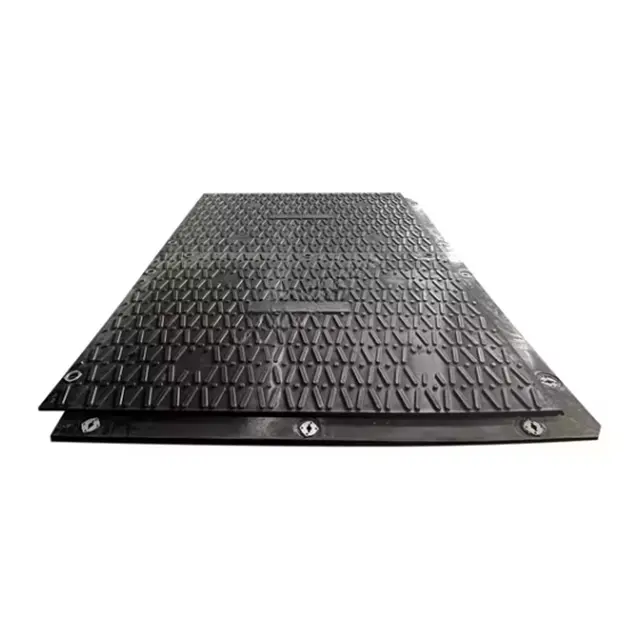

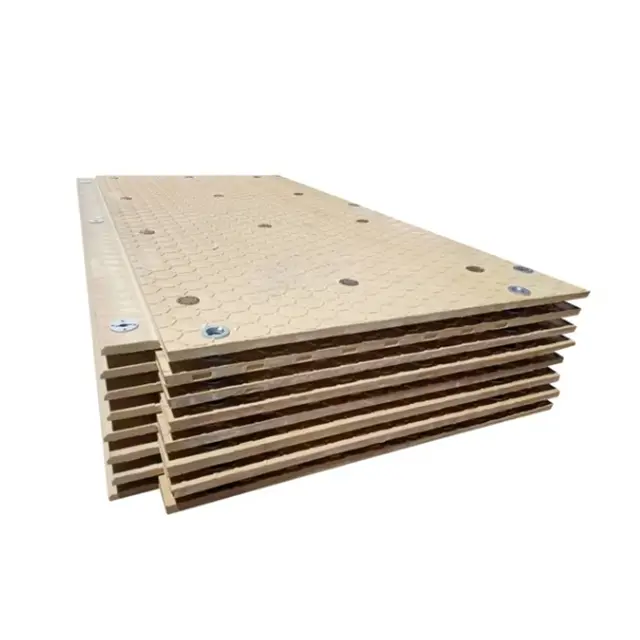

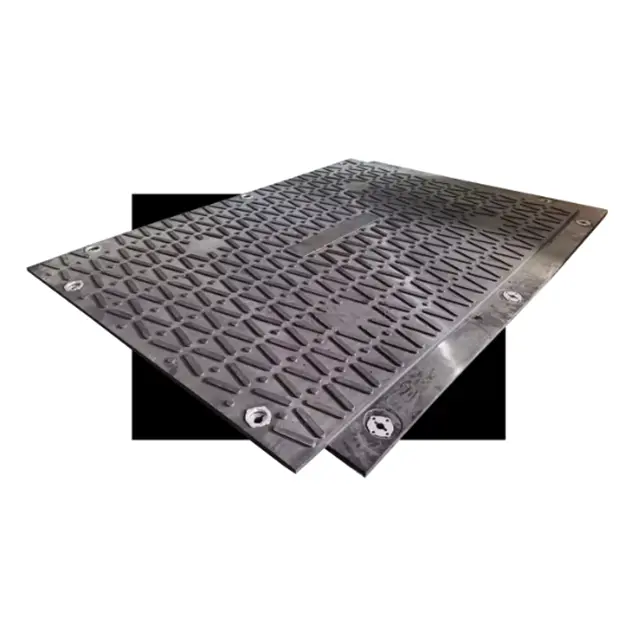

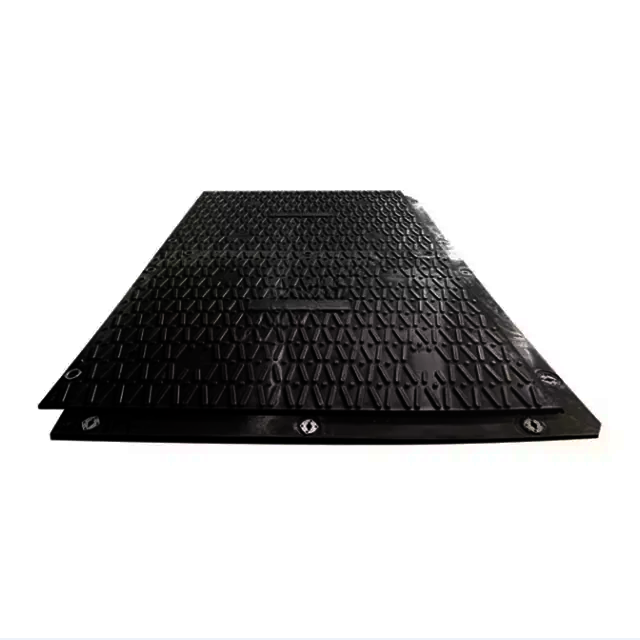

This type of composite rig mat uses high-strength composite polyethylene material through hot processing, so we also call them Composite Rig Mats. It is suitable for temporary road construction on soft surfaces and foundation construction on construction sites. It has the advantages of light weight, anti-slip and wear resistance, high load-bearing and pressure resistance, corrosion resistance and aging resistance, long service life, and easy disassembly and assembly, which can still maintain stable performance in extremely cold and hot weather. In addition, it has obvious advantages in special landforms such as swamps.
Composite Rig Mats Specification
| Model | Length | Width | Thickness(including pattern) | Weight | Load Capacity | Qty in Container |
| HXA-01 | 19’/5800mm | 7.2’/2180mm | 3.5’’/88mm | 590kgs/1300lbs | 120tons | 42pcs in 40ft 21pcs in 20ft |
| HXA-02 | 14’/4270mm | 7.0’/2134mm | 3.5’’/88mm | 435kgs/960lbs | 120tons | 42pcs in 40ft 21pcs in 20ft |
| HXA-03 | 19’/5800mm | 7.2’/2180mm | 4.0’’/100mm | 672kgs/1480lbs | 140tons | 38pcs in 40ft 19pcs in 20ft |
| HXA-04 | 14’/4270mm | 7.2’/2134mm | 4.0’’/100mm | 488kgs/1075lbs | 140tons | 38pcs in 40ft 19pcs in 20ft |
More details about the composite rig mats
| Product | Composite plastic mats |
| Material | High-Density Polyethylene (HDPE) with special impact modifiers that incorporate UV resistance and anti-static properties |
| Product Edging | Straight |
| Dimension | Refer to specification sheet |
| Weight | Refer to specification sheet |
| Packaging | Shrink Wrapped on Pallets |
| Non Absorbent | Yes |
| Special Adhesives | No |
| Interlock Loss | 0.00 feet |
| Interlocking Connections | No |
| Made In | P.R.C |
| Surface Finish | Textured Tread |
| Surface Design | Solid color,Black or Tan/Beige |
| Installation Method | Dry lay |
| UV Treated | Yes |
| Reversible | No |
| Border Strips Included | No |
| Manufacturer Warranty | 1 Year Limited |
Why choose this Composite mat?
1. Hollow design, large size mat with strong pressure bearing capacity, which can quickly cover the ground
2. UV protection and anti-static performance
3. Quick installation, easy to operate
4. Mat that can withstand harsh temperatures and weather
5. Long service life, 100% recyclable, can be used multiple times
6. Can be connected to most common mats
7. Protect the environment and equipment, form an isolation layer
8. Build a reliable working surface, improve lifting stability, and reduce equipment downtime
