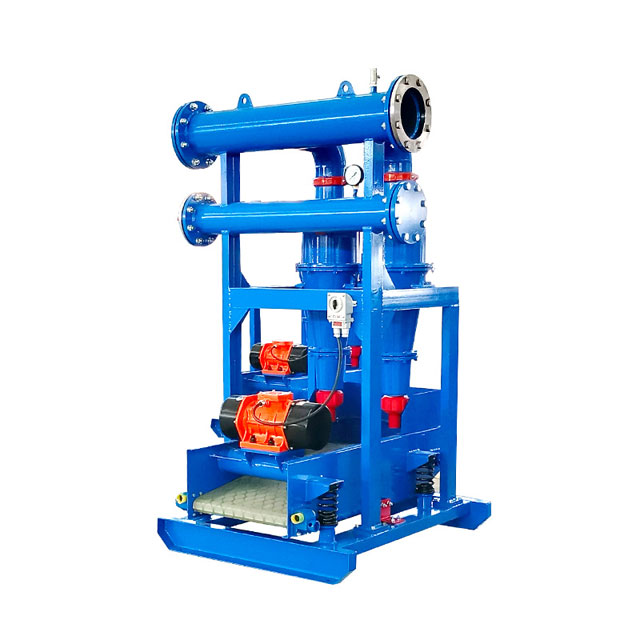

Desander In Drilling Rig

1. Compact structure, small footprint, and flexible transportation;

2. Clamp-type connection for easy installation and removal;

3. Cyclone material is highly wear-resistant polyurethane, providing a longer service life;

4. One, two, or three 8″, 10″, or 12″ desander cyclones can be flexibly selected depending on the processing volume.

A desander in drilling rig is a secondary solids control device in the drilling fluid solids control system. It is a crucial device for stabilizing and regulating drilling fluid technical specifications. It is also known as a cyclone desander, mud desander, or drilling fluid desander.

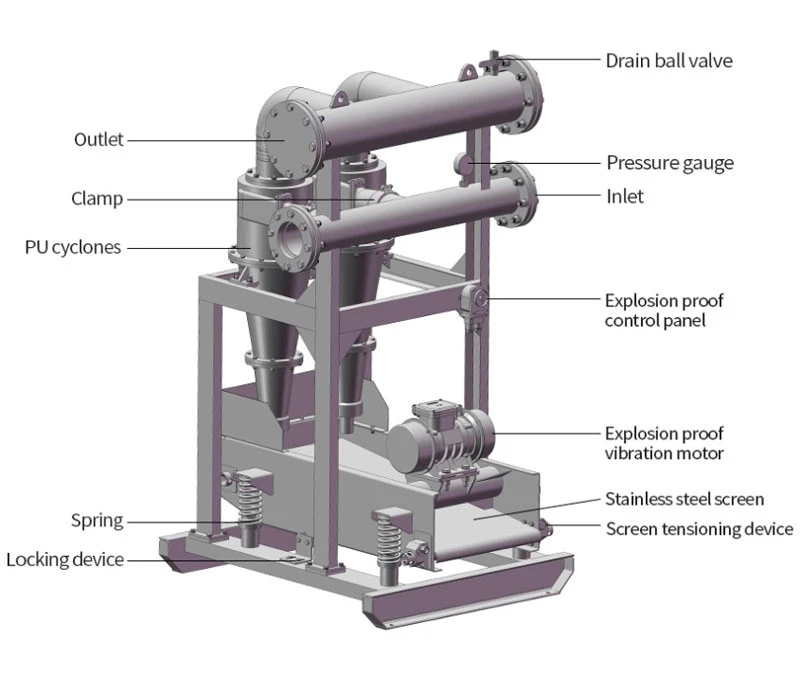

A cyclone desander is designed based on the principle of particle settling. A sand pump generates a certain pressure and velocity for the separated drilling fluid, which spirals into the cyclone’s inner wall. Coarser particles, driven by centrifugal force and gravity, spiral downward along the cyclone’s inner wall, exiting through the underflow outlet and falling onto a fine-mesh vibrating screen below for separation. The remaining fluid spirals upward through the cyclone and enters the tertiary separation device, a desilter, through the overflow outlet for further purification.

Desander in drilling rig are commonly used in oil drilling, trenchless pipelines, shield tunneling slurry balance, and river silt removal.

Technical Parameters

Model	HCS250S	HCS200x2S	HCS250x2S	HCS300x2S
Processing capacity	50 m³/h	100 m³/h	200 m³/h	240 m³/h
Cyclone diameter	250mm(10″)	200mm(8″)	250mm(10″)	300mm(12″)
Cyclone quantity	1	2	2	2
Separation scale	20～40μm	20～40μm	20～40μm	20～40μm
Motor power	0.5 KW	0.5 KW	0.5 KW	0.75 KW
Application	Wells less than 100 meters	Horizontal directional drilling	4000m oil drilling	Oil drilling over 5000 meters
Matched sand pump	SB4x3-15KW	SB5x4-22KW	SB8x6-55KW	SB8x6-75KW
Weight	550KG	750KG	800KG	1100KG
Dimensions	1500x800x1800 mm	1500x1200x1800 mm	1500x1300x1800 mm	1500x1500x1800 mm
