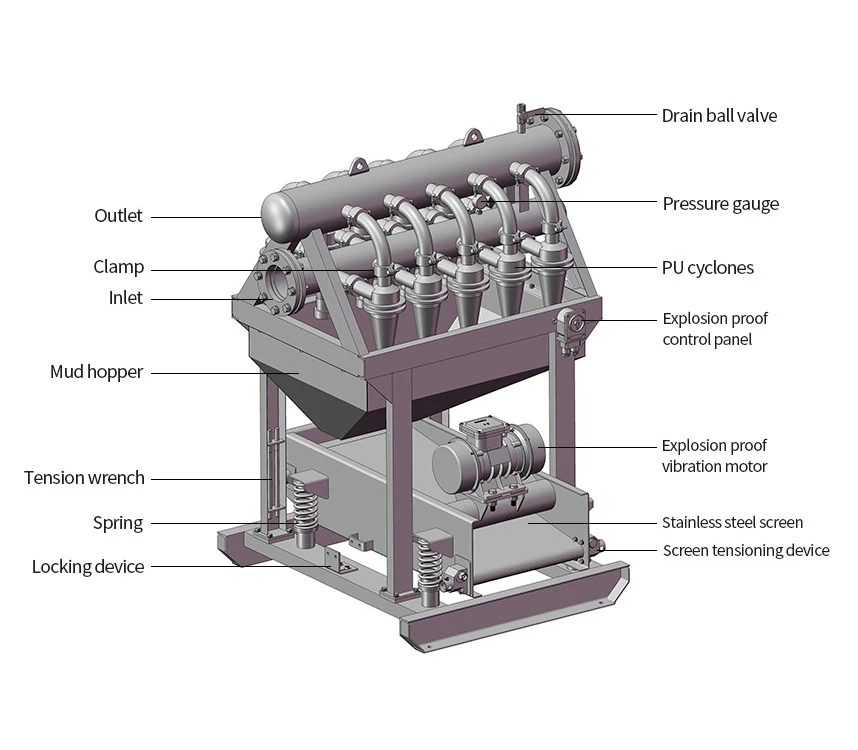

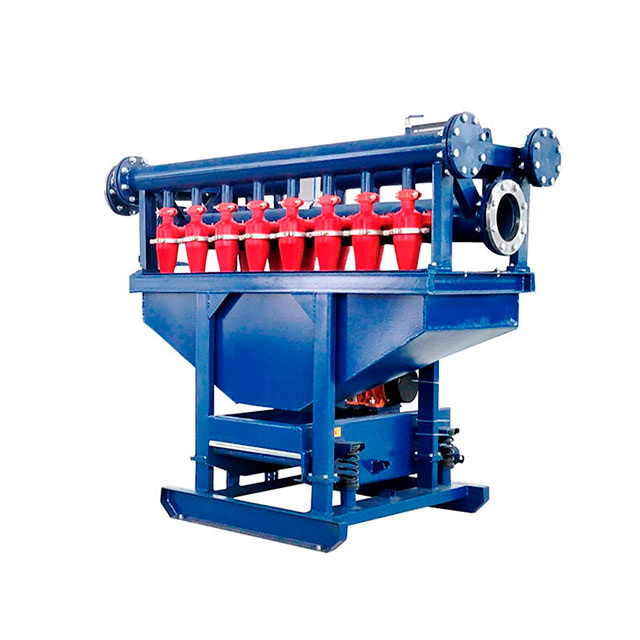

The desilter in a drilling rig operates as a three-stage solids control device within the drilling fluid’s solid phase control system. It is a combination of a cyclone desilter and a shale shaker, also can be supplied without the underflow screens according to customer’s request.
The desilter in a drilling rig, which uses 4-inch and 5-inch desilter cyclones, mainly separates solid particles with a particle size of 15-44 microns from the drilling fluid. HCN series desilter is one of the important equipment to stabilize and adjust the technical indicators of drilling fluid.
Technical parameters of mud desilter
| Model | HCN100x4S | HCN100xS | HCN100x10S | HCN100x16S |
| Capacity | 50 m3/h | 100 m3/h | 160 m3/h | 200 m3/h |
| Cyclone Diameter | 100mm(4″) | 100mm(4″) | 100mm(4″) | 100mm(4″) |
| Cyclone Quantity | 4 | 8 | 10 | 16 |
| Separation Particle Size | 20～40μm | 20～40μm | 20～40μm | 20～40μm |
| Motor Power | 0.5 KW | 0.5 KW | 0.5 KW | 0.75 KW |
| Applicable Field | Wells less than 100 meters | Horizontal Directional Drilling | 4000m oil drilling | Oil drilling above 5000 meters |
| Supporting Sand Pump | SB4x3-15KW | SB5x4-22KW | SB8x6-55KW | SB8x6-55KW |
| Weight | 550KG | 750KG | 800KG | 1100KG |
| Dimension: LxWxH | 1500x800x1800 mm | 1500x1200x1800 mm | 1500x1300x1800 mm | 1500x1500x1800 mm |
Desilter In Drilling Rig Features
1. The desilter cone’s highly wear-resistant polyurethane material ensures a longer service life.
2. Clamp-type connections facilitate installation and removal.
3. The underflow screen can be replaced upon request.
4. Simple operation, minimal wear, and easy maintenance.
5. Stringent sandblasting and spraying procedures.
6. Wear-resistant and corrosion-resistant coating.
7. ATEX, IEC, DGMS, and UL certifications available.
