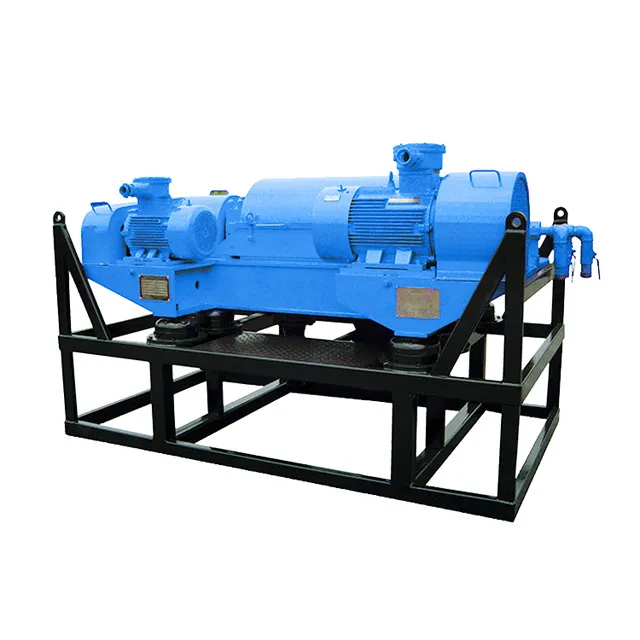

Drilling centrifuge is a key component of solids-liquid separation in solids control equipment. They are typically installed at the final stage of a solids control system to treat non-weighted drilling fluids, removing harmful solids larger than 2μm. Treating weighted drilling fluids removes excess colloids, controls viscosity, and recovers barite. Treating cyclone underflows allows for liquid recovery, minimizing waste of fresh water or oil. Centrifuges are also ideal for treating waste drilling fluids and preventing environmental pollution.
Drilling Centrifuge Features
1. Flow control and continuous discharge;
2. Core components made of duplex stainless steel for wear and corrosion resistance;
3. Overload protection and operation;
4. High speed for improved separation;
5. Explosion-proof design for harsh environments;
6. Variable frequency control for separation of various materials.
Technical Parameters of Drilling Centrifuge
| Model | LW355×1257-N | LW450×842-N | LW450×1000-N | LW500×1000-N | LW600×1000-N |
| Bowl Diameter(mm) | 355 | 450 | 450 | 500 | 600 |
| Bowl Length(mm) | 1257 | 842 | 1000 | 1000 | 1000 |
| Max. Capacity(m³/h) | 30 | 40 | 50 | 50 | 60 |
| Max Bowl Speed(rpm) | 3200 | 1800 | 2200 | 2500 | 1600 |
| Separation Factor | ≤2296 | ≤820 | ≤1218 | ≤1817 | ≤900 |
| Main Motor Power(KW) | 30 | 22 | 30 | 37 | 45 |
| Auxiliary Motor Power(KW) | 7.5 | 5.5 | 7.5 | 7.5 | 7.5 |
| Dimension:Lx Wx H(mm) | 3000×1500×1650 | 2370×1700×1800 | 2580×1700×1850 | 2660×1670×1760 | 3060×1870×1790 |
| Weight(kg) | 3300 | 2950 | 3300 | 3400 | 3500 |
Note: The above models are available in medium- and high-speed versions, which require notification when placing an order.
Xi’an HL Petroleum Equipment Co., Ltd. is a manufacturer of drilling fluid solids control equipment. Our main products include shale shakers, desanders and desilters, degassers, centrifuges, sand pumps, mud agitators, and mud treatment systems. Our products are widely used in oilfield drilling, trenchless horizontal directional drilling, environmental wastewater treatment, coal sorting, shield tunneling, and bridge construction.
