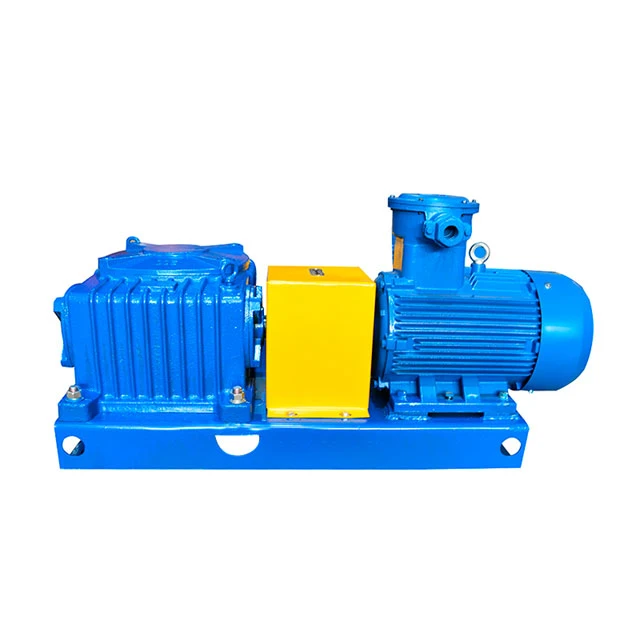

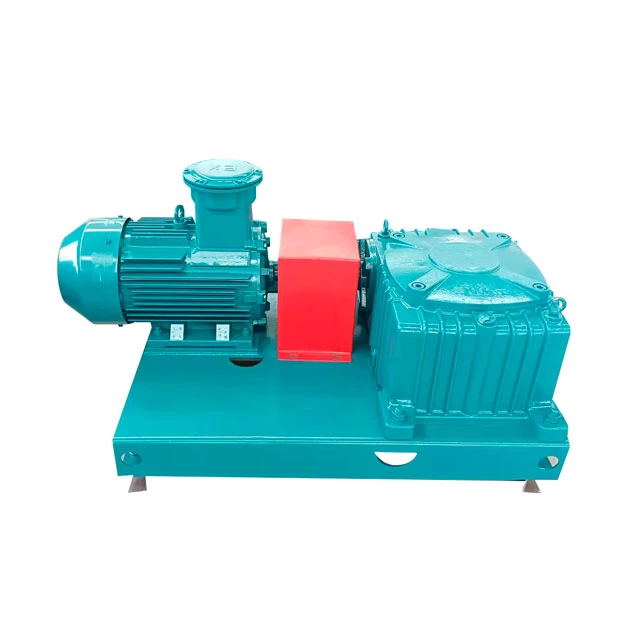

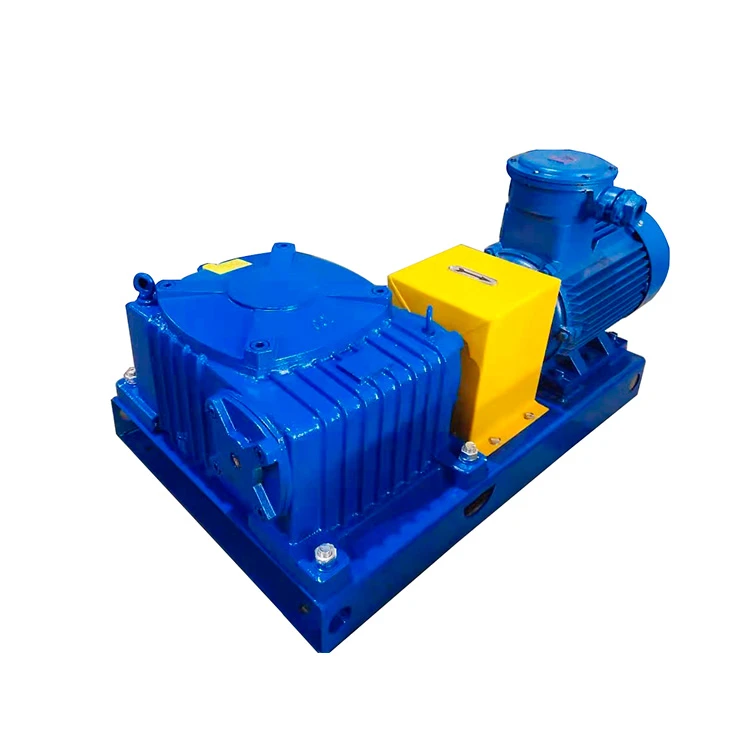

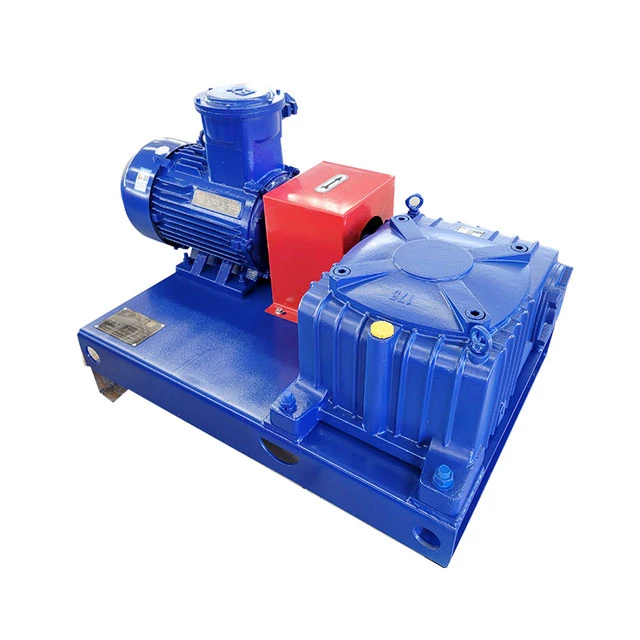

Drilling Mud Agitator

Mud agitator design features:

1. The combination of reducer and explosion-proof motor is suitable for various harsh working conditions.

2. The worm gear reducer is used for transmission, with large torque transmission and smooth operation.

3. The unique impeller design has high mixing efficiency and uniform suspension of solid control particles.

4. The motor is placed horizontally for easy installation and maintenance.

5. The mixer components and performance configuration can be customized according to customer requirements.

6. Reliable operation, low energy consumption, low noise and high cost performance.

The drilling mud agitator maintains fluid stability and prevents solid settling in mud tank solids control systems. By continuously blending drilling fluid, this essential equipment keeps mud properties uniform, protecting drilling efficiency and ensuring site safety.

Technical Parameters of HJB Mud Agitator

Model	HJB5.5	HJB7.5	HJB11	HJB15	HJB18.5
Motor Power（kW）	5.5	7.5	11	15	18.5
Impeller Speed（rpm）	57	57	58	58	58
Impeller Diameter（mm）	800	850	900	1000	1200
Dimension: L×W×H（mm）	954549583	1101664623	1222664665	1334734685	1465888770
Weight（kg）	295	400	462	560	785

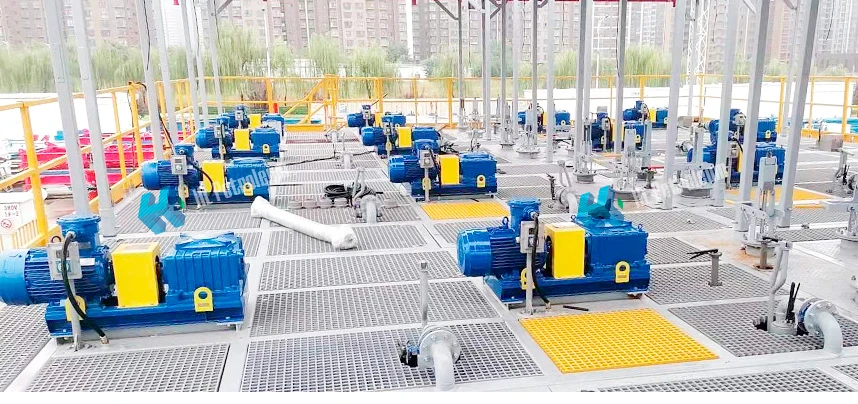

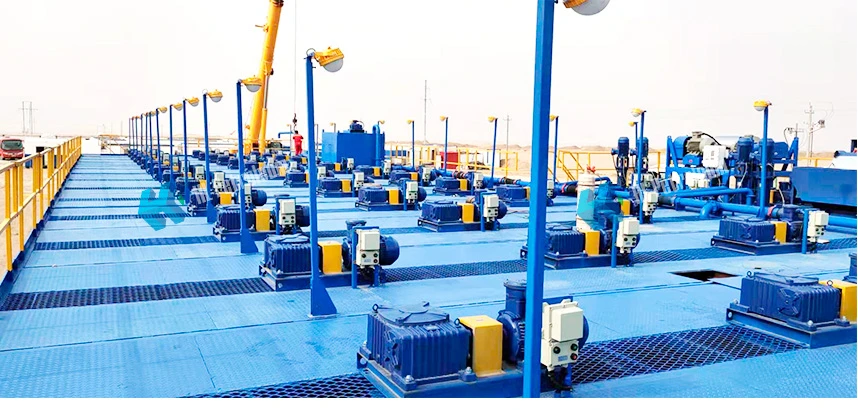

Mud Agitator Using Site

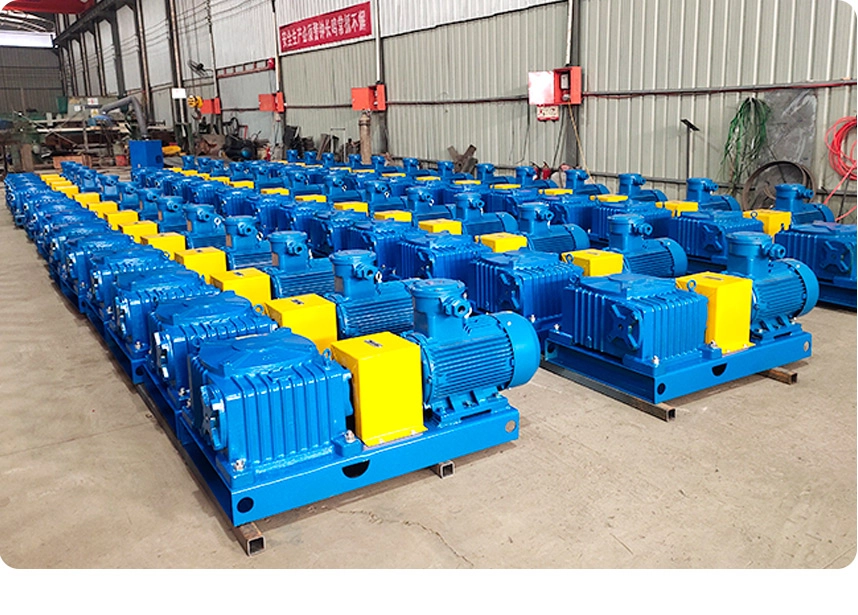

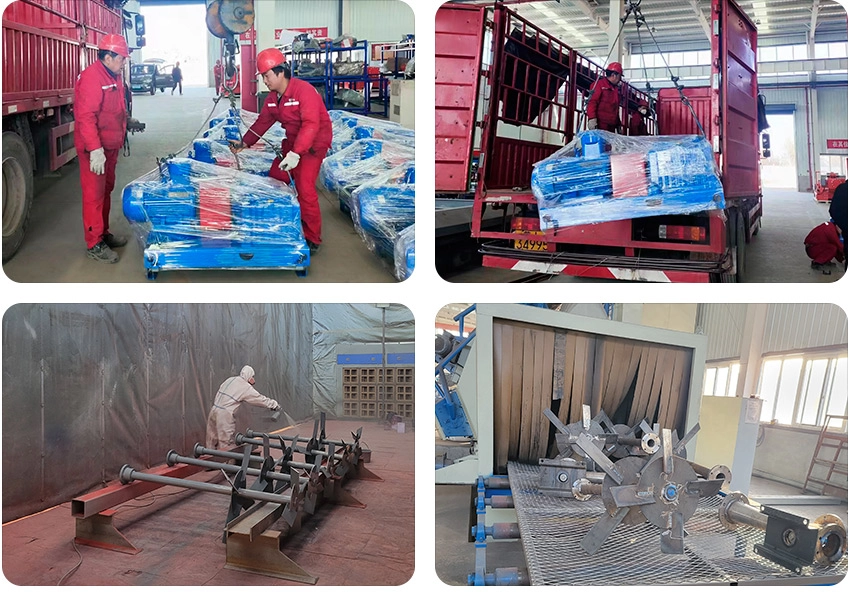

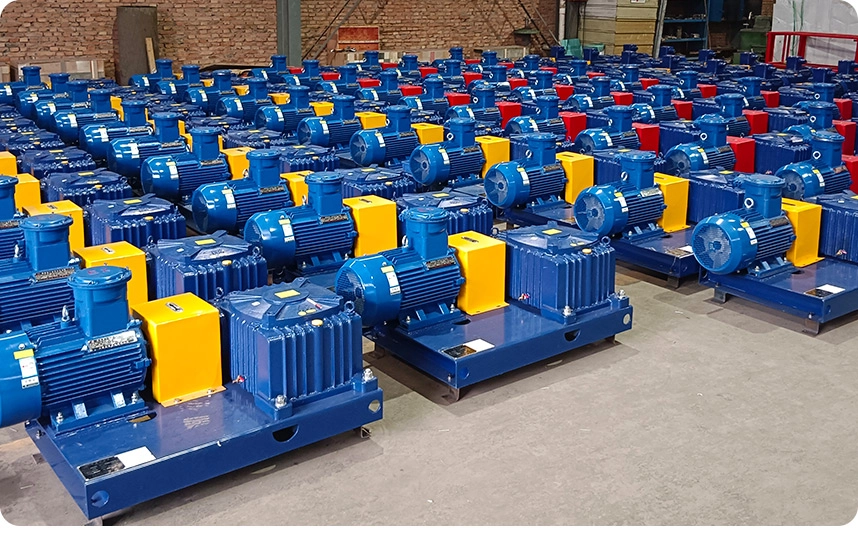

How does HL Petroleum manufacture mud agitator for drilling?

HL Petroleum provides various types of mud agitators, including horizontal mud agitators, helical gear mud agitators, flange-connected mud agitators, turbine worm mud agitators, vertical mud agitators, etc., suitable for various types of oil and gas drilling and industrial applications.

Selection of mud agitator

The mud agitator consists of a reducer and a stirring rod. Therefore, the selection of the mud agitator mainly considers the tank size, depth, and mud parameters. Generally speaking, single-layer impellers are used for less than 11kw, and double-layer impellers are used for 11kw and above. The specific selection depends on the depth of the oilfield mud tank used on site or customer requirements.
