The drilling rig mud tanks are an HG-type oil drilling mud tank designed and manufactured by Xi’an HL Company. The mud tank circulation system is available in self-cleaning and square tanks, depending on the tank bottom shape. The tank body utilizes a flat-plate conical or corrugated structure, welded together with steel plates and section steel.
The tank deck and corridors are made with factory-manufactured anti-skid steel plates and slip-resistant mesh panels. The railings, constructed from round steel pipes, have a barrier-free, foldable structure that plugs securely into place.
The mud tank circulation and purification system uses a fresh water line to clean the tank deck and equipment. Galvanized steel comprises the tank mesh panels. Channel steel forms the access ladder, and non-slip mesh panels make up the steps. Safety hooks line both side rails. A standard sand and rainproof canopy can cover the oil drilling mud tank, and heating and insulation piping runs inside it.
The drilling rig mud tanks are equipped with a desander, desilter, shale shaker, vacuum degasser, centrifuge, and other components to form a solid-liquid separation system. A sand pump serves as the mud power source.

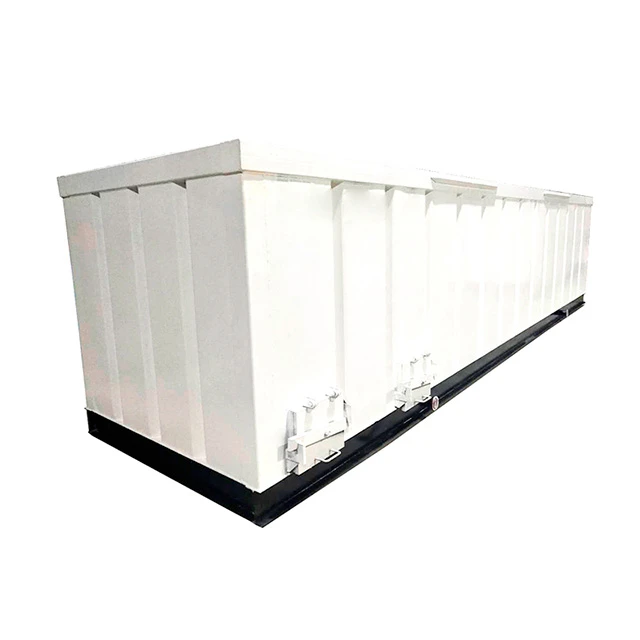

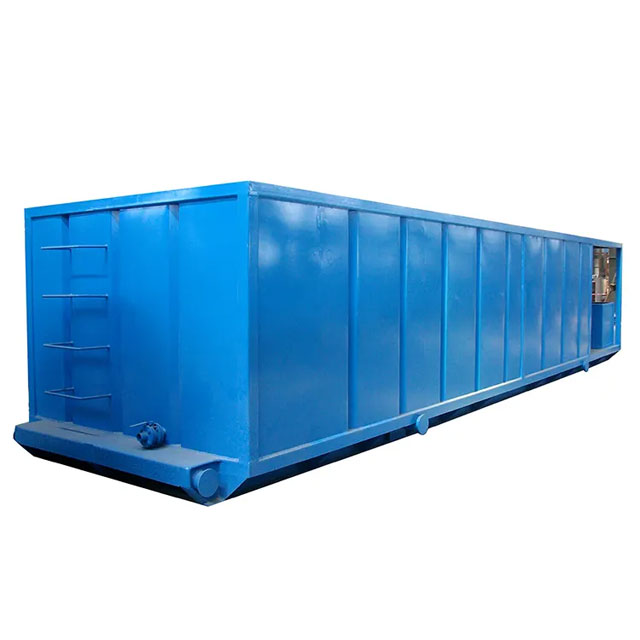

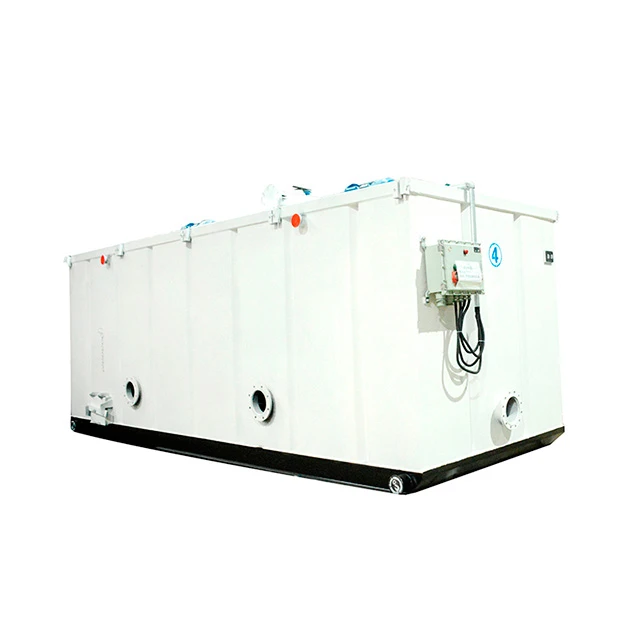

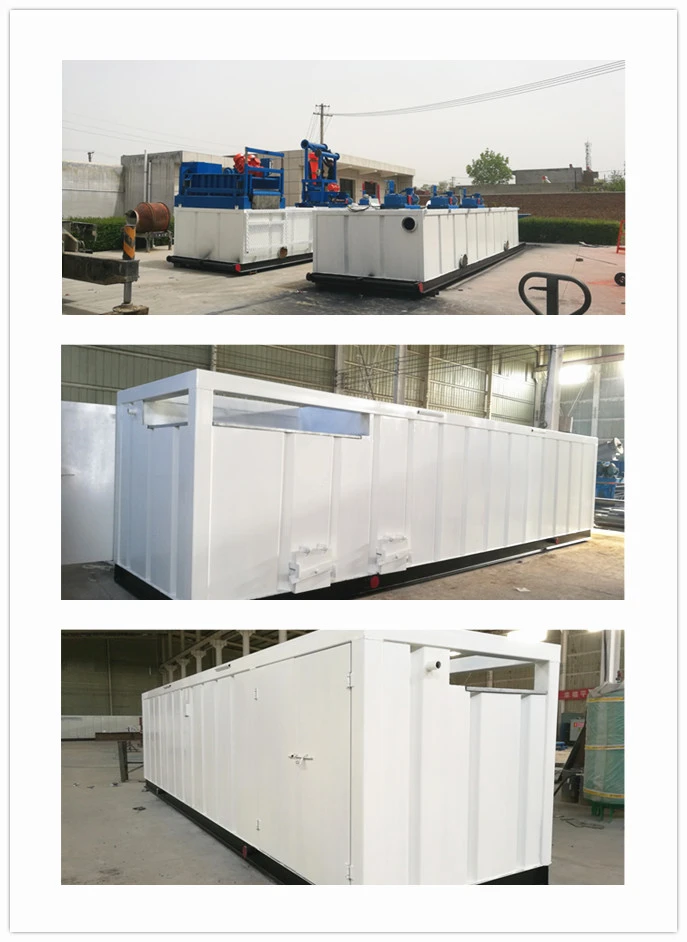

Finished mud tank display

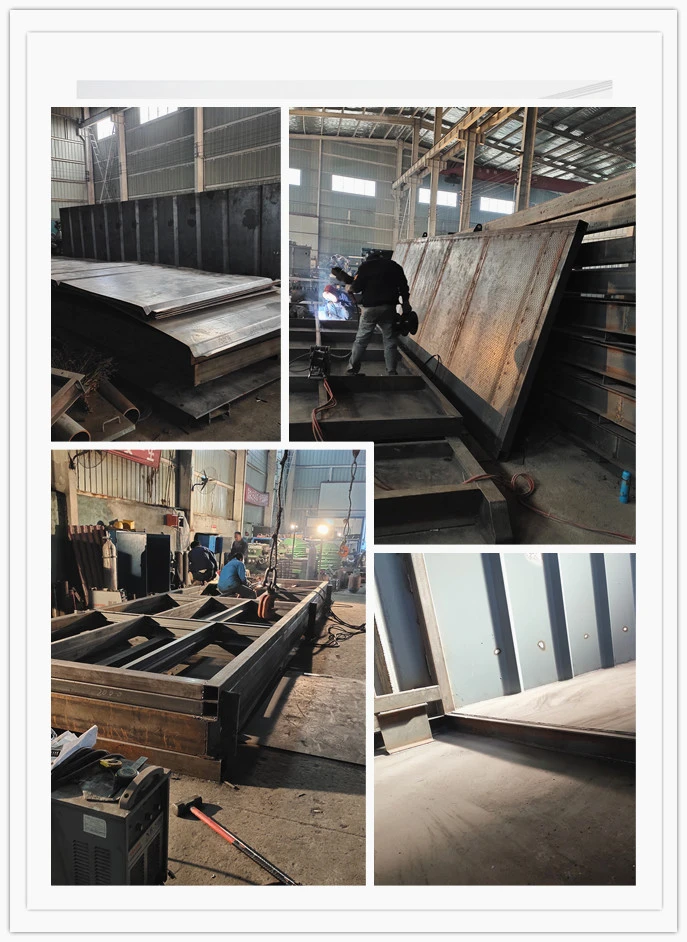

Details of mud tank processing

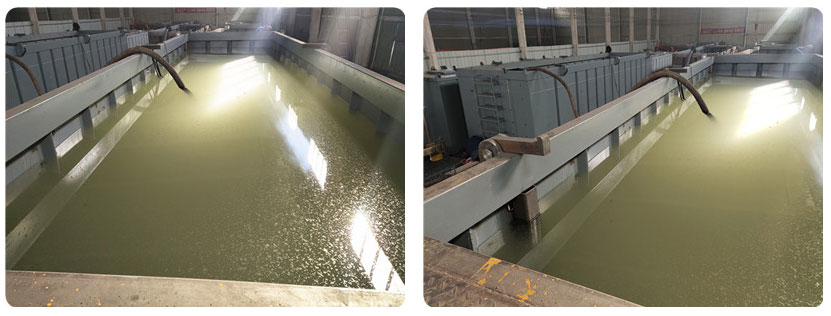

Mud tank performance test

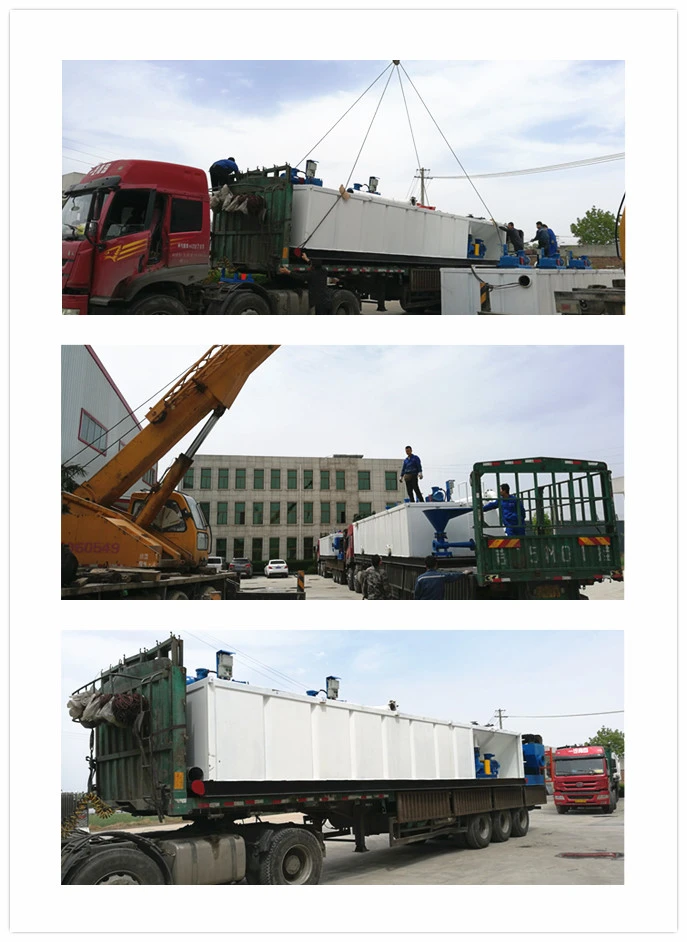

Mud tank loading site
Xi’an HL can customize mud tanks and solid-liquid separation systems of various specifications based on drilling depth and mud volume. New and existing customers are welcome to contact us by phone. For purchase details, please email us. [email protected]
