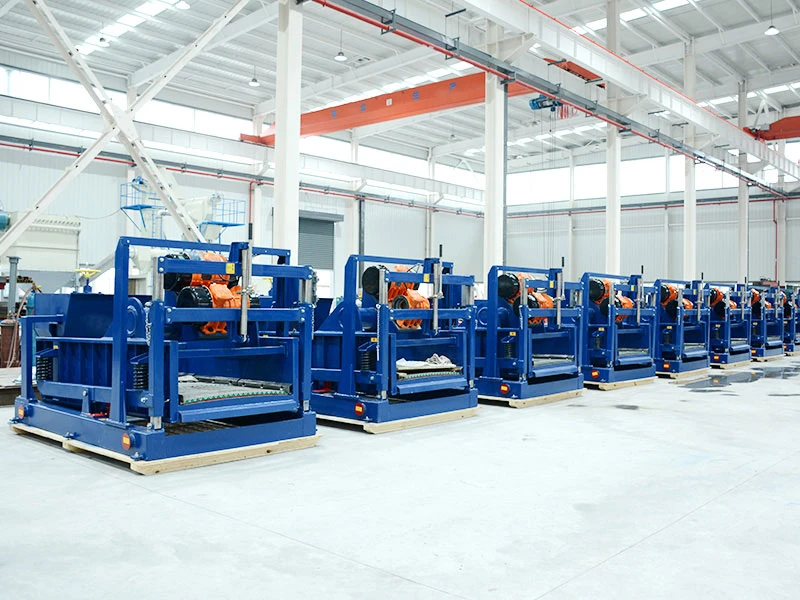

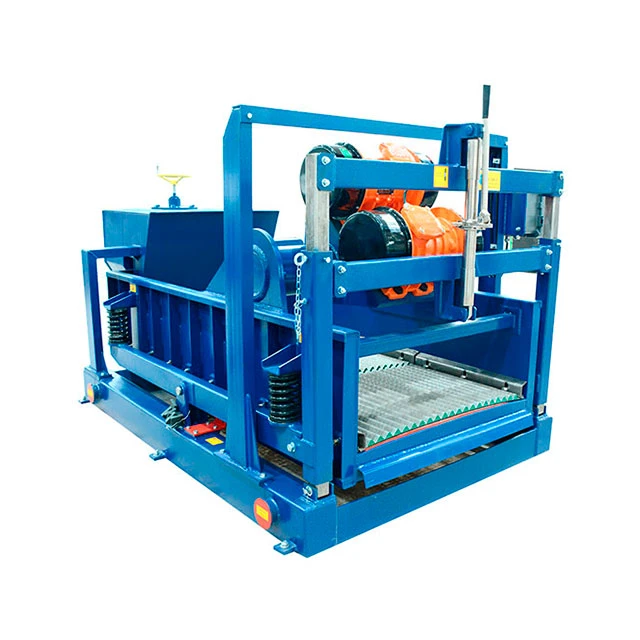

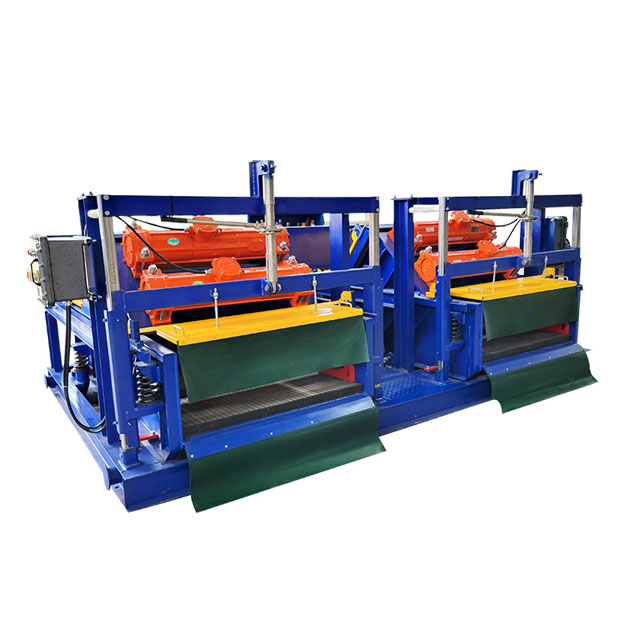

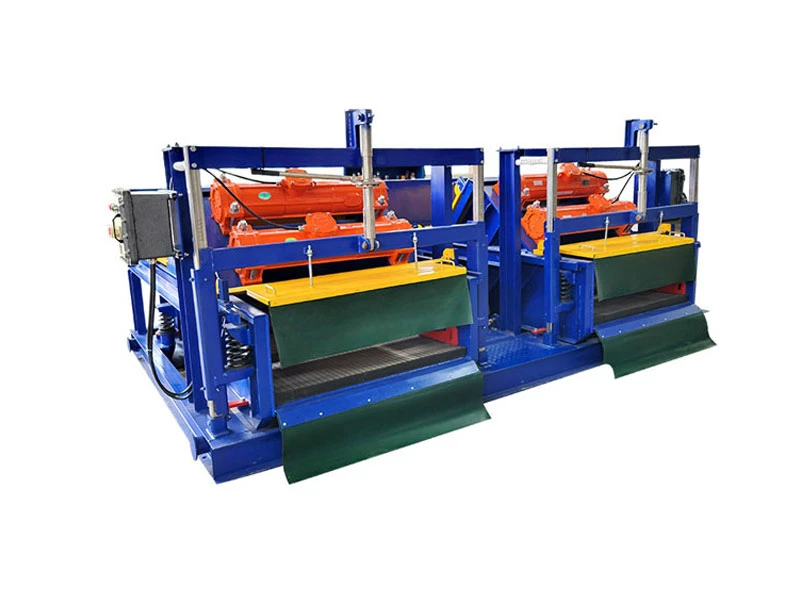

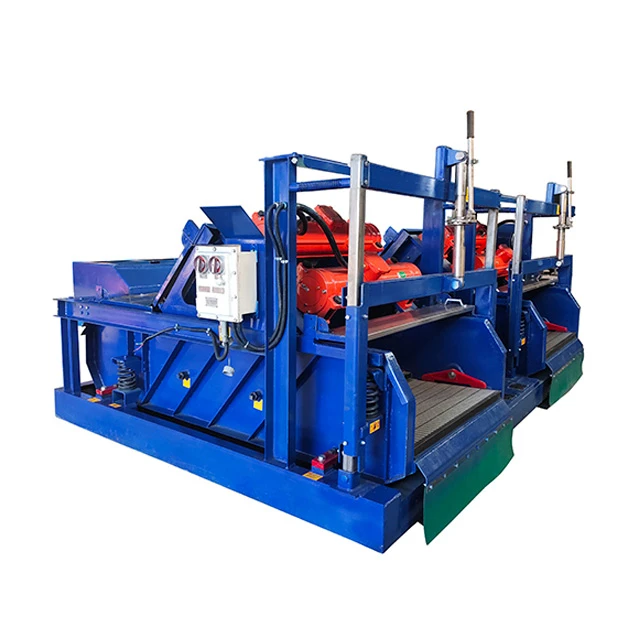

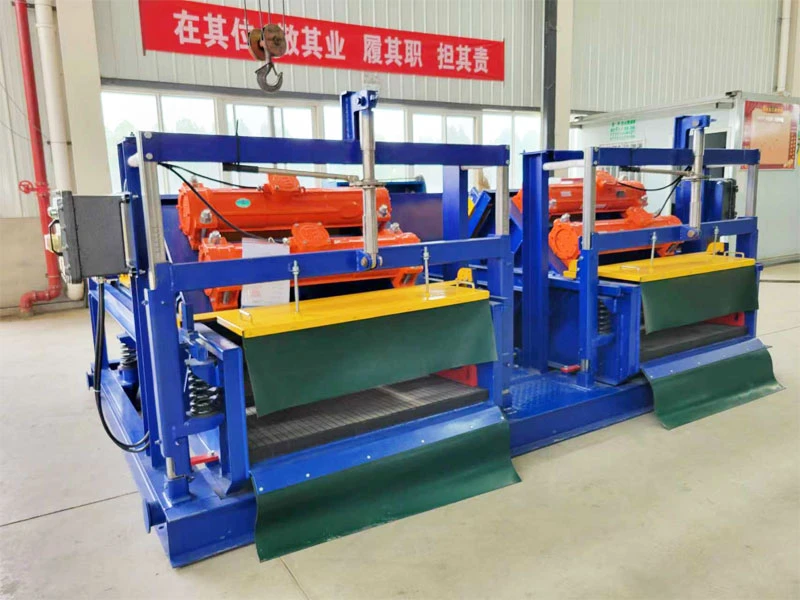

The drilling rig shakers use high-frequency vibration to separate solid particles from liquid in drilling fluid. The device primarily consists of a screen body, vibrator, screen mesh, and vibration damping device. The screen mesh is the core component, and its material, aperture, and screening efficiency directly impact the purification of the drilling fluid.
Features
1. High-vibration motor, zero-maintenance, dual motors with a vibration force of 7.1 G to 8.5 G.
2. Screen box angle adjustable while drilling -3° to 3°.
3. Screen mesh can be quickly installed and replaced.
4. Vibrating screen can be quickly positioned.
5. Choose between linear and elliptical motion modes.
Technical Parameters
| Model | HZS703 | HZS803 | HZS604 | HZS605 |
| Vibration Mode | Linear Motion | Linear Motion | Linear Motion | Linear Motion |
| Capacity | 30L/S | 35L/S | 40L/S | 45L/S |
| Screen Area | 2.2㎡ | 2.7㎡ | 2.7㎡ | 3.4㎡ |
| Screen Qty & Size | 3×1050×700mm | 3×1080×830mm | 4×1165×585mm | 5×1165×585mm |
| Motor Power | 2×1.5kW | 2×1.8kW | 2×2.2kW | 2×2.5kW |
| Deck Angle Range | -1°～3° | -1°～3° | -1°～3° | -1°～3° |
| Dimension: L×W×H | 2850×1590×1550 | 3150×1800×1630 | 2650×1700×1750 | 2850×1750×1650mm |
| Weight | 1680kg | 1800kg | 1950kg | 2350kg |
Applications and Results
Drilling rig shakers are the primary solids control equipment in drilling mud purification systems. Companies widely use them for oil drilling, trenchless horizontal directional drilling, coalbed methane drilling, shale gas drilling, and river sludge environmental protection.
1. Efficient solid-liquid separation provides a good foundation for subsequent work and reduces subsequent waste.
2. This reduces overall processing costs and reduces mud waste, thereby reducing total drilling costs.
