Heavy Duty Mats
Heavy Duty Mats - Image 2
Heavy Duty Mats - Image 3
Heavy Duty Mats - Image 4

Heavy Duty Mats

Compared with high-cost aluminum protection mats and traditional steel and wood rig matting,our Heavy Duty Mats have wider application. And due to the use of HDPE or UHMWPE materials, the mat is both environmentally friendly and economical for application. The connection methods between the matting are flexible and easy to install, making them ideal load spreading mats for construction sites, oil and gas projects, etc.

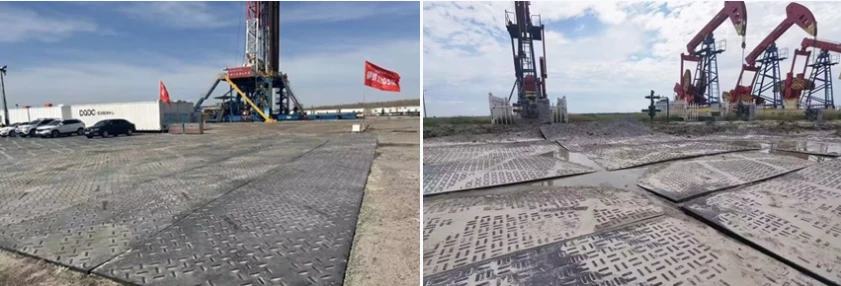

The Heavy Duty Mats supplied by HL Petroleum are suitable for scenes such as Oil and Gas rigs, Contstruction site, utilities, pipeline construction, general construction, heavy haul,etc, to disperse the applied heavy loads and improve the stability of operation. This type of plastic mat can be reused many times, and it is 100% recyclable. In addition, the mat uses HDPE (high-density polyethylene) or UHMW (ultra-high molecular weight polyethylene) material, which can minimize the impact on the environment. Our composite rig mats are an ideal alternative to traditional steel and wood rig mats.

Heavy Duty Mats

Product Specification

Model Length Width Thickness Weight Load Capacity Qty in Container
HXD-01 9.8’ /3000mm 8.2’/2500mm 1.5’’/38mm 292kgs/ 645lbs 150tons 78pcs in 40ft
26pcs in 20ft
HXD-02 13.1’/4000mm 6.5’/2000mm 1.5’’/38mm 312kgs/687lbs 150tons 80pcs in 40ft
40pcs in 20ft
HXD-03 14.8’/4500mm 6.5’/2000mm 1.5’’/38mm 351kgs/774lbs 160tons 80pcs in 40ft
40pcs in 20ft
HXD-04 19.7’/6000mm 6.5’/2000mm 1.6’’/40mm 490kgs/1080lbs 170tons 40pcs in 40ft
20pcs in 20ft

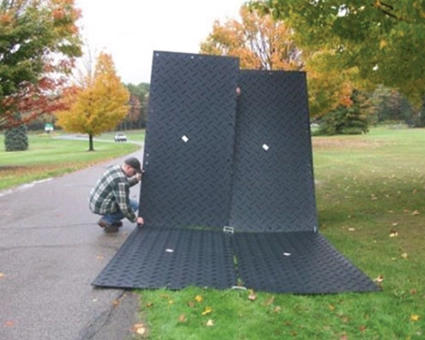

How to install this heavy duty mats?

Step 1: Lay the first mat flat on the ground and insert one end of the connector into the hole in the corner of the mat.

Step 2: Place the short side of the second mat against the short side of the mat already on the ground and lift it up at a 45- to 60-degree angle from the ground. Insert the other end of the connector on the already laid mat into the same hole on the second mat. Choose the appropriate connector based on the total area that the mat needs to cover.

Step 3: Lay the second mat down on the ground.

Step 4: Repeat steps 2 and 3 until all mats are connected.

Why select durabase composite mats from HL Petroleum?

1. The mat is resistant to breakage, corrosion, impact and aging. It is also UV-resistant and performs well in both extremely hot and cold climates, easy to install, reusable and suitable for different applications.

2. The matting is non-toxic and odorless, does not cause damage to ground facilities and the environment, with high environmental value.
3. The cost of the product itself and the transportation cost are lower than those of traditional mats, making it your best choice.
4. HL Petroleum is your reliable supplier, with strict product quality inspections and fast delivery.
