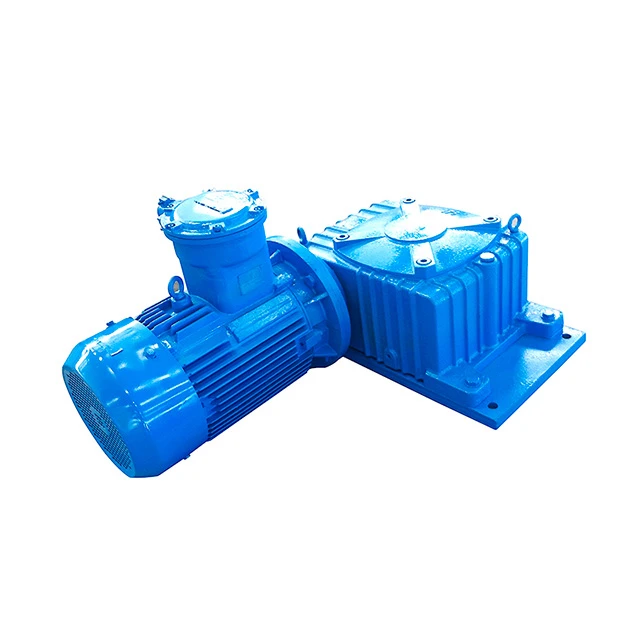

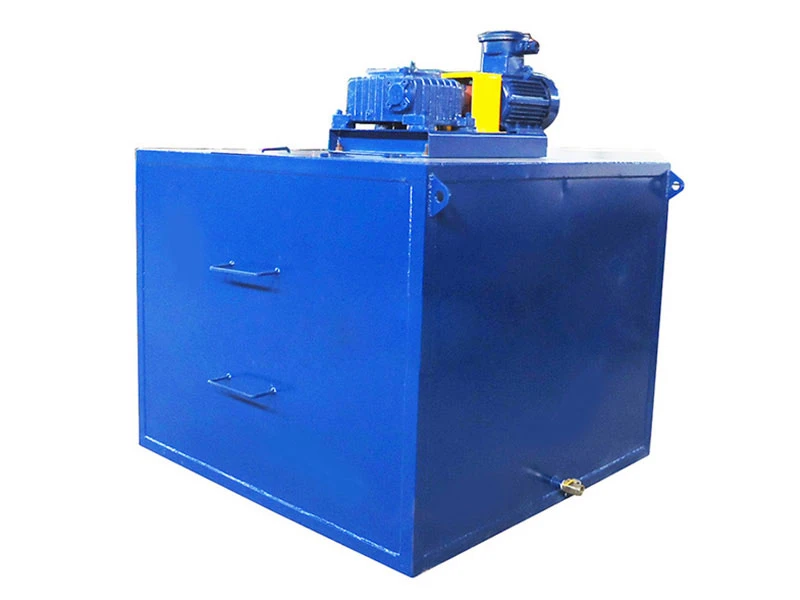

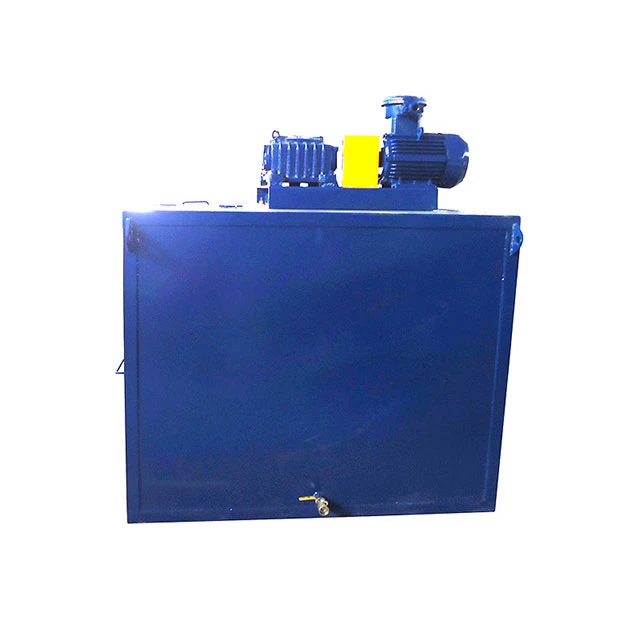

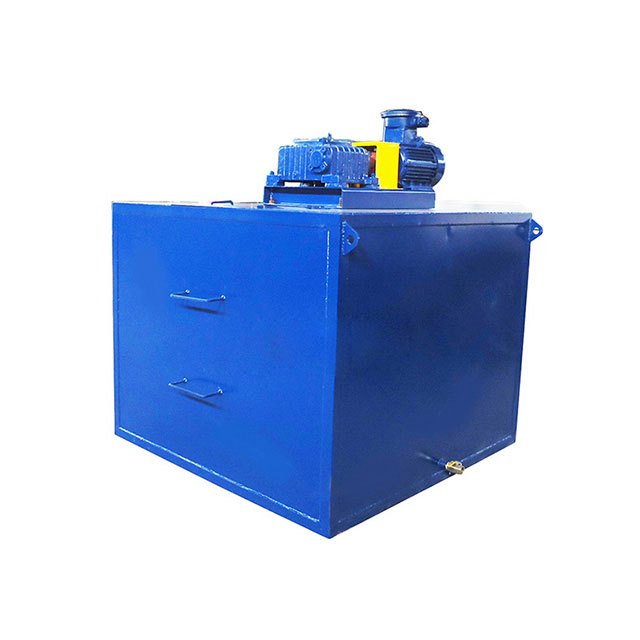

Mud tank agitator oil rig is an important equipment of drilling fluid tank solid control system, mainly used for mixing drilling fluid, preventing the solid particles of drilling fluid from settling during the circulation process, and making the drilling fluid mixed evenly and stably.
Mud tank agitator oil rig product features
1. Users require no coupling, which makes subsequent maintenance convenient and quick.
2. We shorten the transmission shaft distance, and this results in high transmission efficiency.
3. We shorten the transmission shaft distance, and this results in high transmission efficiency. (This appears to be a repeated point).
4. We install the shaft hole with matching, which greatly improves the concentricity.
5. It experiences normal wear, requires no wearing parts, and reduces labor intensity.
6. Compact structure, good meshing performance, reliable operation
Technical parameters
| 型号 | HJBF5.5 | HJBF7.5 | HJBF11 | HJBF15 | HJBF18.5 | HJBF22 |
| Motor Power（kw） | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Impeller Speed（rpm） | 57 | 57 | 58 | 58 | 58 | 58 |
| Impeller Diameter（mm） | 800 | 850 | 900 | 1000 | 1200 | 1200 |
| Dimension: L×W×H（mm） | 954×549×583 | 1101×664×623 | 1222×664×665 | 1334×734×685 | 1445×888×770 | 1465×888×770 |
| Weight（kg） | 295 | 400 | 462 | 560 | 785 | 815 |
Note: The power voltage of the above products is 380V, 50Hz, and can also be customized to 460V, 60Hz; the length of the stirring rod is determined according to the user’s site.
Working principle of mud agitator

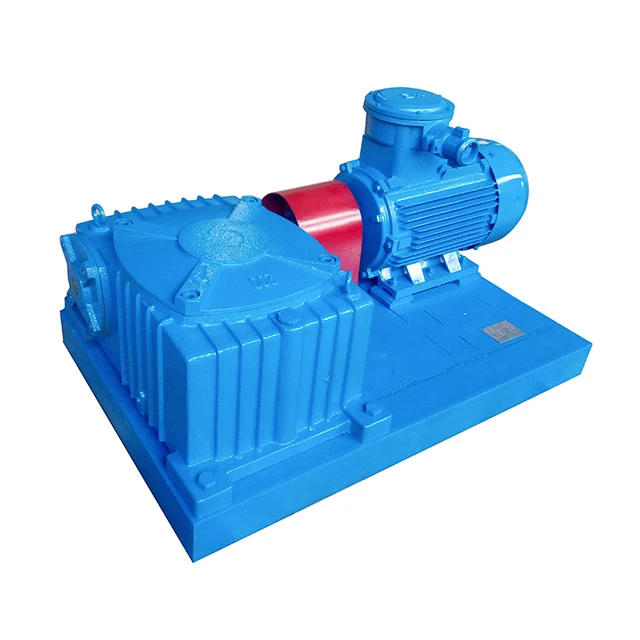

When the explosion-proof motor runs, it drives the reducer’s input shaft to rotate through the elastic coupling. After the reducer decelerates it, its output shaft transmits power and drives the stirring impeller to rotate.When the blades of the stirring impeller contact the drilling fluid, it forces it to produce a vortex motion, thereby preventing solid phase deposition and achieving the effect of uniform mixing of solid and liquid phases and consistent density.
