A shale shaker drilling is an essential and critical piece of equipment in oil and gas drilling and production. It is the first stage in a drilling fluid’s solid-liquid separation system. It is widely used in drilling fluid solids control systems.
This advanced separation device uses mechanical vibration to effectively separate solid particles from drilling fluid. This process ensures the cleanliness and recycling of the fluid. As a result, it improves drilling efficiency, reduces costs, and extends equipment life.
This article will explain the main structure and operating principle of a shale shaker. It will also cover how manufacturers can meet the needs of different customers.
Main Structure and Operating Principle of a Shale Shaker Drilling
The basic structure of a shale shaker consists of a base, screen box, vibration springs, a vibration motor, and a feed logging tank. These components, through scientific design and precision manufacturing, form an efficient separation system.
1. Base: Provides stable support, supports the entire shale shaker system, and absorbs vibrations generated during operation.
2. Screen box: The core working area of the shale shaker, equipped with screen mesh. As mud passes through the screen box, solid particles are trapped by the mesh.
3. Vibration spring: Serves as a buffer and vibration dampener, protecting the screen box from excessive impact during vibration.
4. Vibration motor: Provides the vibration source for the equipment, achieving optimal separation efficiency by adjusting the vibration frequency and amplitude.
5. Feed logging tank: Receives mud from the wellhead and evenly delivers it to the screen box for separation.
The operating principle of a shale shaker is as follows: Drilling fluid to be processed enters the screen box through the feed inlet. A vibration motor drives the screen inside the screen box, causing it to vibrate at a high frequency and separate solid particles from the liquid. The drilling fluid passes through the screen and returns to the mud tank, while the shale shaker traps and discharges the solid particles. This simple yet effective process promptly separates solids from the drilling fluid, preventing any impact on drilling efficiency.
How manufacturers meet customer needs
As a manufacturer of shale shaker drilling equipment, technology and production capacity are directly related to product performance and stability. To meet diverse customer needs, manufacturers typically address the following aspects:

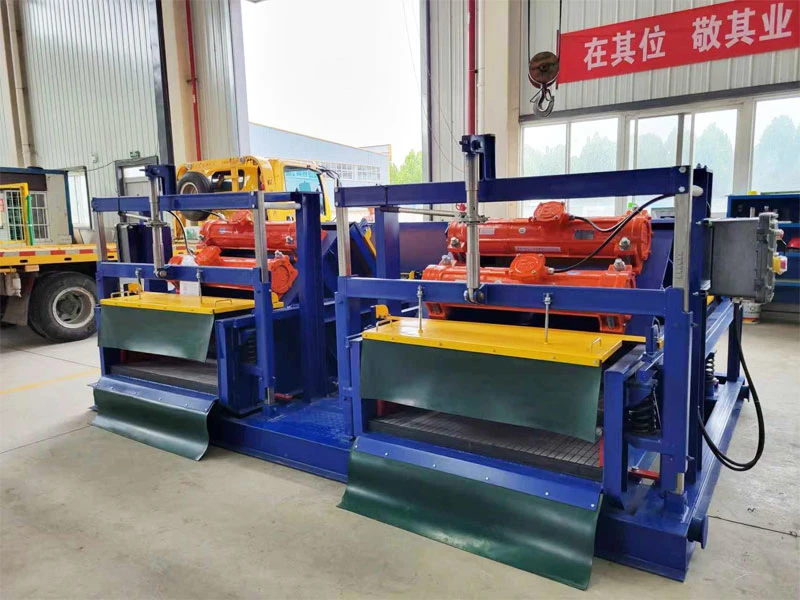

1. Customized design: Different drilling projects have varying requirements for shale shakers. Our company can provide single, double, or triple shale shaker systems based on specific customer needs, and we can design and manufacture equipment in various models and specifications. Based on the wellsite space and construction requirements, customers can select the appropriate shale shaker combination to ensure optimal solids control.
2. Connection Manifolds: To facilitate the connection of multiple shale shakers in series or parallel, we also provide efficient and convenient connection manifold systems. Corrosion-resistant, high-strength materials are used to construct these manifolds, ensuring long-term, stable operation and minimizing maintenance and downtime.
3. Durability and Ease of Maintenance: Shale shakers operate in harsh environments year-round, making durability paramount. Our manufacturers select high-quality materials, such as wear-resistant steel and corrosion-resistant coatings, to ensure the equipment can withstand the wear and tear of these harsh operating environments. Furthermore, the shale shaker design fully considers ease of maintenance, making screen replacement simple and quick, reducing downtime and improving production efficiency.
4. Technical Support and After-Sales Service: To ensure the normal operation of the equipment at your site, our company provides comprehensive technical support and after-sales service. This includes equipment installation and commissioning, operator training, and routine maintenance guidance. Furthermore, we continuously optimize equipment design based on customer feedback to ensure our products maintain industry leadership.
Conclusion
The shale shaker drilling is a core component of the drilling fluid solids control system. Its quality and performance directly impact the efficiency and safety of the entire drilling process. As a professional shale shaker manufacturer, we not only focus on the efficient separation capabilities of our equipment, but also on providing customized solutions and comprehensive after-sales service. Through continuous innovation and improvement, we provide customers with high-quality shale shaker equipment and contribute to the sustainable development of the oil and gas drilling industry.
