In oil and gas drilling solids control systems, different equipment is arranged in stages to progressively remove solids of various particle sizes. Among them, the mud shale shaker and mud cleaner are two commonly confused pieces of equipment. Although both are used to separate solids from drilling fluids, they differ significantly in processing stage, target particle size range, and structural configuration.
Understanding the differences between these two systems helps drilling engineers and rig operators design a more efficient solids control system, reduce mud costs, and minimize waste disposal expenses.
This article explains the major differences between shale shakers and mud cleaners, including working principles, separation ranges, typical applications, and equipment selection. It also introduces practical product configurations such as the HZS Series Shale Shaker and HQJ Series Mud Cleaner.
What Is a Shale Shaker?
A shale shaker is the first-stage solids control equipment in a drilling fluid circulation system. It directly receives drilling mud returned from the wellbore and primarily removes large drill cuttings and coarse solids, typically particles larger than 74–100 microns depending on the screen mesh size.
Working Principle
Drilling fluid flows onto the shaker screens, where vibration motors generate high-frequency vibration for screening separation:
- Liquid and smaller particles pass through the screen into the next circulation stage
- Larger solids move along the screen surface and are discharged
Shale shakers may use:
- Linear motion
- Elliptical motion
- Dual-motion mode
to achieve optimal separation performance and cuttings conveyance capacity.
HL Petroleum Shale Shaker Series
The HZS Series provides:
- Single-layer shale shakers
- Double-layer shale shakers
- Triple-layer shale shakers
| Model | HZS703 | HZS803 | HZS604 | HZS605 |
| Vibration mode | Linear | Linear | Linear | Linear |
| Capacity | 108m³/h | 126m³/h | 144m³/h | 162m³/h |
| Screen area | 2.2㎡ | 2.7㎡ | 2.7㎡ | 3.4㎡ |
| Screen size | 3×1050×700mm | 3×1080×830mm | 4×1165×585mm | 5×1165×585mm |
| Motor power | 2×1.5KW | 2×1.8KW | 2×2.2KW | 2×2.5KW |
| Deck angle | -1°～3° | -1°～3° | -1°～3° | -1°～3° |
| Dimensions | 2825×1687×1605mm | 3200×1912×1640mm | 2650×1700×1750mm | 2850×1750×1650mm |
| Weight | 1680kg | 2030kg | 1950kg | 2350kg |
Among them, the dual-motion shale shaker can freely switch during operation between:
- Balanced elliptical motion
- Linear motion
using only two vibration motors, representing an internationally advanced design.
Typical Separation Range of Shale Shakers
- Standard separation range: 74–200+ microns
- With finer screens: as low as 44–74 microns
- However, processing capacity may decrease with finer mesh screens
Shale shakers are suitable for:
- Water-Based Mud (WBM)
- Oil-Based Mud (OBM)
- Synthetic-Based Mud (SBM)
and nearly all drilling conditions.
What Is a Mud Cleaner?
A mud cleaner is a combination-type solids control unit that typically integrates:
- Desander
- Desilter
- Bottom shaker
Therefore, it functions as second-stage and third-stage solids control equipment.
Mud cleaners mainly process drilling fluids after primary treatment by shale shakers.
Working Principle
After passing through the primary shale shaker, drilling mud enters the mud cleaner:
- Mud enters the hydrocyclone manifold
- Fluid is distributed to desander and desilter hydrocyclones
- Hydrocyclones use centrifugal force to separate finer solids
- Hydrocyclone underflow (concentrated solids) is discharged onto the bottom shaker for further drying
- Hydrocyclone overflow returns to the active mud system
HL Petroleum Mud Cleaner Series
HL Petroleum provides:
- HQJ Series Mud Cleaner
- HCS Desander
- HCN Desilter
A complete mud cleaner system includes:
- Desander cones
- Desilter cones
- Bottom shale shaker
| Model | HQJ250×2-100×12 | HQJ300×2-100×16 | HQJ250×3-100×20 |
| Capacity | 240 m3/h | 300 m3/h | 360 m3/h |
| Supporting mud shale shaker | HZS703 | HZS604 | HZS605 |
| Screen size | 3×1050×700mm | 4×1165×585mm | 5×1165×585mm |
| Desanding cyclone diameter | 250mm(10”) | 300mm(12”) | 250mm(10”) |
| Desanding cyclone quantity | 1 | 2 | 3 |
| Desiltering cyclone diameter | 100mm(4”) | 100mm(4”) | 100mm(4”) |
| Desiltering cyclone quantity | 12 | 16 | 20 |
| Separation particle size | 15～40μm | 15～40μm | 15～40μm |
| Supporting centrifugal pump | SB8×6-45KW | SB8×6-55KW | SB8×6-55KW |
| Weight | 2800KG | 3100KG | 3500KG |
| Dimension | 2865×1920×2670 mm | 3065×1920×2700 mm | 3365×1920×2700 mm |
Mud Cleaner Separation Range
Desander
- Separation range: 44–74 μm
Desilter
- Separation range: 15–44 μm
Working Pressure
- 0.25–0.45 MPa
Bottom Shaker
Used for further dewatering and solids discharge.
Mud cleaners are widely used in:
- Oil and gas drilling
- Waste mud treatment
- Solid-liquid separation systems
Core Differences Between Shale Shakers and Mud Cleaners
| Item | Shale Shaker | Mud Cleaner |
|---|---|---|
| Processing Stage | First-stage solids control | Second/third-stage solids control |
| Main Function | Remove coarse drill cuttings | Remove finer solids |
| Main Components | Vibrating screen deck | Hydrocyclones + bottom shaker |
| Separation Range | Usually >74 μm | 15–74 μm |
| Operating Principle | Vibrating screen separation | Centrifugal separation + screening |
| Position in System | First equipment after well return | Installed after shale shaker |
| Complexity | Relatively simple | More complex integrated system |
| Main Purpose | Protect downstream equipment | Improve mud quality and reduce centrifuge load |
When Do You Need a Shale Shaker?
You need a shale shaker if:
- Building a new solids control system
- Requiring primary solids separation
- Drilling fluid contains large drill cuttings
- Downstream equipment needs protection
HL Petroleum HZS Series shale shakers feature:
- Simple operation
- Easy maintenance
- Fewer spare parts
- Multiple model options
- Suitability for various drilling conditions
When Do You Need a Mud Cleaner?
You need a mud cleaner if:
- A primary shale shaker is already installed
- Mud still contains excessive 15–74 μm fine solids
- Formations contain fine sand and silt
- You want to reduce centrifuge workload
- You need better mud performance
- You aim to reduce dilution rate and waste disposal cost
Most Drilling Rigs Require Both Equipment Types
Modern drilling rigs typically use both shale shakers and mud cleaners:
First-Stage Solids Control
Shale Shaker
- Removes large drill cuttings
Second/Third-Stage Solids Control
Mud Cleaner
- Removes fine solids larger than 15 μm
Fourth-Stage Solids Control
Decanter Centrifuge
- Removes ultrafine solids (2–7 μm)
- Recovers barite
HL Petroleum can provide complete solids control systems including:
- Shale shakers
- Mud cleaners
- Vacuum degassers
- Desanders
- Desilters
- Centrifuges
Why Choose HL Petroleum?
HL Petroleum specializes in drilling mud solids control and treatment systems for the oil and gas industry. Its products have been exported to more than 30 countries, with over 300 complete system installations delivered worldwide.
With more than 20 years of experience and a 10,000 m² manufacturing facility, HL Petroleum provides complete customized solutions for drilling projects.
Advantages of HL Petroleum
Complete Product Line
Providing both:
- Horizontal equipment
- Vertical equipment
from shale shakers to centrifuges.
Advanced Manufacturing Capability
- 10,000 m² production facility

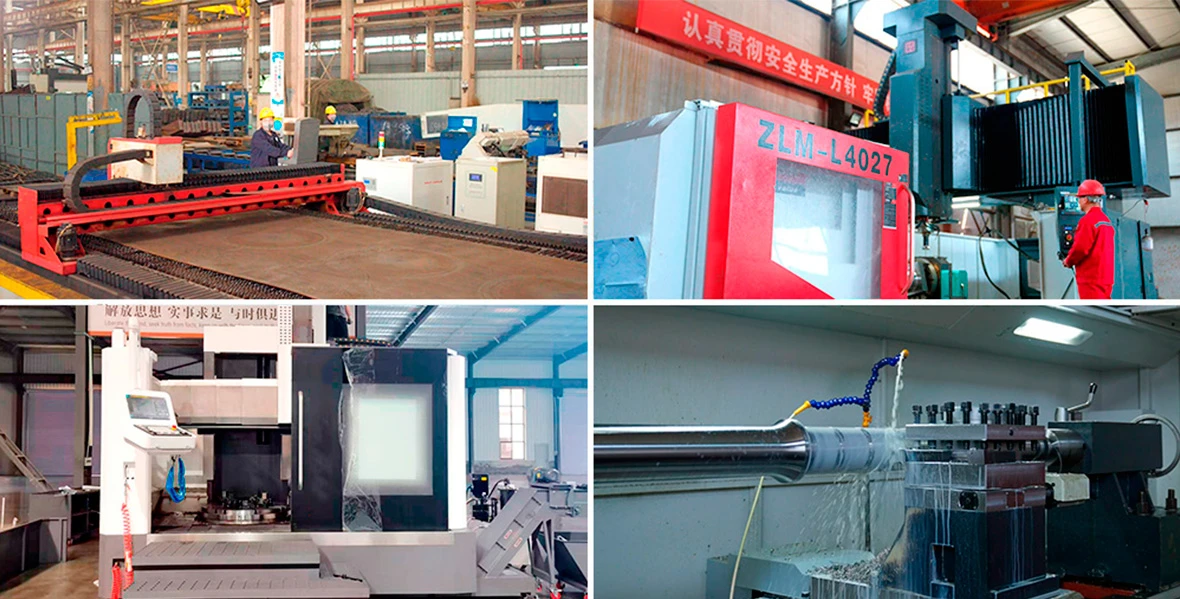

- Advanced machining equipment
- Professional manufacturing process
Multiple Certifications
- International quality system certifications
- Product certifications
- Multiple invention patents
Customization Support
Custom options include:
- Electrical standards (380V/50Hz, 460V/60Hz, ATEX, IECEx)
- Vibration motor brands (Ital, Vibras, Martin, Oli)
- Screen types (steel frame, composite frame)
- Surface coating colors
Extensive Application Experience
Suitable for:
- Oil and gas drilling
- Coalbed methane (CBM)
- Shale gas
- Municipal slurry treatment
- Mining separation
- Oily sludge treatment
- Fracturing flowback fluid treatment
- Mud cooling systems
Conclusion
The biggest difference between shale shakers and mud cleaners lies in their processing stage and function:
- Shale shakers are first-stage solids control equipment mainly used to remove coarse drill cuttings (typically >74 μm)
- Mud cleaners are second/third-stage solids control equipment that combine desanders, desilters, and bottom shakers to remove fine solids above 15 μm
The most efficient solids control systems usually use both units together:
- Shale shakers protect mud cleaners
- Mud cleaners further improve mud quality
- They also protect downstream equipment such as centrifuges
When selecting equipment, factors such as:
- Flow rate
- Solids particle distribution
- Mud type
- Project budget
should all be considered.
HL Petroleum HZS Series shale shakers and HQJ Series mud cleaners provide stable, reliable, and customizable solutions for various drilling projects. For complete solids control system design and technical support, feel free to contact us.
