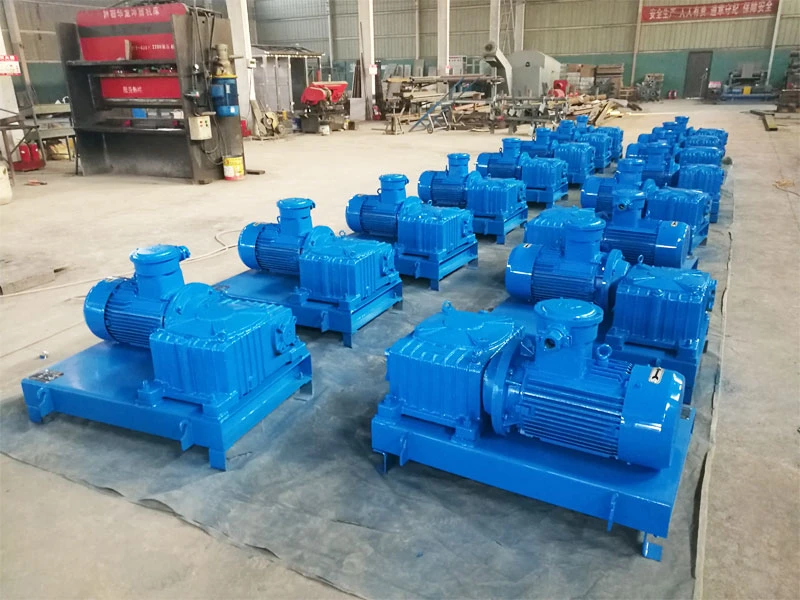

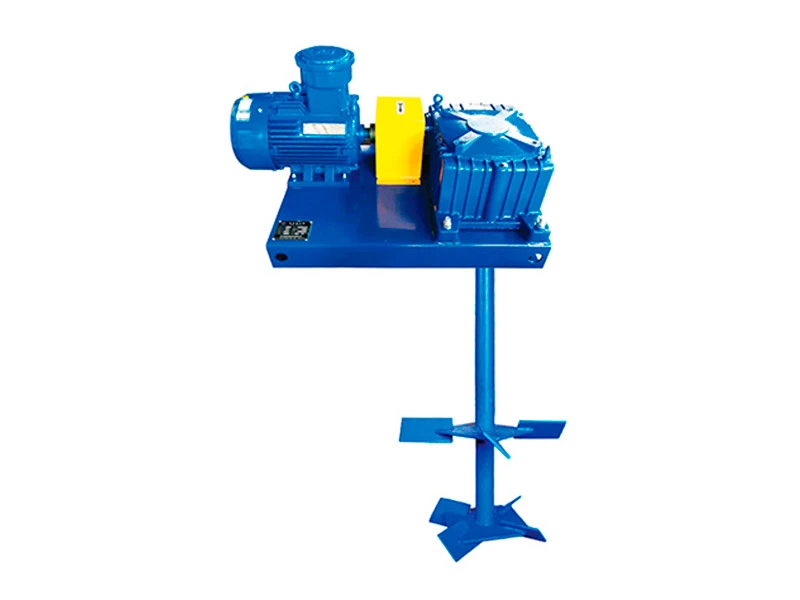

What is a mud agitator in drilling? Our HJB series turbine worm agitator currently finds the most widespread use in oilfield drilling. A turbine worm reducer, an explosion-proof motor, a base, an elastic shaft pin coupling, a shield, and a stirring impeller primarily compose it. Its horizontal structure makes it easy to install, greatly reduces its height, and allows you to transport it together with the mud tank without disassembly, which makes it very suitable for this frequent handling operation mode. This agitator’s simple structure, large torque, stable performance, and easy maintenance ensure its widespread use in major oil fields.
Features of mud agitator in drilling:
Adopting worm/worm gear reducer, compact structure, good meshing performance, reliable operation
Combined with explosion-proof motor, suitable for working under harsh conditions in the field
The explosion-proof motor and the reducer input shaft are directly connected through an elastic coupling to keep the stirring impeller at a constant speed
Strong stirring intensity and wide range
Mud agitator in drilling technical parameters:
| Model | HJB5.5 | HJB7.5 | HJB11 | HJB15 | HJB18.5 |
| Motor Power (kw) | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Impeller Speed (rpm) | 57 | 57 | 58 | 58 | 58 |
| Impeller Diameter (mm) | 800 | 850 | 900 | 1000 | 1200 |
Note: The power voltage of the above products is 380V, 50Hz, and can also be customized to 460V, 60HZ; the length of the stirring rod is determined according to the user’s site
●HJBF series agitator
The HJBF series agitator comprises a direct-connected worm gear reducer, a vertical explosion-proof motor, a base, and an impeller rod. Users in oil and gas fields receive it well because it offers a simple structure, small size, high transmission efficiency, and simple maintenance.
●HJBX series agitator
The HJBX series agitator comprises an explosion-proof motor, a helical gear reducer, a base, and a stirring rod. We widely use it in major oil fields because it offers a compact structure, good meshing performance, large torque, and high transmission efficiency.
