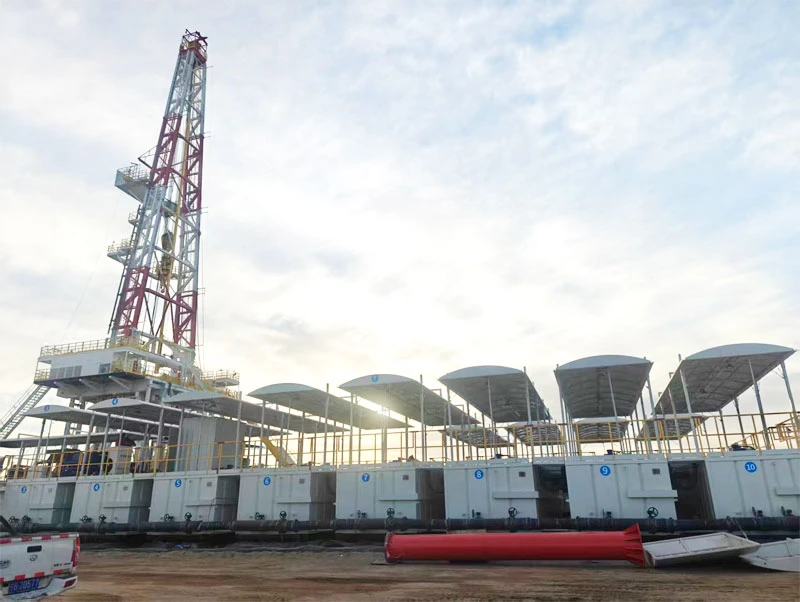

Drilling Fluid Purification System Guide

A drilling fluid purification system is a critical component in modern drilling operations, designed to treat and recycle drilling mud returned from the wellbore. As a core part of the solids control system, it ensures optimal drilling performance, reduces operational costs, and minimizes environmental impact.

What Is a Drilling Fluid Purification System?

The drilling fluid purification system (also known as a mud purification system or solids control system) is an integrated solution used in:

Oil & gas drilling
Horizontal Directional Drilling (HDD)
Trenchless engineering
Shield tunneling projects

Its primary function is to separate harmful solids from drilling fluids, maintain mud properties, and enable efficient reuse of drilling mud.

Key Equipment in a Drilling Fluid Purification System

A complete drilling fluid purification system typically includes:

Shale Shaker – Primary screening equipment to remove large cuttings
Vacuum Degasser – Eliminates gas intrusion in drilling fluids
Desander – Removes sand-sized particles
Desilter – Eliminates finer solids (silt)
Decanter Centrifuge – Performs fine separation of ultra-fine particles

These components work together to ensure multi-stage purification and consistent drilling fluid performance.

5-Stage Mud Purification Process

The drilling purification system operates through a highly efficient five-stage process:

Screening – Removes large drill cuttings via shale shaker
Degassing – Eliminates harmful gases from the mud
Desanding – Separates coarse sand particles
Desilting – Removes fine silt particles
Centrifugal Separation – Ensures ultra-fine solids removal

This multi-stage process ensures clean, reusable drilling fluid, improving drilling speed and reducing waste.

System Structure and Design Features

Modern drilling fluid purification systems are designed with flexibility and efficiency in mind:

Modular Tank Design (3–7 Tanks)
Easy to transport, install, and customize based on project requirements
Cone-Bottom Tank Structure
Prevents sand accumulation and improves cleaning efficiency
Flexible Compartment Layout
Tanks can operate independently or as a connected system
Integrated Mud Mixing System
Ensures uniform mud preparation and prevents sedimentation
Reliable Suction Manifold System
Bottom valves offer strong sealing performance and easy operation

Advantages of Using a Drilling Fluid Purification System

Implementing a high-quality drilling fluid purification system provides several benefits:

✅ Improves drilling efficiency and penetration rate
✅ Reduces drilling fluid consumption and cost
✅ Enhances wellbore stability and operational safety
✅ Minimizes environmental pollution and waste discharge
✅ Extends equipment lifespan

Wide Applications Across Industries

The drilling fluid purification system is widely used in:

Oil and gas drilling rigs
HDD and trenchless construction
Water well drilling
Mining and tunneling projects
Shield TBM slurry separation systems

It is suitable for solid-liquid separation in various industrial applications, making it a versatile solution for global projects.

Custom Drilling Fluid Purification Solutions

At HL Solid Control, we specialize in manufacturing customized drilling fluid purification systems tailored to your specific project requirements.

We provide:

System design based on drilling rig specifications
Equipment configuration optimization
Installation and commissioning support
Maintenance and system upgrade services

Our goal is to help clients reduce drilling costs, improve efficiency, and maximize return on investment.

Conclusion

A reliable drilling fluid purification system is essential for any drilling operation. By integrating advanced solids control equipment and efficient processing stages, it ensures optimal mud performance, safer drilling conditions, and sustainable operations.

If you are looking for a high-performance drilling fluid purification system, choosing a professional manufacturer will make a significant difference in your project success.
