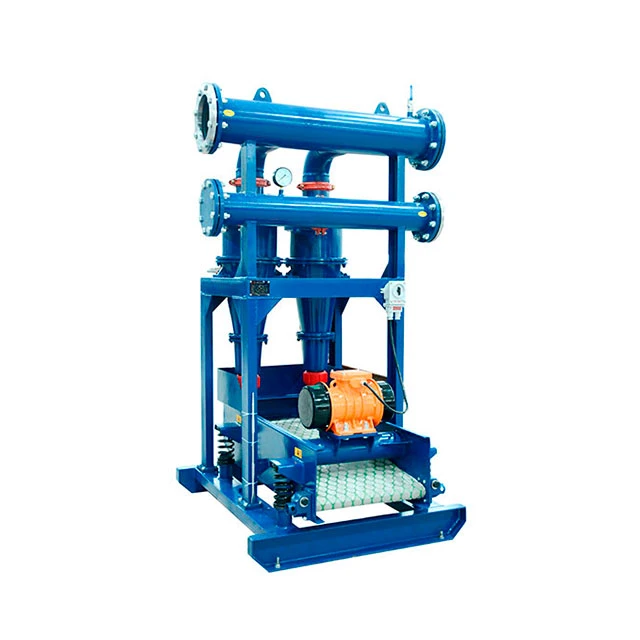

Desander

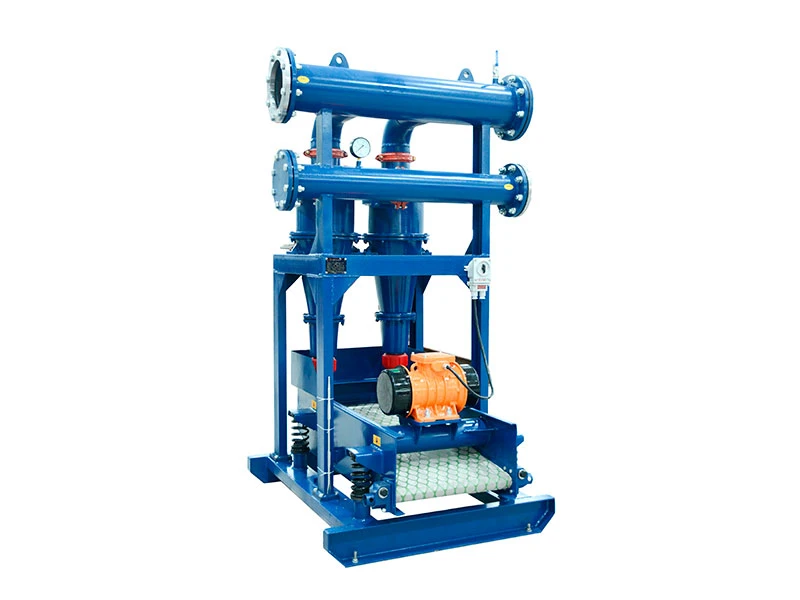

Desander - Image 2

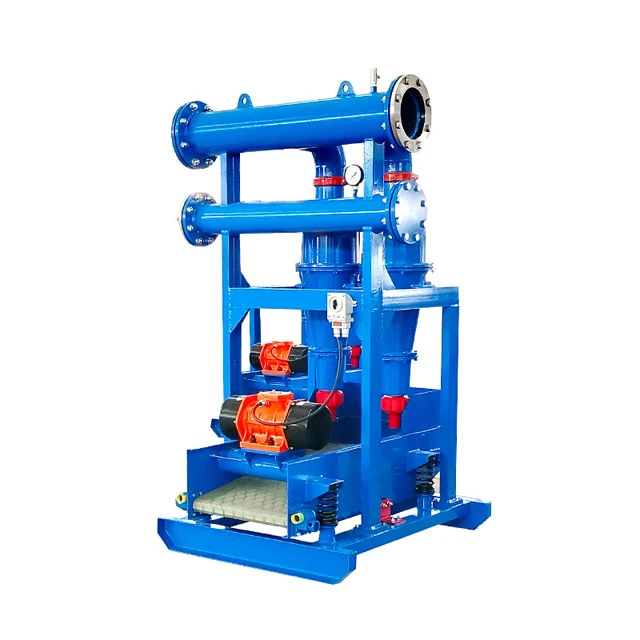

Desander - Image 3

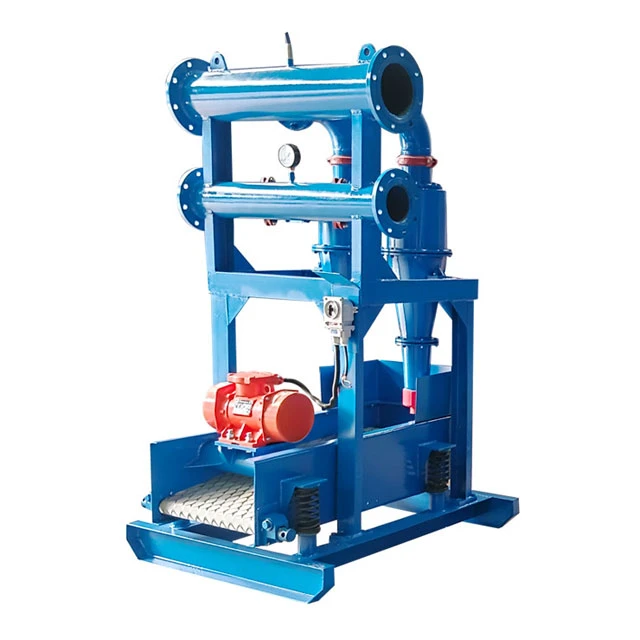

Desander - Image 4

Desander

Desander Features

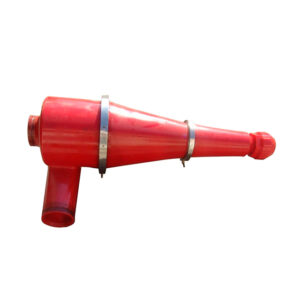

1. The desanding cyclone is made of highly wear-resistant polyurethane material, which has a longer service life;

2. The connection method is clamp type, which is convenient for installation and disassembly;

3. The underflow screen type can be replaced according to requirements.

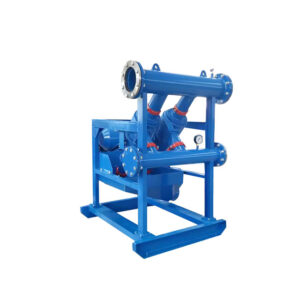

Desander, also known as hydrocyclone desander, is a secondary Solid-liquid Separation device in the drilling fluid solids control system, used to stabilize and regulate the drilling mud returned from the wellhead. The HCS series mud desanders produced by HL Petroleum find application in various drilling projects, mainly oil and gas field drilling, geothermal drilling, and trenchless projects. The commonly used desander cyclone is 8”, 10” and 12” in size, to separate solid particles with a size of 44~74 microns in the drilling fluid. According to different user needs, we can produce desanders with or without underflow screens.

desander
Technical Parameters of Desander

>>Send an Enquiry [email protected]<<

Model HCS250S HCS200x2S HCS250x2S HCS300x2S
Processing capacity 50 m3/h 100 m3/h 200 m3/h 240 m3/h
Cyclone diameter 250mm(10″) 200mm(8″) 250mm(10″) 300mm(12″)
Cyclone quantity 1 2 2 2
Separation scale 20～40μm 20～40μm 20～40μm 20～40μm
Motor power 0.5 KW 0.5 KW 0.5 KW 0.75 KW
Application Wells less than 100 meters Horizontal directional drilling 4000m oil drilling Oil drilling over 5000 meters
Matched sand pump SB4x3-15KW SB5x4-22KW SB8x6-55KW SB8x6-75KW
Weight 550KG 750KG 800KG 1100KG
Dimensions 1500x800x1800 mm 1500x1200x1800 mm 1500x1300x1800 mm 1500x1500x1800 mm

Desander parameter notes:

1. Power system selection: 220-240V/ 50Hz, 380-415V/ 50Hz, 440-480V/ 60Hz, 575-600V/ 60Hz

2. Ambient temperature: 30°C (86°F); Design range: -40-50°C (-40-122°F); Noise control: 75-85 dBA

3. You can configure the vibration motor according to customer requirements and choose between explosion-proof and non-explosion-proof models based on industry standards.

4. Underflow screens and cyclones can be selected based on the customer’s purchasing power;

5. Shale shakers can be selected according to customer requirements, iron frame, composite material or flat wave screen;

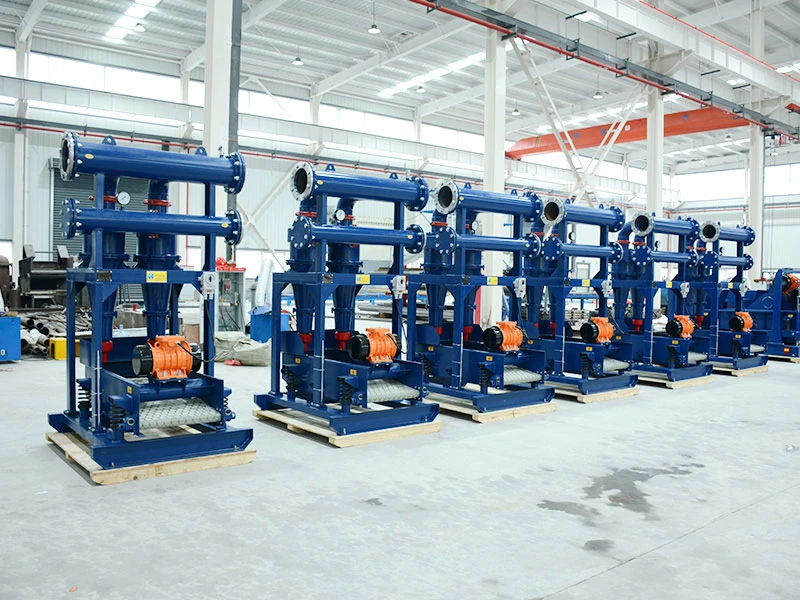

Available products of desander

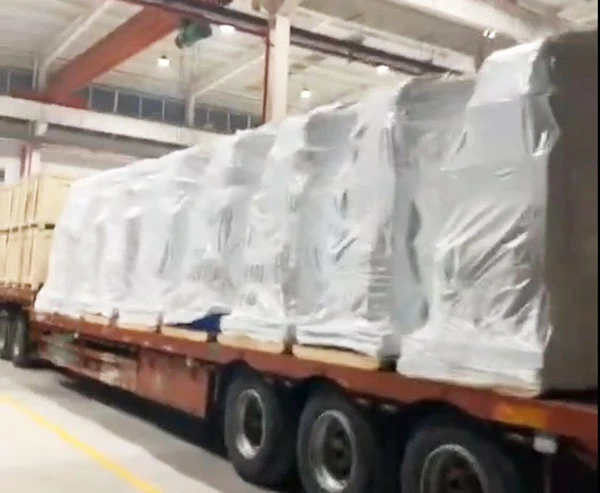

Desander Delivery
