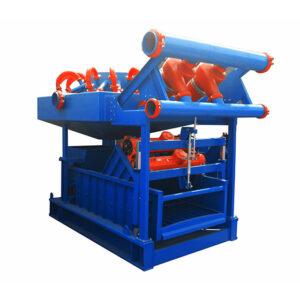

The drilling mud cleaning system is a new type of three- and four-stage solids control equipment for drilling mud, developed to meet the development trends of oil drilling. It combines a cyclone desander, a desilter cyclone, and an underflow vibrating screen into one unit. With its compact structure, small footprint, and powerful functionality, the integrated desander and desilter is an ideal choice for drilling mud solids control.
Product Parameters

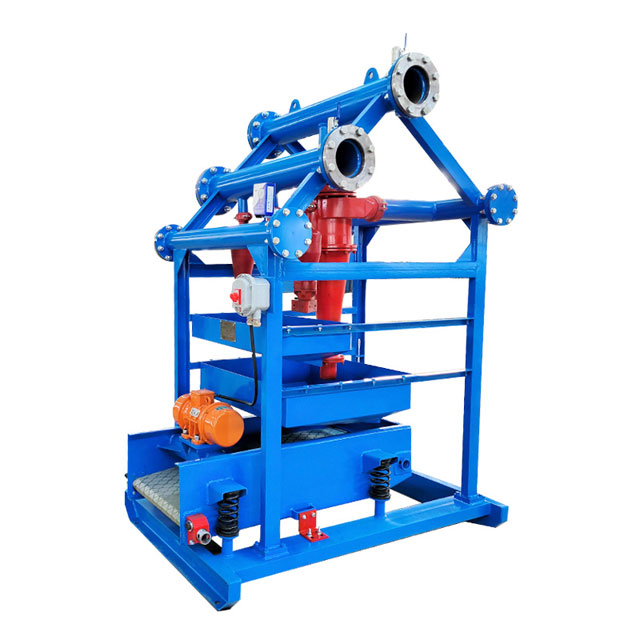

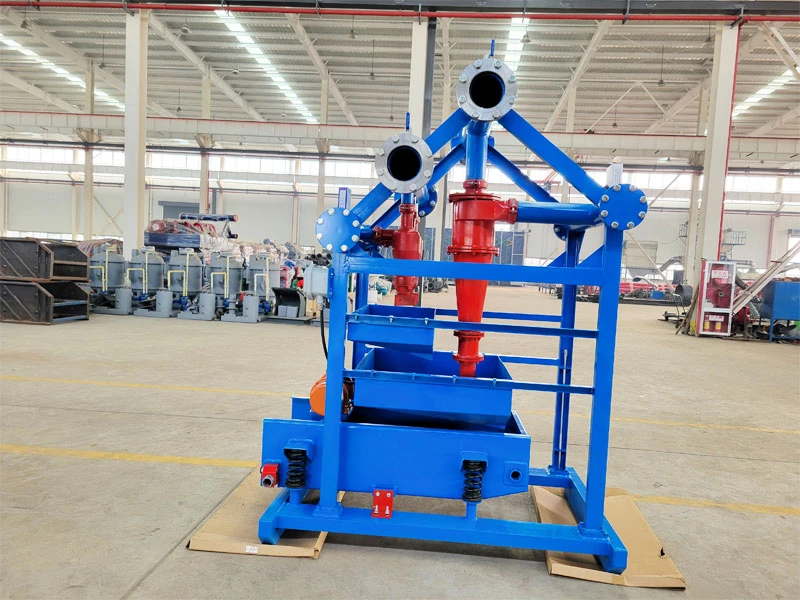

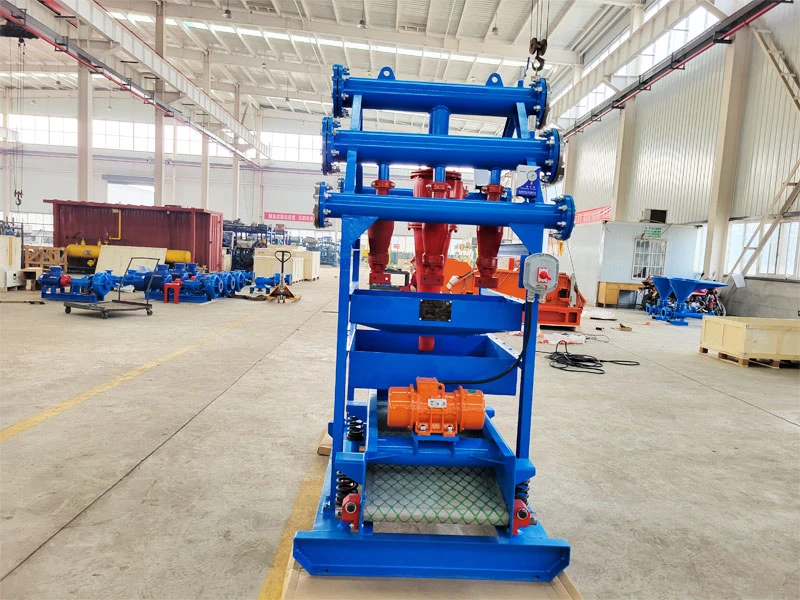

Recently, a customer contacted us. After consulting with our technical team and based on their on-site requirements, we designed this integrated desander and desilter. Its processing capacity is 45m³/h; separation particle size is 15-44μm; cyclone specifications are 100/200mm; number of cyclones is 3+1; and screen size is 0.6*1.6m.
Product structure
The core of the drilling mud cleaning system lies in the design of its multi-stage separation system. Specifically, the equipment consists of three key components: a cyclone desander, a desilter cyclone, and an underflow shale shaker.
1. Cyclone desander: Used to separate larger solids from the mud, preventing wear and clogging of subsequent processing equipment.
2. Cyclone desilter: Further separates small and medium-sized particles, improving mud cleanliness.
3. Underflow shale shaker: Primarily used to process the underflow material after the cyclone desander and desilter cyclone, achieving multiple screening steps and further refining the solids.
This combined design ensures that solids of varying sizes are effectively separated in stages, resulting in clean drilling mud, ensuring a smooth drilling process and long-term equipment life.
The drilling mud cleaning system is a third- and fourth-stage solids control device. Therefore, it plays a connecting role in the entire drilling fluid solids control system, ensuring the efficient operation of the centrifuge. Xi’an HL Petroleum is a manufacturer that sells and manufactures all-in-one sand and mud removal machines. It can produce and supply HQJ series mud cleaners with a full range of specifications. They can be used for mud treatment in multiple fields and industries such as oil drilling, trenchless drilling, and shield tunneling.
