The mud cleaner cleans and treats the drilling fluid used in the drilling process to ensure the performance and use effect of the drilling fluid. The mud cleaner removes harmful solid phases and impurities in the drilling fluid by physical or chemical methods, thereby improving the quality of the drilling fluid and ensuring the smooth progress of the drilling operation.

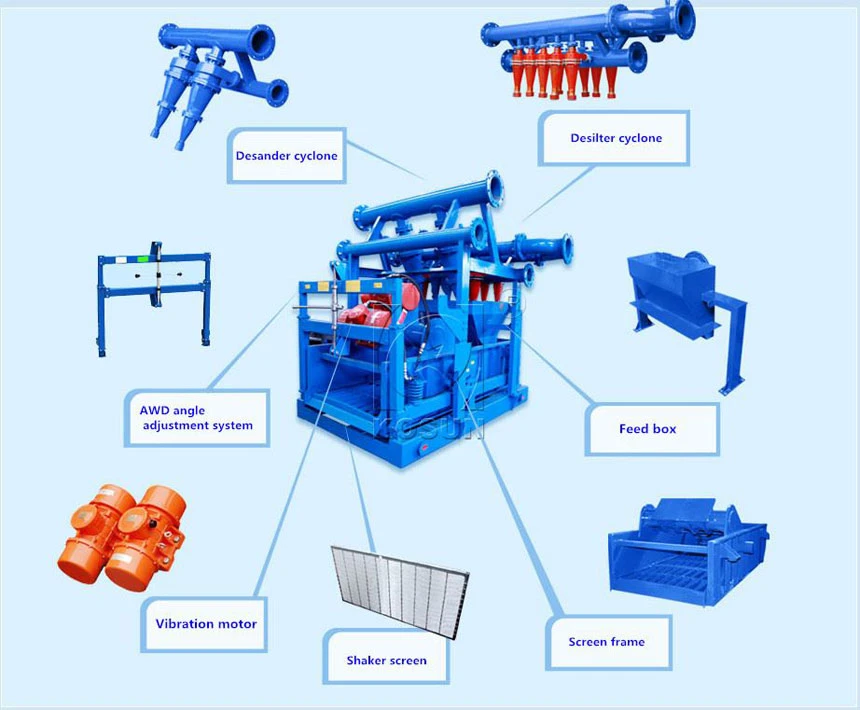

The mud cleaner is the desander and desilter integrated machine.The mud cleaner is the second and third stage solids control equipment for drilling mud. The Mud cleaners have a compact structure, a small footprint, and powerful functions. It is an ideal choice for high-efficiency cleaner equipment for secondary and tertiary solid phase control of drilling mud.
Technical Parameters
Technical Parameters of Mud Cleaner
| Model |
HQJ250-100×6 |
HQJ300-100×8 |
HQJ250×2-100×12 |
HQJ300×2-100×16 |
HQJ250×3-100×20 |
| Capacity |
80m³/h |
100m³/h |
160m³/h |
200m³/h |
240m³/h |
| Motor Power |
2×13KW |
2×13KW |
2×1.5KW |
2×2.2KW |
2×2.5KW |
| Vibration Ampitude |
≥5mm |
≥5mm |
≥5mm |
≥5mm |
≥5mm |
| Shale Shaker Screen |
2×1050×700mm |
2×1050×700mm |
3×1050×700mm |
4×1165×585mm |
5×1165×585mm |
| Size of Desander cone |
250mm(10”) |
300mm(12”) |
250mm(10”) |
300mm(12”) |
250mm(10”) |
| Quantity of Desander cone |
1 |
1 |
2 |
2 |
3 |
| Desander Separation Particle Sze |
40~100μm |
50~150μm |
40~100μm |
50~150μm |
40~100μm |
| Diameter of Desilter cones |
100mm(4") |
100mm(4") |
100mm(4") |
100mm(4") |
100mm(4”) |
| Quantity of desilter cyclones |
6 |
8 |
12 |
16 |
20 |
| Desilter Separation Particle Size |
15～44μm |
15～44μm |
15～44μm |
15～44μm |
15～44μm |
| Supporing centrifugal pump |
SB4×3-15KW |
SB5×4-22KW |
SB6×5-37KW |
SB8×6-55KW |
SB8×6-75KW |
| Weight |
1800KG |
2000KG |
2800KG |
3100KG |
3500KG |
| Dimension:L×WxH |
2565×1920×2670mm |
2565×1920×2670mm |
2865×1920×2670mm |
3065×1920×2700mm |
3365×1920×2700mm |
>Send an Enquiry [email protected]<<
HL Petroleum is a professional mud cleaner solids control equipment manufacturer in China. Contact us for information about the prices and delivery time of drilling mud cleaning system.
