HYQ series mud gas separator is a special equipment for primary degassing of gas-invaded drilling fluid, mainly used to remove large bubbles with a diameter of about ≥φ3mm in gas-invaded drilling fluid. These large bubbles refer to the expansive gas in the drilling fluid that mostly fills a certain section of the wellbore annulus. If not removed, it is easy to cause well kicks and even blowout accidents; the liquid-gas separator produced by HL Petroleum can be used in combination with the electronic ignition device to effectively treat gas-invaded drilling fluid.
HL Petroleum is a professional manufacturer of Poor boy separators. At present, the mud gas separators we produce mainly include 3 types according to their structure: fixed base type, lifting type, and folding type. Except HL Petroelum own brand, we also provide you with customized services, design suitable structures and Cylinder sizes according to your requirements.
>>Send an Enquiry [email protected]<<
Mud Gas Separator Technical Parameters
| Model | HYQ800 | HYQ1000 | HYQ1200 | HYQ1400 |
| Liquid handling capacity | 6000m³/d | 7000m³/d | 8000m³/d | 8000m³/d |
| Gas handling capacity | 100000m³/d | 120000m³/d | 147000m³/d | 147000m³/d |
| Cylinder Diameter | 800mm | 1000mm | 1200mm | 1400mm |
| Cylinder Volume | ≥1.6m³ | ≥3.0m³ | ≥4.0m³ | ≥6.0m³ |
| Max. Working Pressure | 1.0MPa | 1.0MPa | 1.0MPa | 1.0MPa |
| Gas Output Diameter | 159(6’’)mm | 219(8’’)mm | 219(8’’)mm | 219(8’’)mm |
| Liquid Output Diameter | 219(8’’)mm | 219(8’’)mm | 273(10’’)mm | 273(10’’)mm |
| Inlet Diameter | 133(5’’)mm | 133(5’’)mm | 133(5’’)mm | 133(5’’)mm |
| Dimension | 1900X1900X5700mm | 2150X1960X4900mm | 2400X2000X6130mm | 2700X2600X7400mm |
| Weight | 1900KG | 2300KG | 3500KG | 3800KG |
HL Petroleum support OEM services. If other specification of poor boy degasser you are looking for, please >>Send an Enquiry [email protected]<<

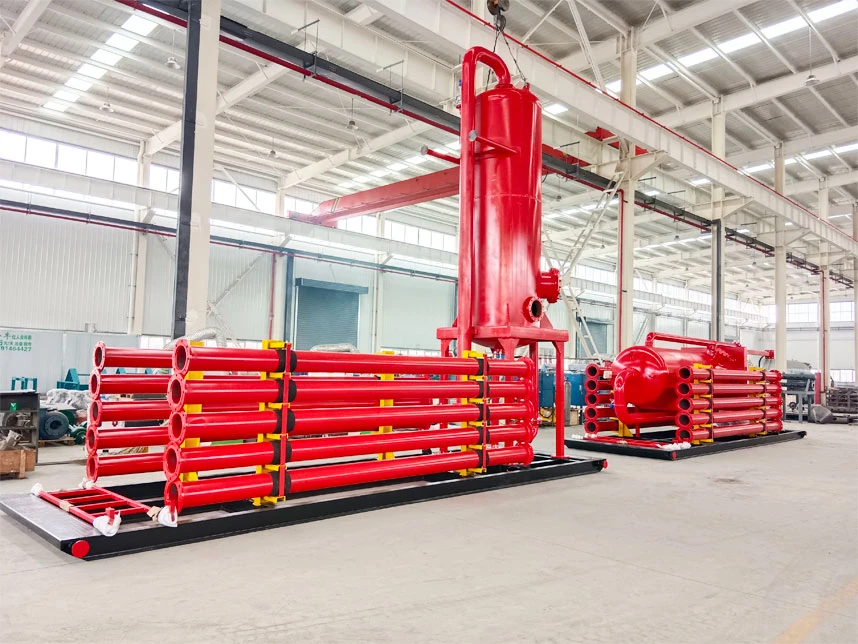

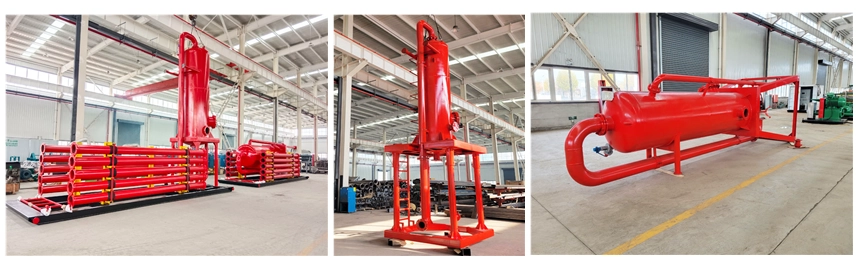

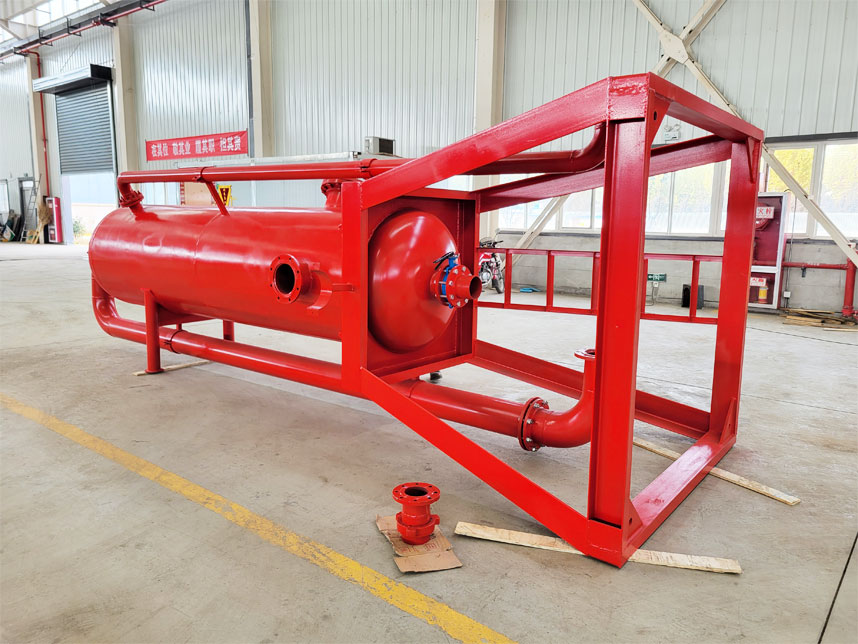

Finished Products of Mud Gas Separator

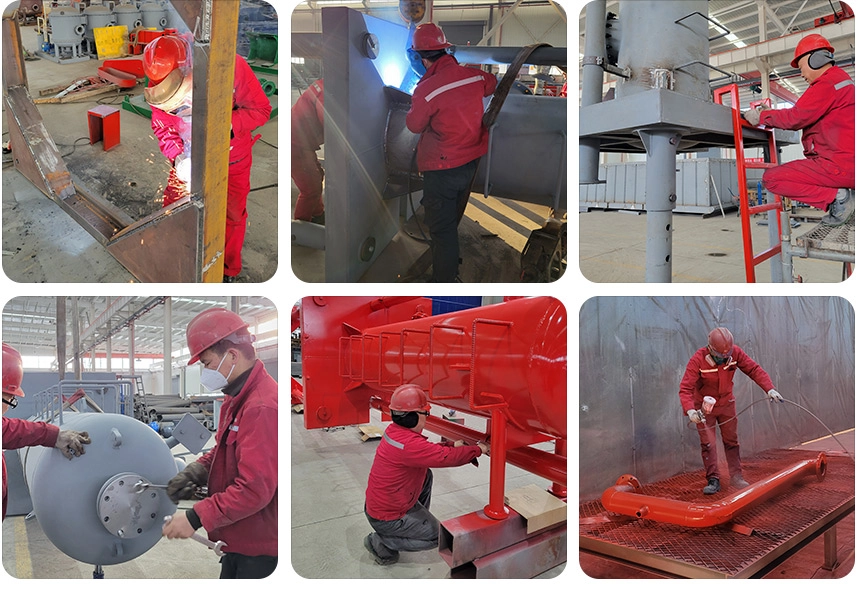

How does HL Petroleum manufacture Mud Gas Separator?

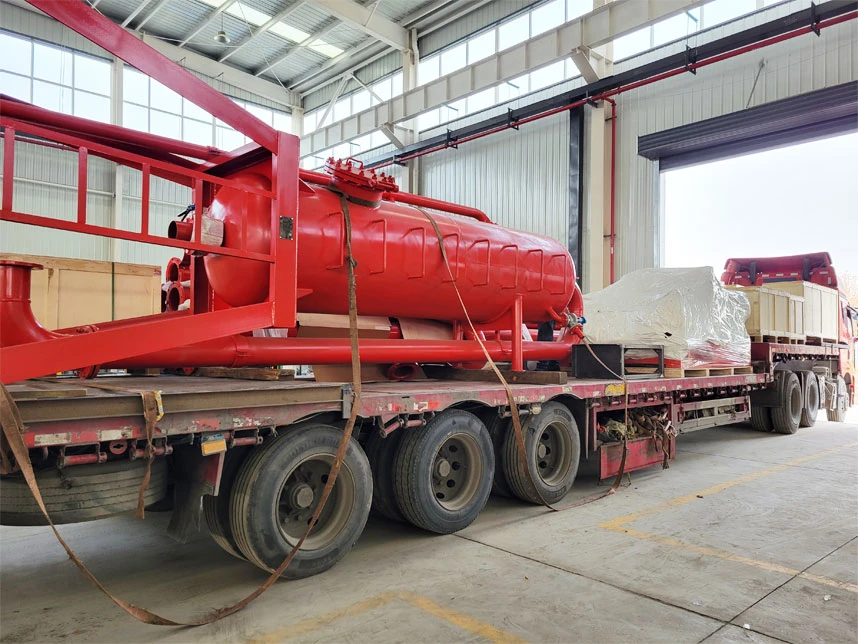

Mud Gas Separator Delivery
