Our company is a professional drilling equipment manufacturer specializing in the production of various drilling-related equipment. The rig mats we produce feature high strength, excellent load-bearing capacity, good interchangeability, convenient transportation, low operating costs, quick installation, strong shock absorption, resistance to cracking, water resistance, corrosion resistance, deformation resistance, long service life, and easy recycling and storage.
Product Introduction
Rig mats are modular support platforms composed of a steel framework and timber inserts. They serve as portable structural support foundations and are widely used as base platforms for oil drilling rigs and other heavy equipment.
The timber used in our rig mats is primarily high-quality larch, which is harder and more water-resistant than red pine. The wood is precision-machined into dimensions of 4m × 0.24m × 0.17m and 3m × 0.24m × 0.17m. After processing, the timber undergoes preservative treatment in accordance with the Chinese national standard for railway sleepers (GB9221-88).
Key material specifications include:
- Oil impregnation depth greater than 10 mm
- Local compressive strength across the grain exceeding 40 kg/cm²
- All steel components are manufactured from standard structural steel
The rig mats offer the following advantages:
- High strength
- Excellent load-bearing capacity
- Good interchangeability
- Easy transportation
- Low operating cost
- Fast and convenient installation
- Superior vibration absorption
- Crack resistance
- Water resistance
- Corrosion resistance
- No deformation
- Long service life
- Easy recycling and storage
Applications of Rig Mats
1. Drilling Rig Foundations
Suitable for drilling rigs with drilling depths ranging from 1,000 m to 7,000 m operating in various environments, including:
- Plains
- Hills
- Deserts
- Plateaus
- Beaches
- Marshlands
2. Equipment Foundation Support
Here are the various drilling site facilities and equipment that commonly utilize rig mats as foundational support:
- Accommodation camps
- Oil storage tanks
- Water tanks
- Mud tanks
- Mud purification systems
- Generator houses
- SRC houses
- MCC houses
- Mud pumps
These foundations help ensure long-term stability and safe operation of the equipment.
3. Steel-Wood Equipment Bases
Steel-wood foundations are commonly used as support bases for:
- Derrick substructures
- Mud pumps
- Mud tanks
- Solids control tanks
- Generator houses
- SRC houses
- Oil tanks
- Water tanks
- Other drilling site equipment
The system provides easy installation, rapid deployment, durability, and long service life.
Structural Design of Rig Mats

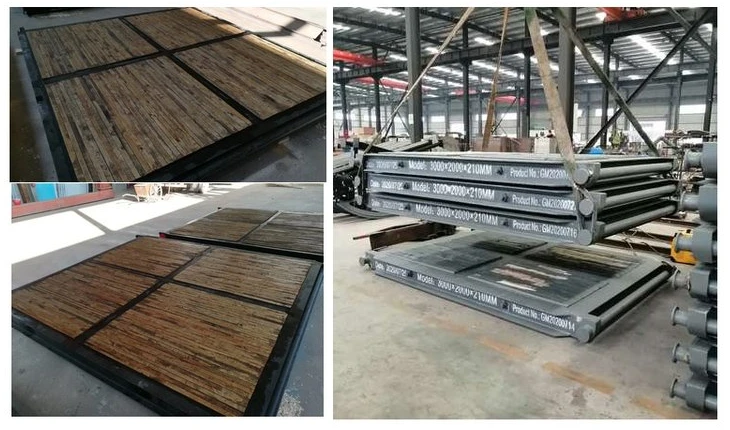

The steel-wood foundation frames manufactured by our company are primarily fabricated from welded H-beams. The frame is filled with high-quality larch or pine timber that has undergone preservative treatment and is securely fastened using M39 extended bolts.
Customers may select timber materials according to project requirements.
After precision machining, the timber is treated according to the GB9221-88 railway sleeper preservation standard, ensuring:
- Oil penetration depth greater than 10 mm
- Local compressive strength across the grain greater than 40 kg/cm²
- Additional anti-termite and insect protection treatment
This construction provides excellent structural integrity and durability in harsh drilling environments.
Technical Parameters of Rig Mats
| Model | Length（mm） | Width（mm） | Height（mm） | Weight（kg） |
| HGM3220 | 3000 | 2000 | 200 | 1200 |
| HGM4220 | 4000 | 2000 | 200 | 1600 |
| HGM5220 | 5000 | 2000 | 200 | 2000 |
| HGM3218 | 3000 | 2000 | 180 | 1080 |
| HGM4218 | 4000 | 2000 | 180 | 1440 |
| HGM5218 | 5000 | 2000 | 180 | 1800 |
| HGM3218 | 3000 | 2000 | 160 | 960 |
| HGM4218 | 4000 | 2000 | 160 | 1280 |
| HGM5218 | 5000 | 2000 | 160 | 1600 |
Product Advantages
Our rig mats utilize a heavy-duty H-beam steel framework combined with high-quality preservative-treated larch or pine timber.
Key benefits include:
- Exceptional compressive strength
- Easy handling and transportation
- Multiple standard sizes available
- Customizable dimensions and load capacities
- Flexible modular design
- Suitable for various drilling site layouts
- Long-term durability under harsh field conditions
Different mat sizes combine freely to create customized drilling site foundations and equipment platforms.
Rig Mats Display
Our rig mats are widely used in oilfield drilling operations, workover projects, pipeline construction, and other heavy-equipment support applications. Various dimensions and configurations are available to meet different project requirements.
Installation and Usage Instructions
Rig mats are suitable for a wide range of ground conditions and are particularly effective in soft soil environments.
Because their large contact area significantly reduces foundation requirements, the mats can lie directly on the ground surface.
Ground Requirements
Before installation, the following conditions should be met:
- Ground bearing capacity ≥ 0.06 MPa
- Ground surface flatness deviation ≤ 40 mm
Installation Recommendations
Before placing equipment on the rig mats:
- Clear debris, rocks, and obstacles from the installation area.
- Ensure the ground surface is relatively level.
- Position the rig mats according to the equipment foundation layout.
- Verify stability before placing heavy equipment.
Proper installation helps ensure equipment stability, operational safety, and extended service life of both the rig mats and drilling equipment.
