In oilfield drilling operations, maintaining stable drilling fluid performance is critical for well control, cuttings transport, lubrication, and overall drilling efficiency. Two commonly used pieces of equipment in a solids control system are the jet mud mixer and the mud agitator. Although both are related to drilling fluid mixing, they serve very different purposes and operate using different principles.
Understanding the differences between a jet mud mixer and a mud agitator helps drilling contractors choose the right equipment configuration for efficient mud management.
What Is a Jet Mud Mixer?
A jet mud mixer is a high-efficiency drilling fluid mixing device designed to rapidly prepare and weight drilling mud. It typically consists of:
- Venturi hopper (mud hopper)
- Centrifugal pump or shear pump
- Pipeline manifold
- Base skid
The jet mud mixer works based on the Venturi effect. High-speed fluid flow generated by the pump creates negative pressure inside the hopper, allowing powdered additives such as bentonite, barite, and polymers to be quickly sucked into the fluid stream and mixed evenly.
Main Functions of a Jet Mud Mixer
- Rapid mud preparation
- Mixing drilling additives
- Adjusting mud density and viscosity
- Preventing lump formation
- Improving drilling fluid hydration efficiency
- Supporting continuous drilling operations
Jet mud mixers are widely used in:
- Oil & gas drilling rigs
- HDD (Horizontal Directional Drilling)
- CBM drilling
- Geothermal drilling
- Tunnel and trenchless projects

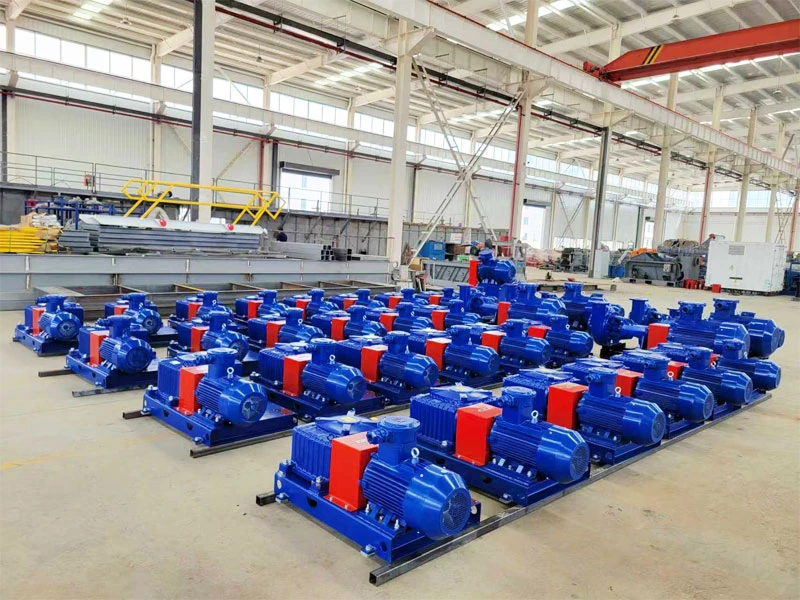

What Is a Mud Agitator?
A mud agitator is a mechanical stirring device installed on top of mud tanks. It uses an electric motor and impeller shaft to continuously stir drilling fluid inside the tank, preventing solids from settling.
The typical structure includes:
- Explosion-proof motor
- Gear reducer
- Shaft
- Impeller blades
- Mounting base
As the impeller rotates, it creates vortex flow inside the mud tank to keep barite, cuttings, and other solids evenly suspended.
Main Functions of a Mud Agitator
- Preventing sedimentation
- Maintaining uniform mud properties
- Keeping solids suspended
- Reducing mud stratification
- Protecting pumps from blockage
- Supporting stable circulation
Mud agitators are essential in:
- Active mud tanks
- Suction tanks
- Mixing tanks
- Storage tanks
Jet Mud Mixer vs Mud Agitator: Key Differences
| Feature | Jet Mud Mixer | Mud Agitator |
|---|---|---|
| Working Principle | Venturi jet mixing | Mechanical impeller stirring |
| Main Purpose | Rapid mud preparation & additive mixing | Continuous mud suspension |
| Installation Location | Mud mixing skid/system | Top of mud tank |
| Power Source | Centrifugal pump or shear pump | Electric motor |
| Mixing Speed | Very fast | Continuous low-speed stirring |
| Suitable for Additives | Yes | Limited |
| Prevents Settling | Partially | Yes |
| Typical Use Stage | Mud preparation stage | Mud circulation/storage stage |
| Shear Capability | High | Low |
| System Role | Active mixing equipment | Maintenance mixing equipment |
How Jet Mud Mixers Work
When drilling fluid flows through the Venturi hopper at high speed, a vacuum area forms inside the funnel. Dry additives are sucked into the fluid stream and immediately mixed through turbulence and shear force.
This process offers several advantages:
- Fast mixing speed
- Uniform mud properties
- Reduced material waste
- Lower labor requirements
- Better hydration of bentonite and polymers
Jet mud mixers are especially effective when preparing large volumes of drilling fluid quickly.
How Mud Agitators Work
Mud agitators continuously rotate impeller blades inside the mud tank, generating circulation flow that keeps solids suspended. Their primary goal is not rapid mixing, but maintaining drilling fluid stability over long operating periods.
Without proper agitation:
- Barite settles at the tank bottom
- Mud density becomes inconsistent
- Pump suction problems occur
- Solids control efficiency decreases
For this reason, mud agitators are considered standard equipment in modern solids control systems.
Which Equipment Is More Important?
The answer depends on the application.
Choose a Jet Mud Mixer If You Need:
- Fast mud preparation
- Efficient additive mixing
- Density adjustment
- Large-scale mud treatment
- High-efficiency drilling fluid shearing
Choose a Mud Agitator If You Need:
- Long-term mud circulation
- Prevention of solids settling
- Stable tank conditions
- Continuous suspension of weighting materials
In most drilling projects, both systems are used together because they perform complementary functions.
Can You Use One Without the Other?
Technically yes, but operational efficiency may suffer.
A jet mud mixer alone cannot continuously prevent sedimentation inside large mud tanks. Similarly, a mud agitator alone cannot efficiently mix drilling additives or rapidly prepare drilling fluid.
Modern drilling rigs usually combine:
- Jet mud mixers for mud preparation
- Mud agitators for mud maintenance
- Mud guns for dead-corner cleaning
This integrated setup ensures stable drilling fluid performance throughout the drilling process.
Applications in Solids Control Systems
Jet Mud Mixer Applications
- Weighting drilling mud
- Polymer mixing
- Bentonite hydration
- Chemical additive blending
- HDD mud recycling systems
Mud Agitator Applications
- Mud circulation tanks
- Suction compartments
- Reserve tanks
- Active drilling fluid systems
How to Choose the Right Equipment
When selecting a jet mud mixer or mud agitator, consider:
For Jet Mud Mixers
- Mixing capacity
- Pump flow rate
- Hopper design
- Mud density requirements
- Shear performance
For Mud Agitators
- Tank dimensions
- Mud viscosity
- Impeller diameter
- Motor power
- Shaft length
Proper sizing is critical to ensure optimal drilling fluid performance and lower operational costs.
Conclusion
Although jet mud mixers and mud agitators are both essential drilling fluid mixing equipment, they serve completely different purposes in a solids control system.
A jet mud mixer is designed for rapid mud preparation and additive blending, while a mud agitator focuses on maintaining uniform mud properties and preventing solids settlement inside tanks.
For modern drilling operations, combining both systems provides the best results:
- Faster mud preparation
- Stable drilling fluid performance
- Reduced downtime
- Improved drilling efficiency
