Screen Installation
 |
 |

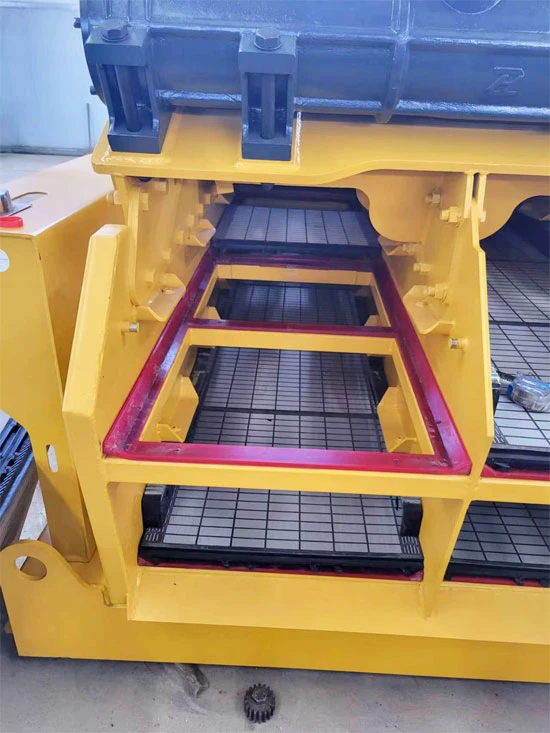

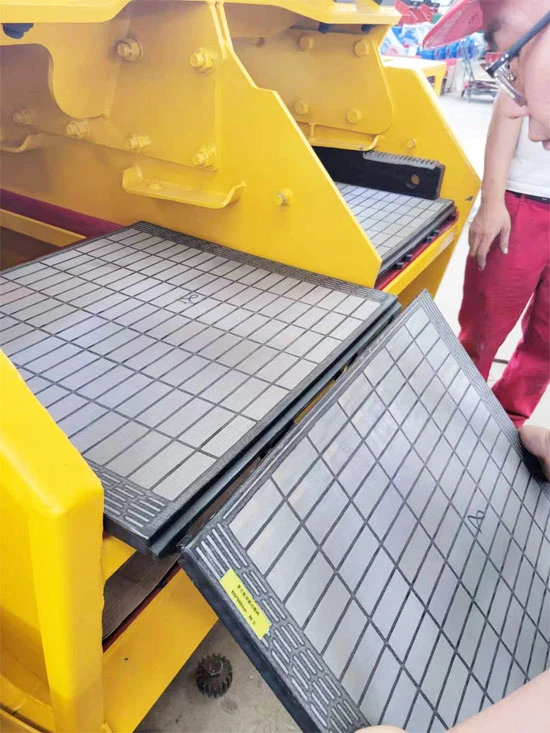

| 1. Install the screen sealing frame. | 2. Install the first screen |
 |
 |

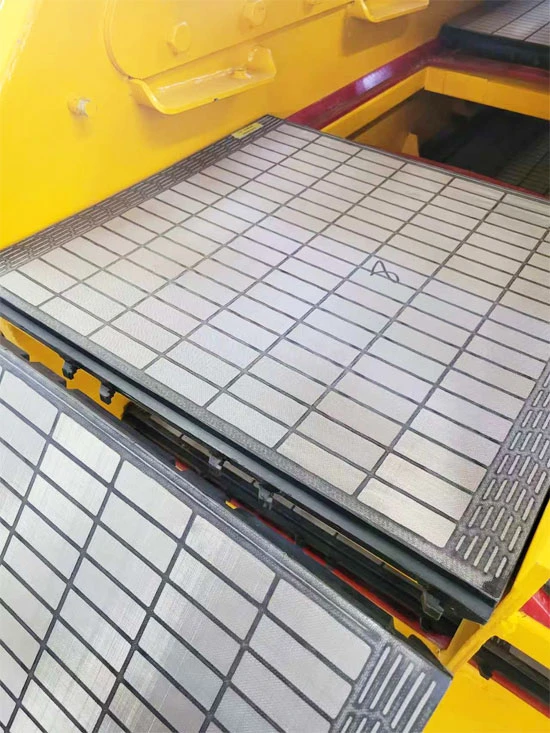

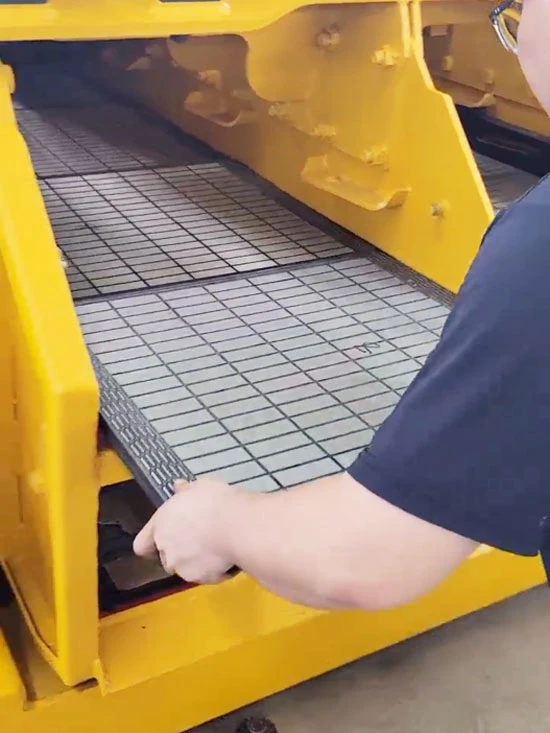

| 3. Align with the locking mechanism of the first screen | 4. Slide in the second screen |
 |
 |

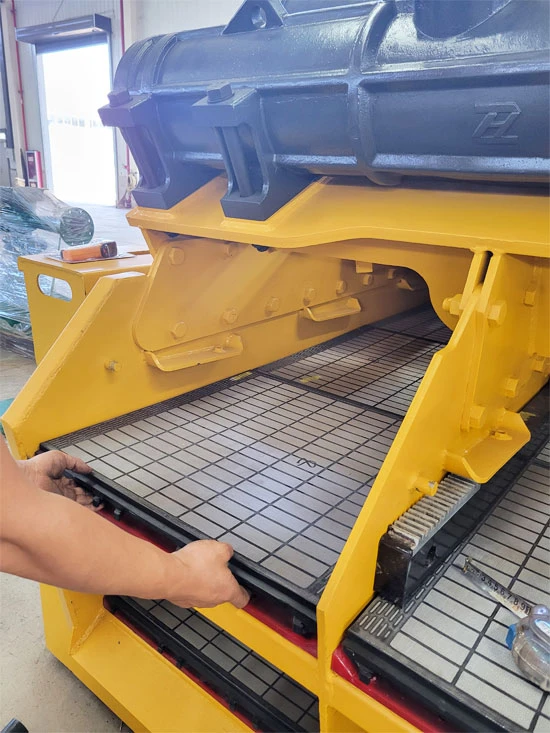

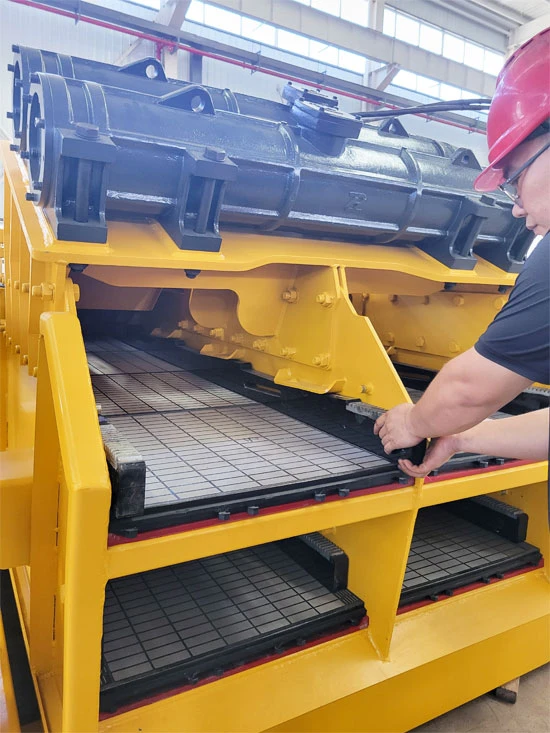

| 5. Install the fourth screen following the steps above | 6. Insert the wedge block into the screen and press it tight |
 |
 |

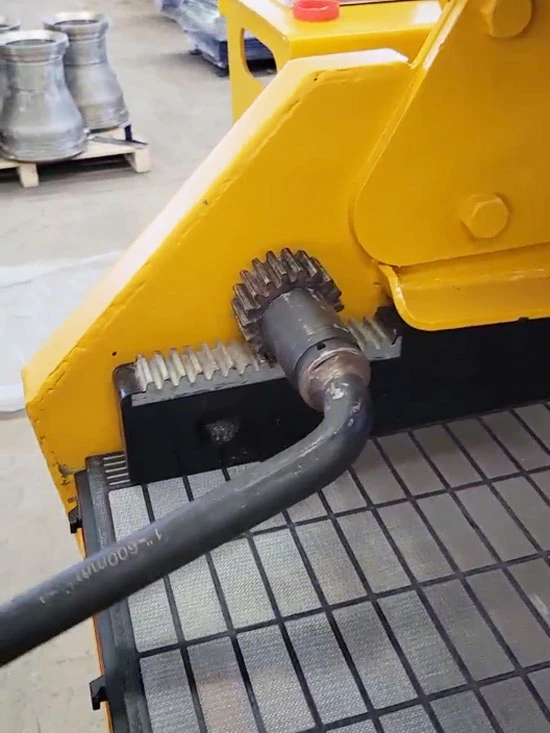

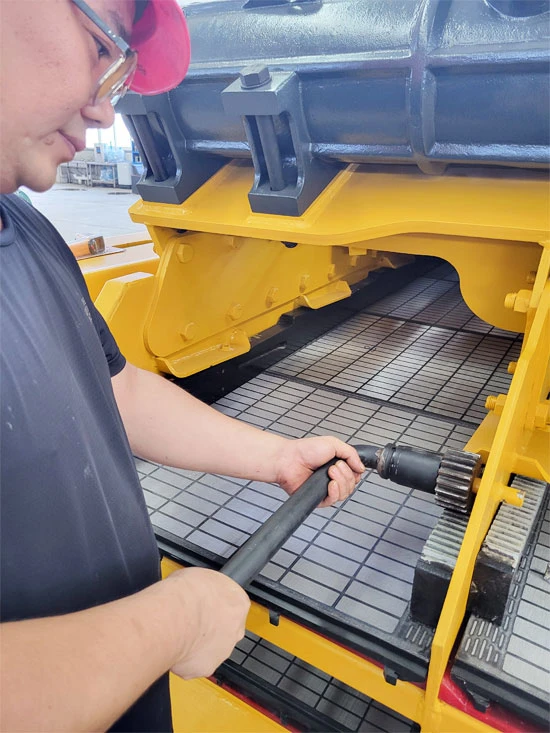

| 7. Install the gear and fit the 90-degree wrench onto it | 8. The clamping block moves forward and presses down to secure the screen |
Install the screens for the other channels by following the steps above. The mesh size is determined by the on-site mud engineer based on drilling process requirements.
Screen Removal
The procedure for removing the screens is the reverse of the installation process.
Related Products：shaker screens manufacturers
FAQ
1. How often should a mud shale shaker screen be replaced?
The replacement frequency depends on operating conditions.
Normally, a shaker screen may need replacement when:
- Screen mesh is damaged or torn
- Separation efficiency decreases
- Excessive drilling fluid remains on cuttings
- Screen tension becomes loose
- Blinding or plugging occurs frequently
In harsh drilling environments, operators may need to replace screens more frequently due to high abrasive solids content.
2. How can I improve the service life of a shale shaker screen?
To extend screen life:
- Install the screen correctly
- Avoid excessive vibration caused by improper settings
- Clean screens regularly
- Maintain proper drilling fluid properties
- Prevent large metal objects from entering the shaker
- Check screen tension frequently
Proper maintenance can significantly reduce screen replacement costs.
